240,000 capsules per hour • Size 00–5 • GMP-ready • US/Canada service

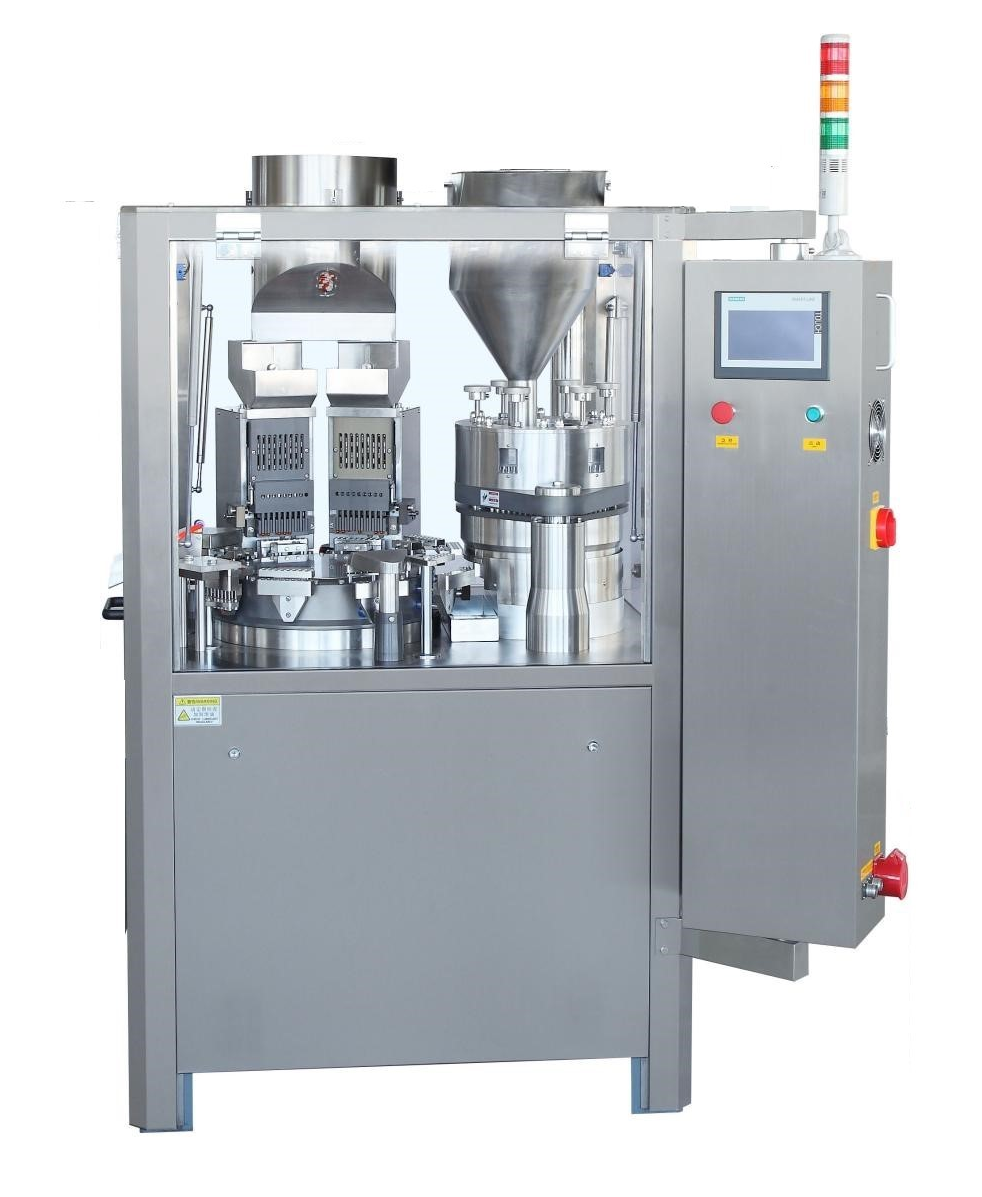

Built for high-volume nutraceutical and pharmaceutical production, the NJP-4000C delivers continuous rotary filling with pharma-grade tolerances, fast changeovers, and low maintenance. Pair it with polishing, counting/packaging, and dust control to build a complete line.
Key benefits
-
Throughput: up to 240,000 caps/hour for commercial scale runs
-
Precision: stable dosing with typical fill accuracy ≤ ±3% (powder dependent)
-
Flexibility: supports capsule sizes 00–5 with quick-swap change parts
-
Uptime: continuous rotary design with centralized lubrication and easy access
-
Compliance-ready: IQ/OQ documentation, GMP practices, UL/CE component references
-
Local support: US warehouse parts and North America engineers
Specs at a glance
NJP-4000C Specifications
| Item |
Value |
| Model |
NJP-4000C |
| Output |
Up to 240,000 capsules/hour |
| Supported Sizes |
00, 0, 1, 2, 3, 4, 5 (change parts) |
| Fill Media |
Powders, granules, pellets (with optional kits) |
| Typical Fill Accuracy |
≤ ±3% (material dependent) |
| Operation |
Continuous rotary, automatic feed, separate fill/lock stations |
| Power |
3-phase (e.g., 220–480V, 50/60Hz) — configured to site |
| Air Requirement |
Clean, dry compressed air (factory standard) |
| Compliance |
GMP-ready, IQ/OQ docs, UL/CE component references |
| Changeover |
Quick-swap size kits; tool-assisted adjustments |
| Line Integration |
Polisher, metal check, counter, bottle line, deduster |
| Warranty |
1 year; extended plans available |
What’s included
- Machine with standard tooling for one capsule size (00–5)
- Start-up assistance + remote operator training
- Basic spare-parts kit and maintenance checklist
- Documentation pack (manuals, IQ/OQ templates on request)
Recommended add-ons
- Capsule polisher & metal check
- Dust control / vacuum loader
- Electronic counter + bottle unscrambler/labeler
- Inline checkweighing and vision options
Need empty capsules? Shop gelatin & HPMC capsules matched to your size.
FAQs
What output can we expect in production?
Rated up to 240,000 caps/hour. Actual throughput depends on formula flow, tamping settings, and operator workflow.
Which capsule sizes are supported?
00–4 with corresponding change parts. Size kits are quick to swap for minimal downtime.
Do you provide installation and validation support?
Yes—start-up assistance is included, with IQ/OQ documentation available upon request.
What utilities are required?
3-phase power (configured to your facility) and clean, dry compressed air.
Can this integrate with our existing counting/packaging line?
Yes—the NJP-4000C integrates with polishing, metal checking, electronic counters, bottle lines, and dust control.
Looking for semi-automatic instead? See our JTJ-V Semi-Automatic Capsule Filler.
