CAPSULE FINISHING & POLISHING

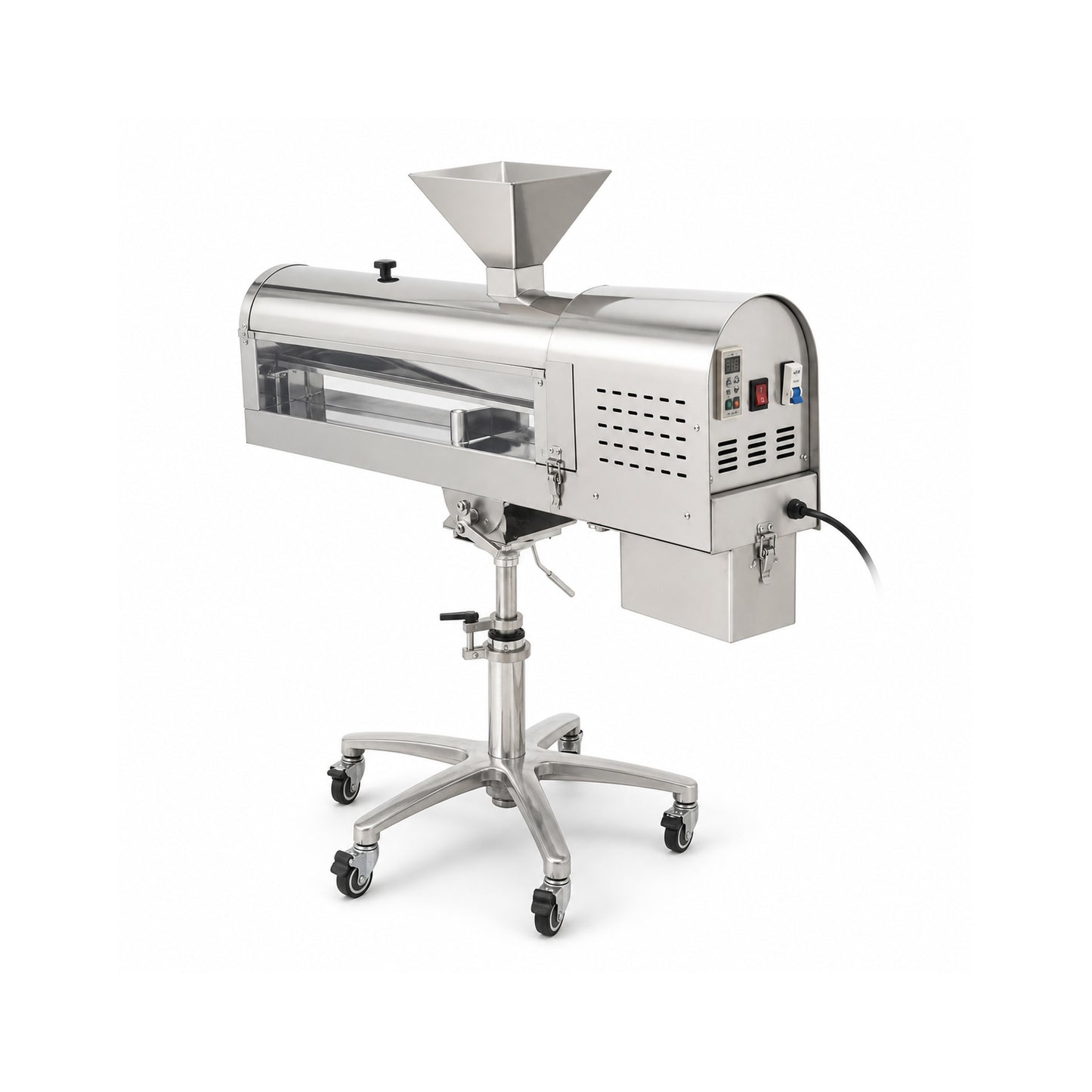

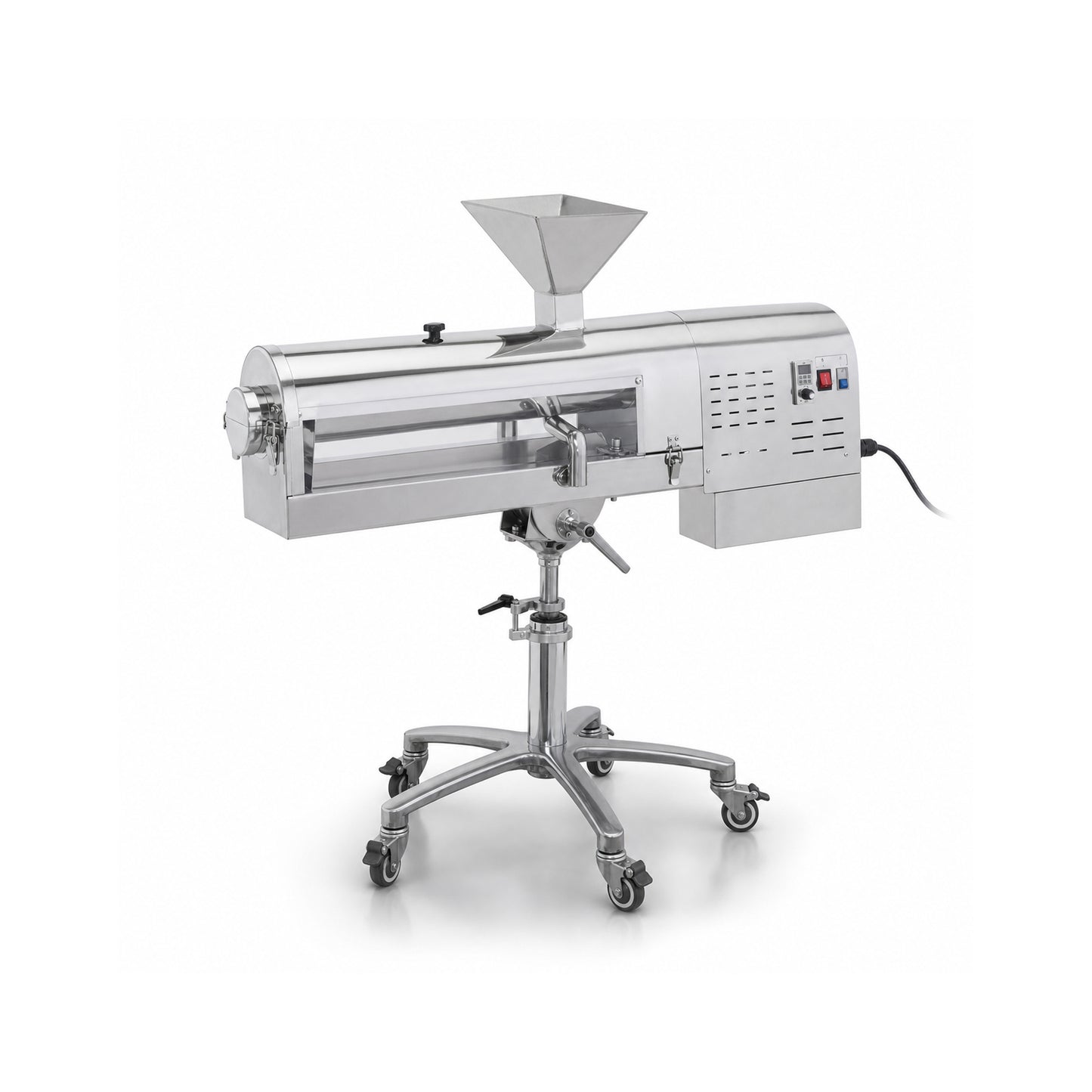

JPG-2 Capsule Polishing Machine
Compact stainless finishing unit with infinitely variable speed — polishes filled capsules, removes surface powder, and eliminates static, at a nominal 139,000 capsules per hour.
View Specs
FAQs
Request Quote
⚡
139,000 Caps/Hour
Nominal rated output for continuous finishing.
🎛️
Variable Speed
Inverter-controlled motor for smooth, adjustable operation.
🔄
No Mold Changes
Suitable for all capsule sizes without changing tooling.
🇺🇸
U.S. Support
Local engineers, spare parts, and fast response.
Capsule finishing for clean, presentable product
The JPG-2 capsule polisher is a compact finishing unit for capsule production workflows. Driven by infinitely variable speed control, it polishes filled capsules, removes residual powder from the capsule surface, and eliminates static electricity — improving the surface finish of finished product to meet the hygienic standards of the pharmaceutical industry. No mold changes are required, so the machine runs across capsule sizes without tooling swaps.
- Nominal 139,000 capsules per hour
- Infinitely variable speed via inverter control
- Stainless steel build; mesh cartridge and brush join by compression fitting for fast, thorough cleaning
- Spiral feeding in-and-out accessory with imported polishing brush
- Caster-mounted base for easy repositioning on the line
Technical specifications
| Model |
JPG-2 |
| Type |
Capsule polishing machine |
| Output |
139,000 capsules/hour (nominal) |
| Capsule sizes |
Suitable for all capsule sizes — no mold change required |
| Speed control |
Infinitely variable (inverter-controlled DC motor) |
| Power supply |
220V 50Hz / 110V 60Hz |
| Power |
0.18 kW |
| Construction |
Stainless steel; compression-fit mesh cartridge and brush |
| Dimensions (L×W×H) |
1025 × 550 × 900 mm |
| Net weight |
40 kg |
| Warranty |
1-year warranty |
| Documentation |
Available upon request |
Output figures are nominal / model-rated. Actual throughput depends on capsule size, fill material, machine configuration, setup, and operator workflow.
JPG-2 main structure

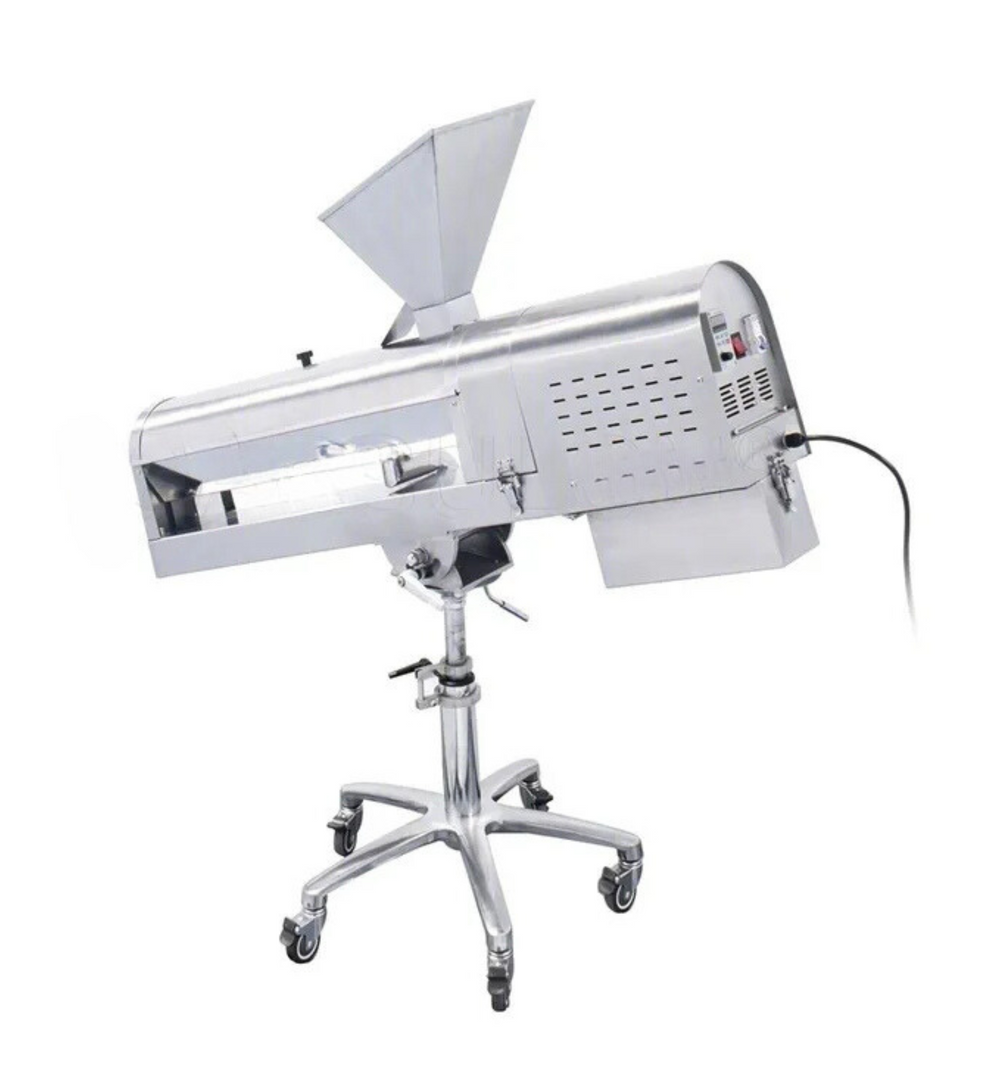

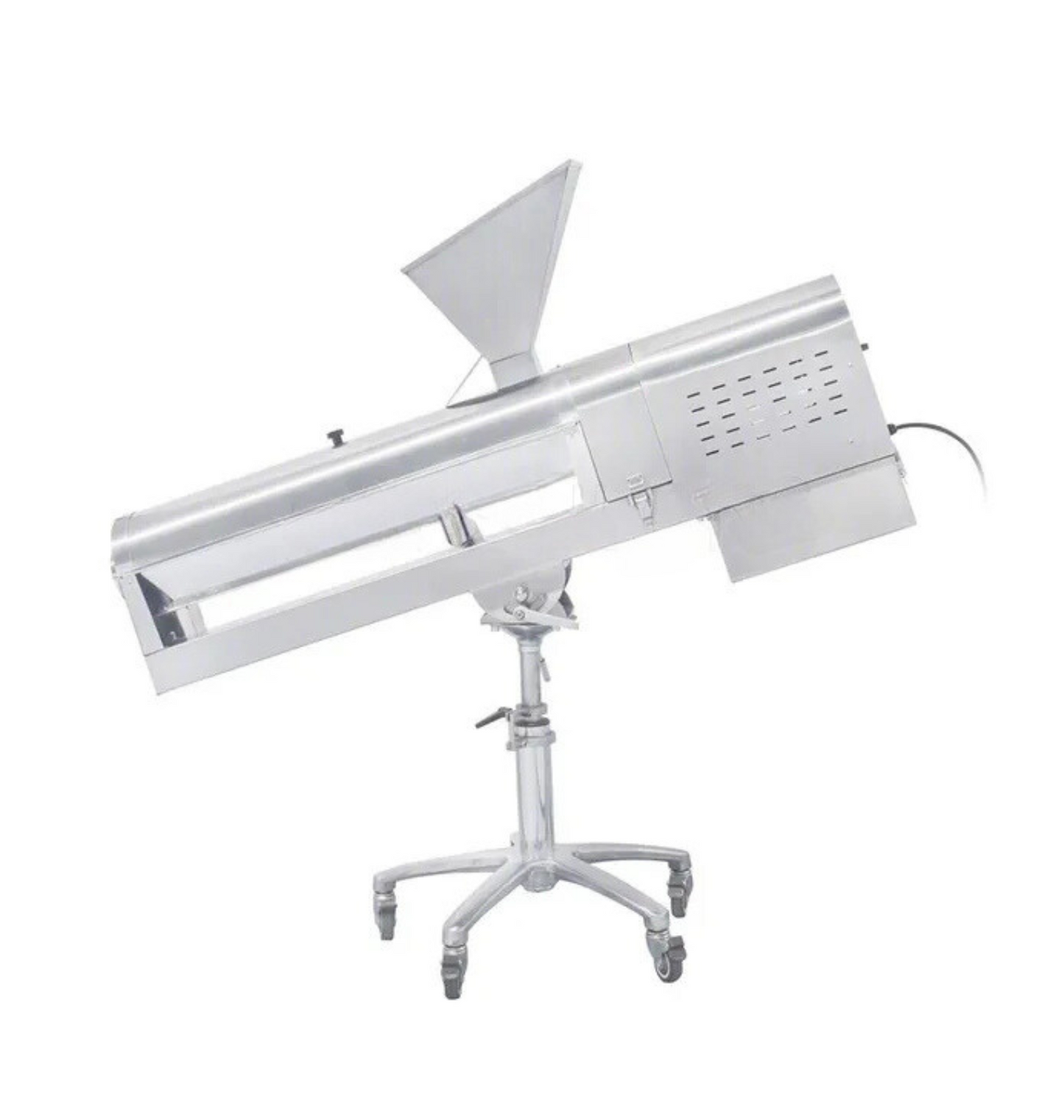

The JPG-2 is built around a feeding hopper, polishing chamber, adjustable frame, discharge outlet, control panel, and mobile support base.

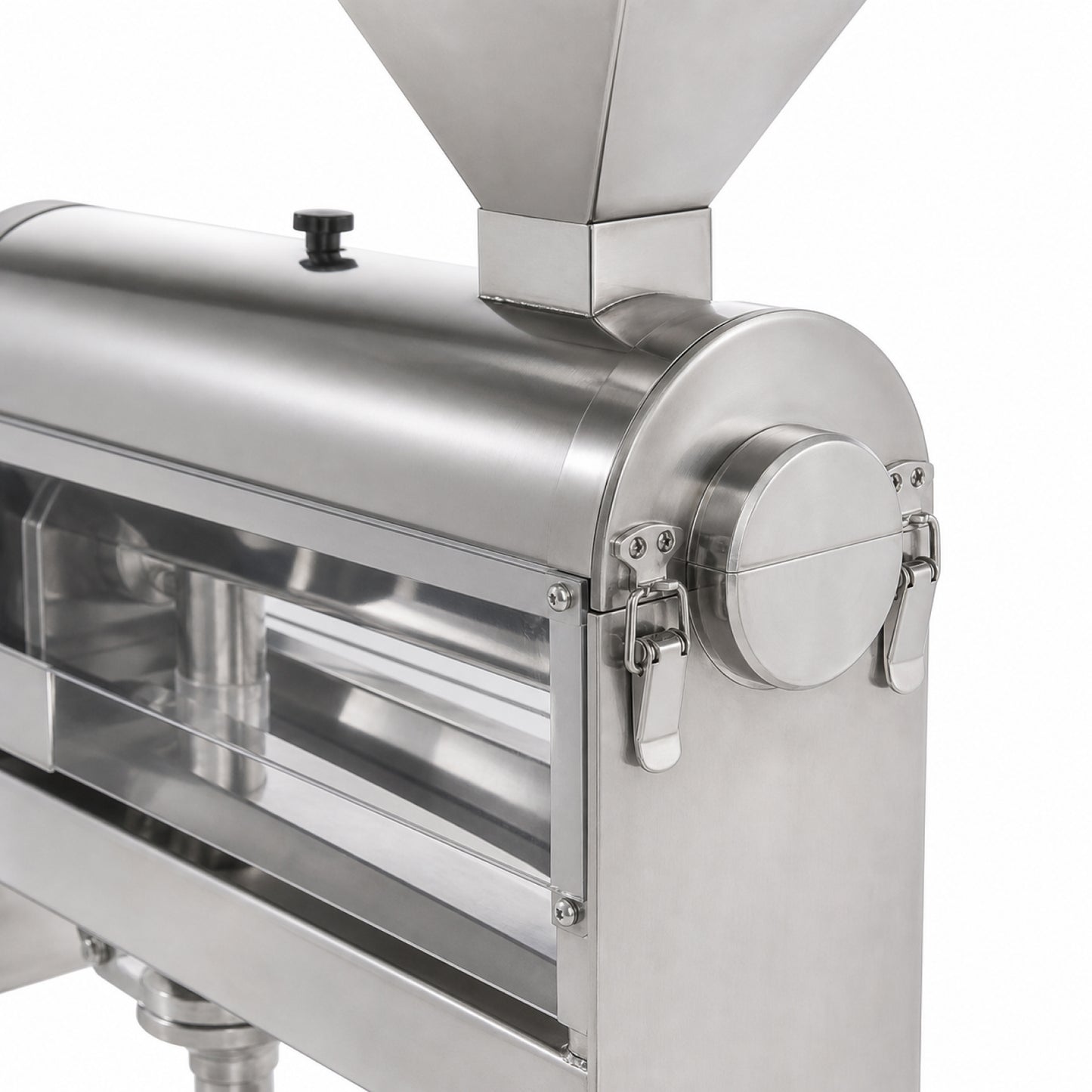

| Feeding Hopper |
Guides capsules into the polishing chamber for continuous processing. |
| Polishing Chamber |
Supports capsule surface cleaning and polishing during operation. |
| Discharge Outlet |
Transfers finished capsules out of the polishing section for collection or downstream handling. |

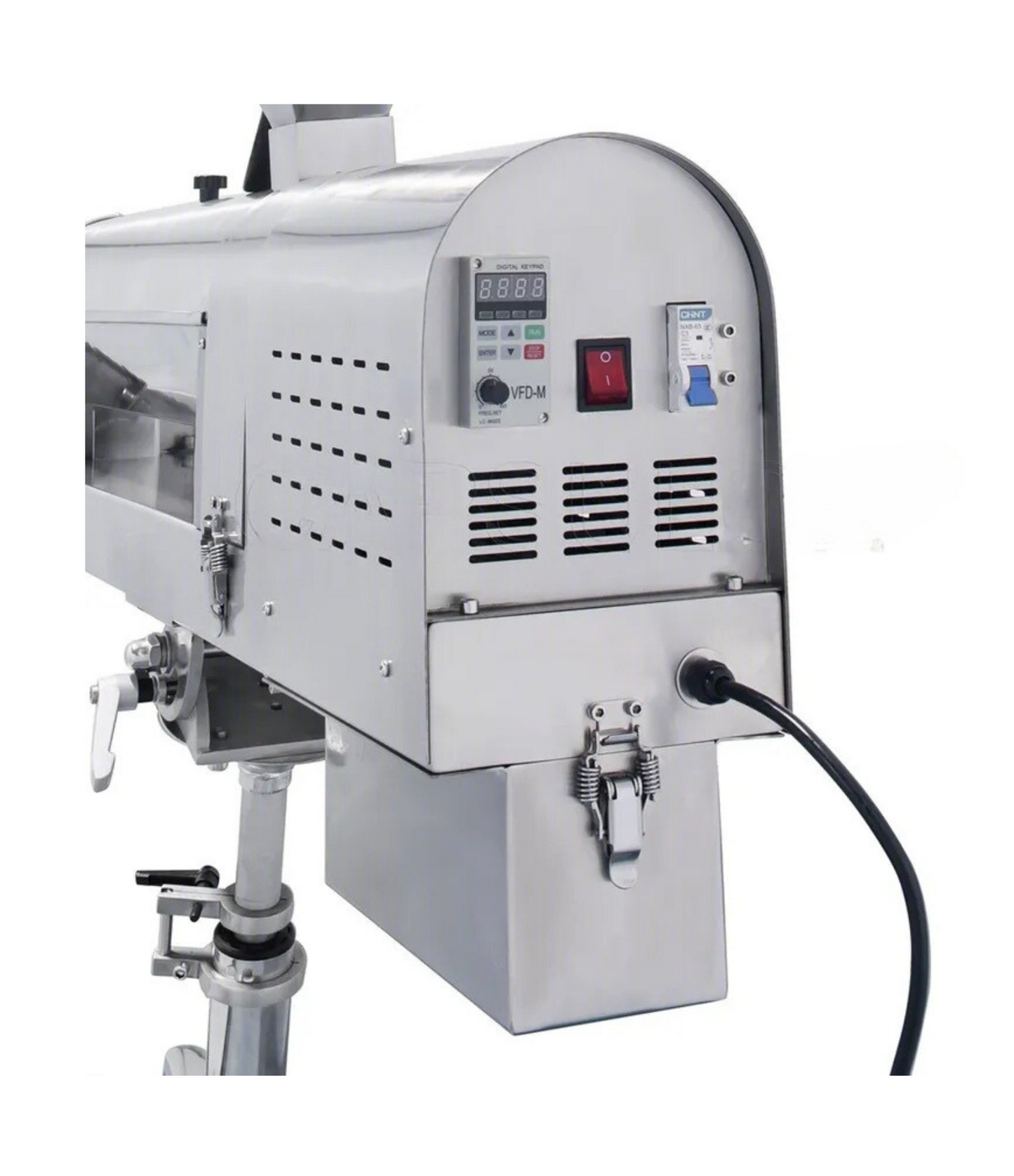

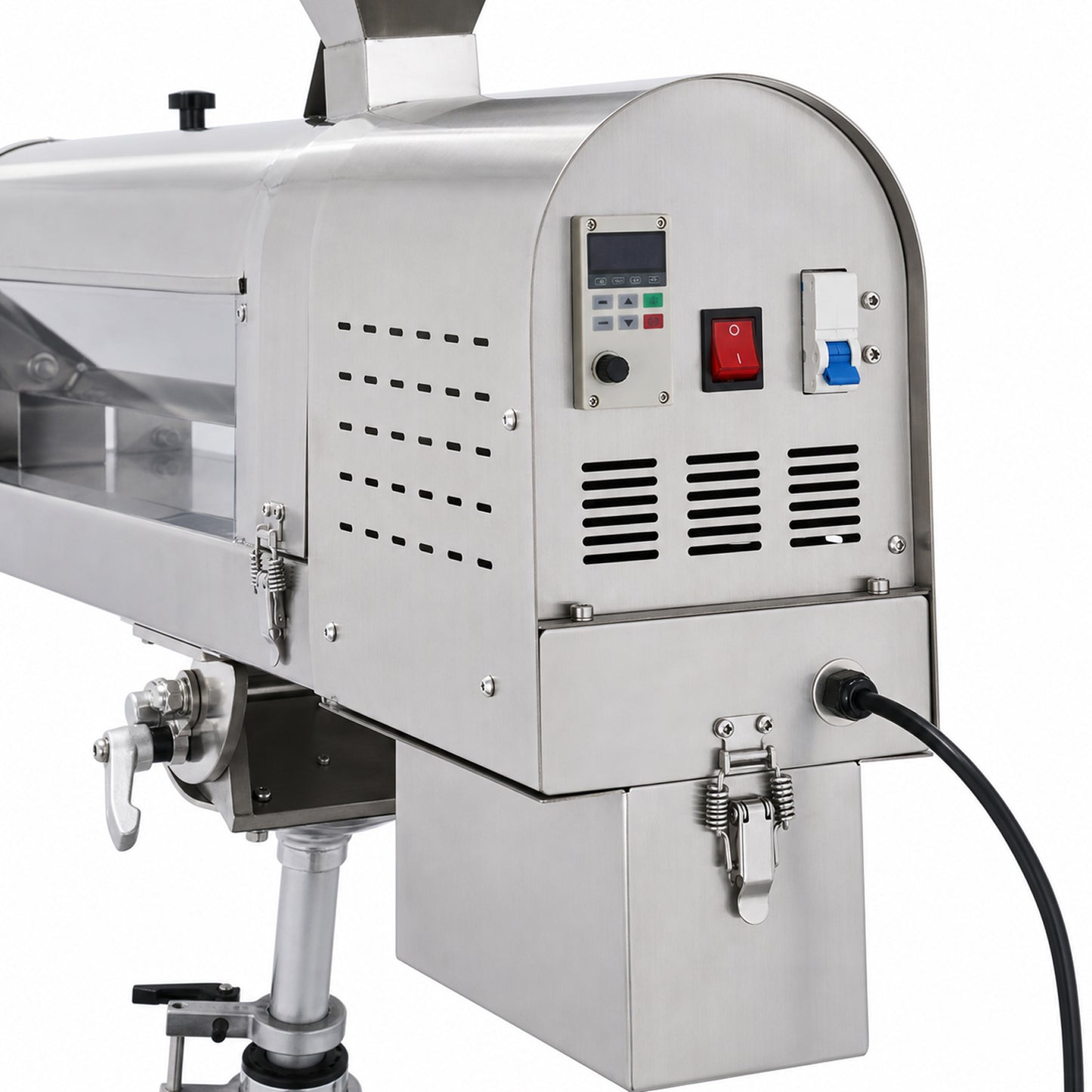

| Control Panel |
Provides simple operation controls for production use. |

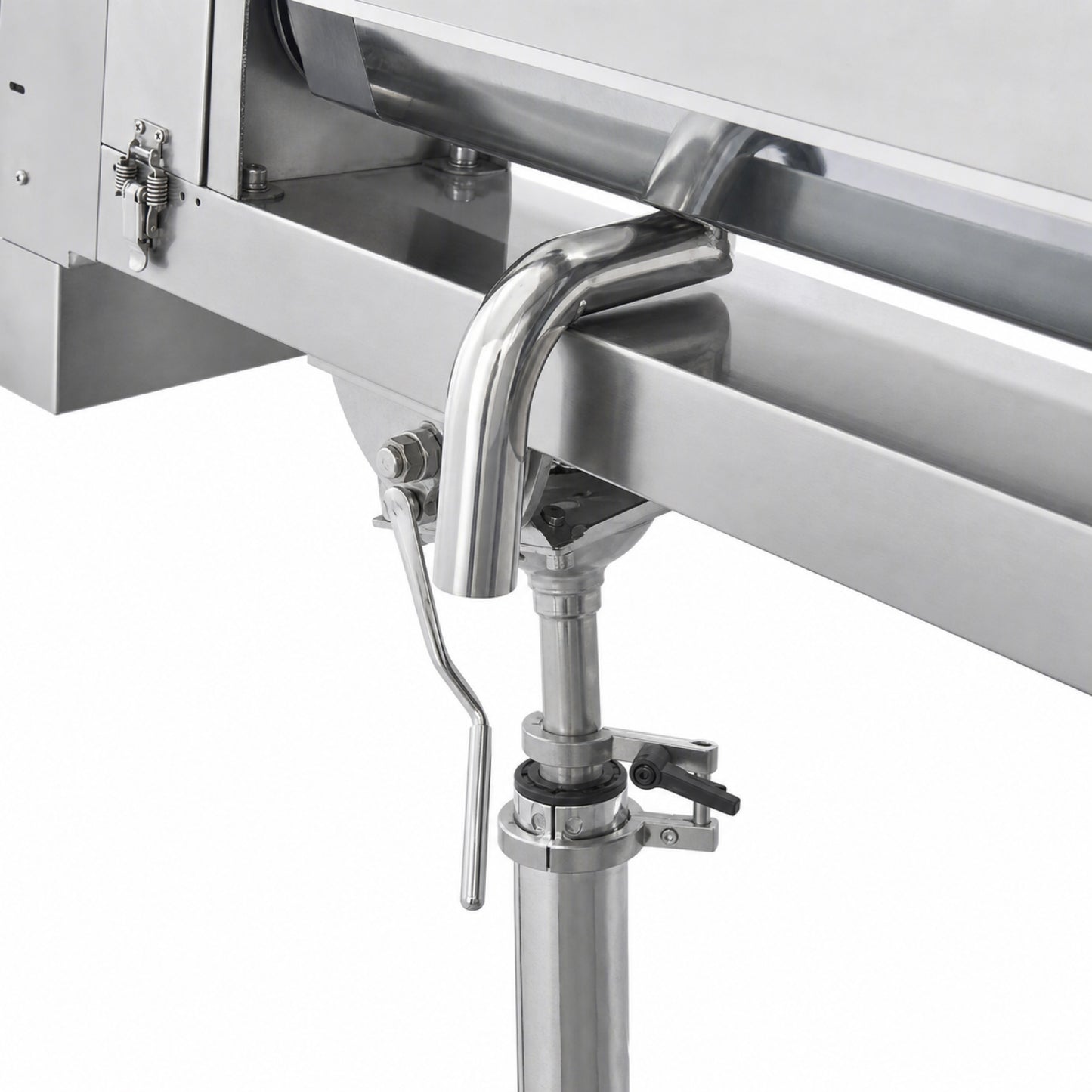

| Adjustable Stand |
Allows the working height to be adjusted for different line layouts. |
| Mobile Base |
Equipped with caster wheels for easier movement and positioning in the production area. |
Operating & maintenance notes
- Before electrifying, turn the main shaft by hand to confirm the shaft moves freely.
- Before polishing a different capsule product, clean the brush, mesh, and hopper completely.
- Clean the filter bag of the dust collector regularly.
- The mesh cartridge and brush are joined by compression fitting — assemble, disassemble, and clean without tools.
Build a complete capsule line
The Leadlife advantage
- ✔ U.S. support — local engineers, spare parts, and fast response
- ✔ Installation & training available (paid service)
- ✔ Financing options available
- ✔ Stainless steel construction, production-facility-ready build
- ✔ 1-year warranty
- ✔ Documentation available upon request
- ✔ Live demo available
Frequently asked questions
What does a capsule polisher do?
It polishes filled capsules, removes residual powder from the capsule surface, and eliminates static electricity, giving a cleaner, more presentable finished capsule before counting and bottling.
What is the output of the JPG-2?
A nominal 139,000 capsules per hour. Actual throughput depends on capsule size, fill material, machine configuration, setup, and operator workflow.
Which capsule sizes does it handle?
The JPG-2 is suitable for all capsule sizes. No mold or tooling change is required to switch between sizes.
Can the speed be adjusted?
Yes — the motor is inverter-controlled with infinitely variable speed, so the machine can be tuned to the product and run smoothly under starting torque.
How is the machine cleaned?
The mesh cartridge and brush are joined by compression fitting, so they can be removed and cleaned thoroughly without tools. The dust-collector filter bag should be cleaned regularly.
What power supply does it require?
220V 50Hz or 110V 60Hz, at 0.18 kW.
Is it easy to move between lines?
Yes — the machine sits on an adjustable stand with a caster-wheeled mobile base, and weighs 40 kg.
Is the machine covered by a warranty?
Yes — the JPG-2 includes a 1-year warranty.
Do you offer installation and training?
Yes — installation and operator training are available as a paid service, along with financing options. Talk to an engineer or request a quote.
