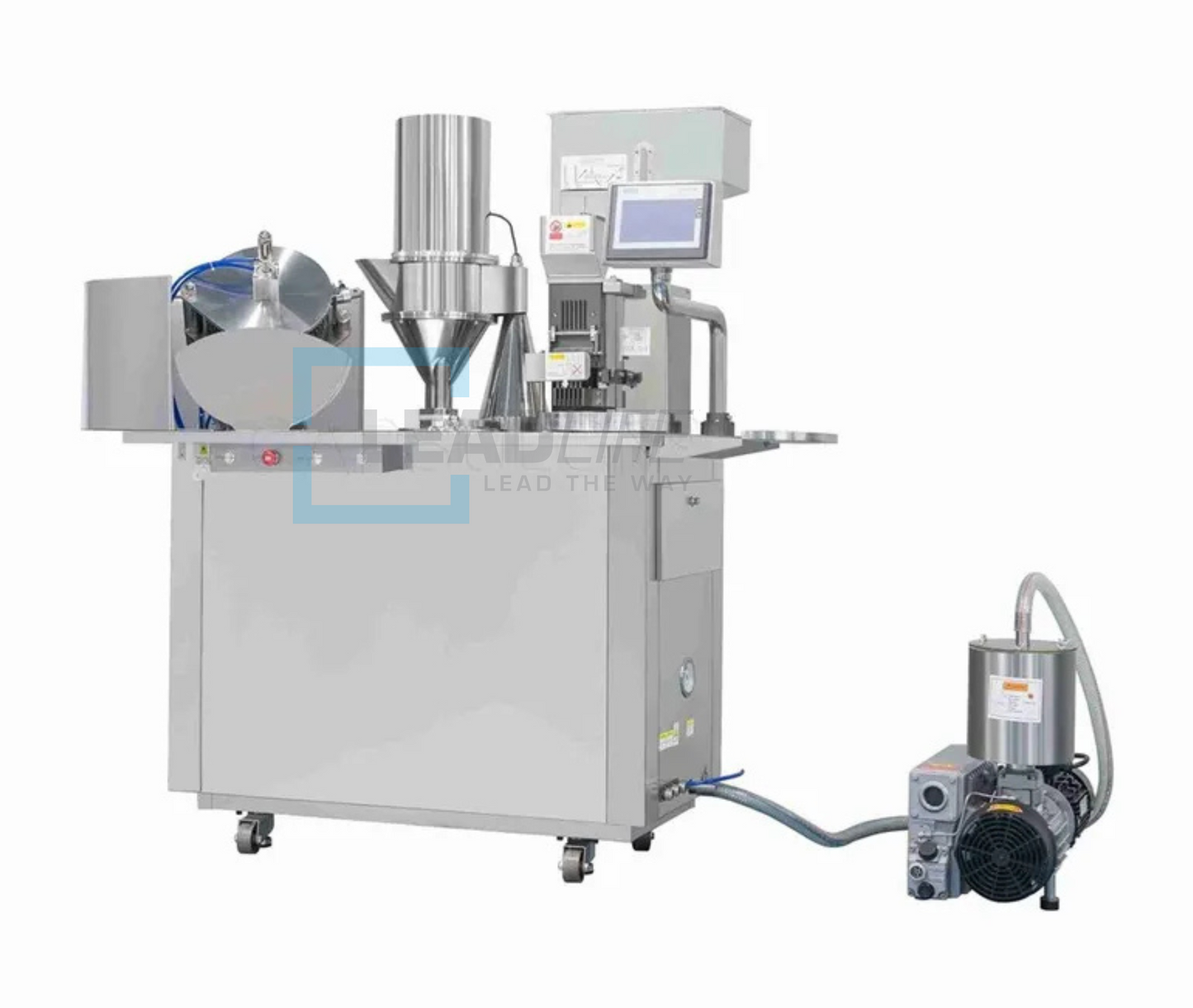

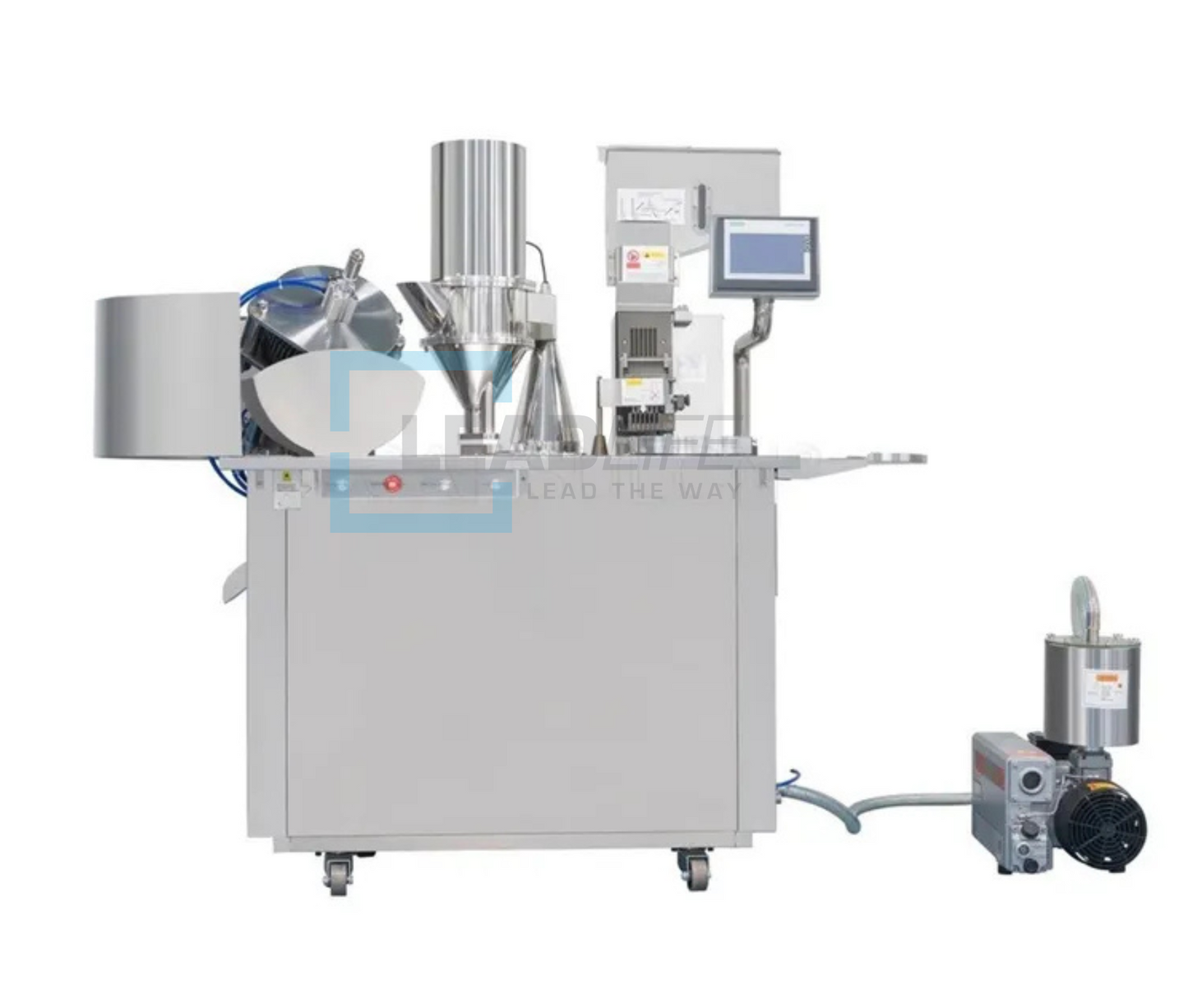

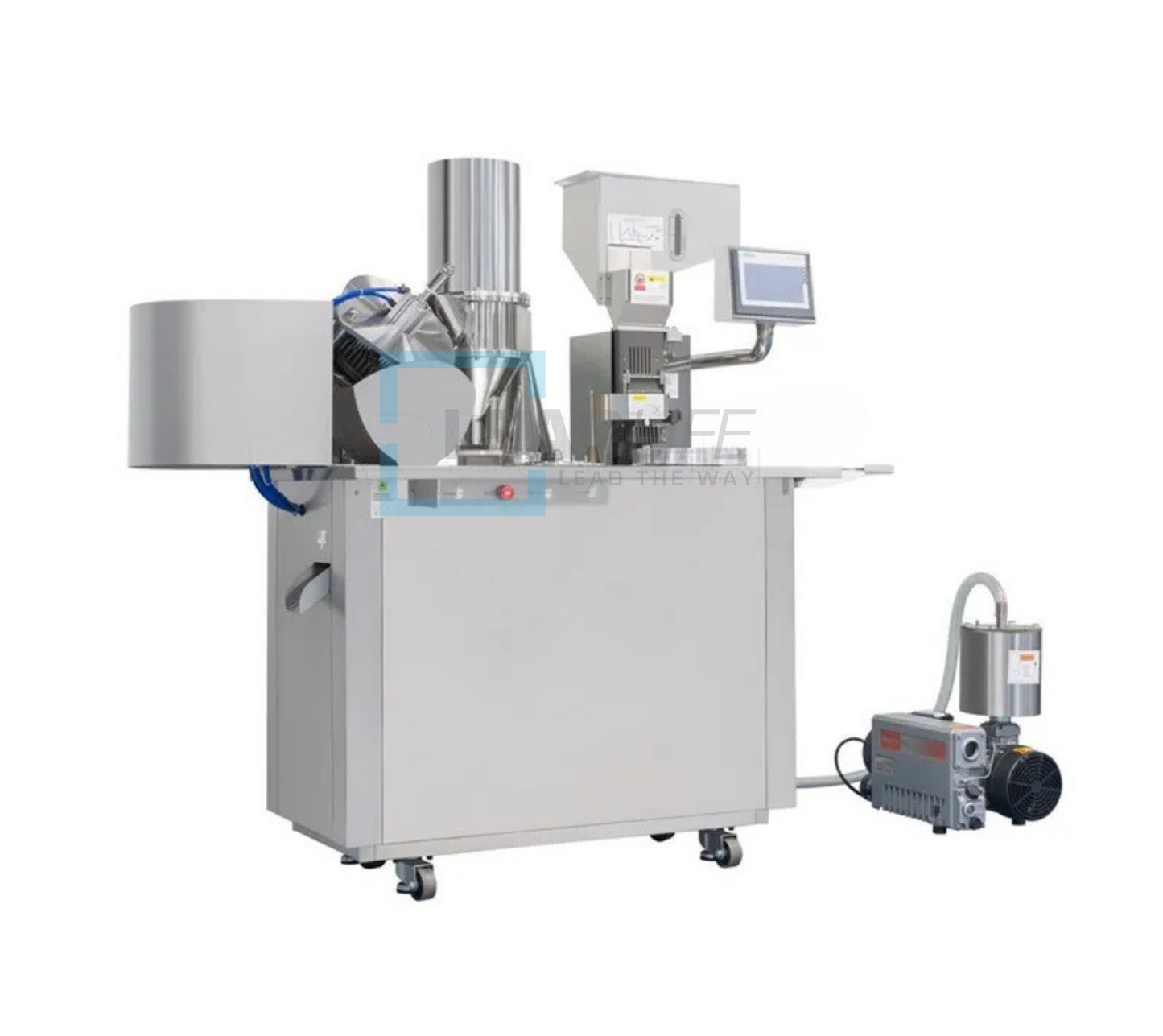

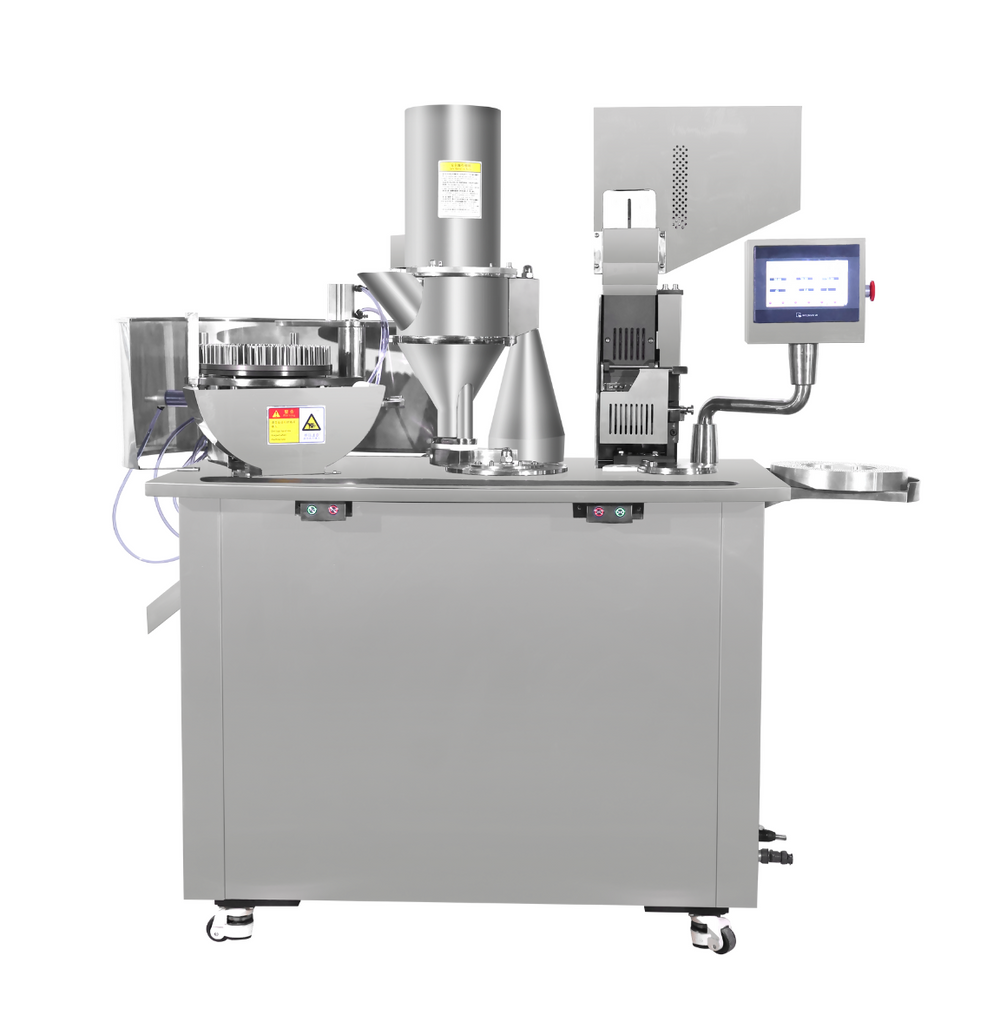

Semi-Automatic Capsule Filling Machine Horizontal Type is our latest design with ultra quiet operation, which has eliminated the use of noisy portable compressor air like other models in the industry.This improvement results in faster production, meeting cGMP requirements, more accurate filling, safer operation, simple maintenance, super low noise, easy cleaning and less labor intensive.
Introduction
The machine is equipped with electric and air control devices and an automatic counting device, and can automatically complete the whole filling process in sequence from positioning empty capsules to separating empty capsules to filling capsules to locking filled capsules.
It is suitable for filling the capsules in sizes 00#,0#,1#,2#,3#,4# and safety capsule. It can be customized to fill capsules from size 000# size 5# but the filling speed will slow down.
The filling amount can be adjusted by the number of rotations of the dosing disk. The powder feeder also has an auger to regulate the powder filling.
This improvement results in faster production, meeting cGMP requirements, more accurate filling, safer operation, simple maintenance, super low noise, easy cleaning and less labor intensive.
Specifications
| Model |
BJ-V |
| Control Panel |
Siemens |
| Capsule Size |
000#, 00L#, 00#, 0L#, 0#, 1#, 2#, 3#, 4# |
| Capacity |
10,000 to 15,000 per hour |
| Electrical Supply |
As electrical facilities vary from country to country, please provide your specifications at time of order so that the correct motors are supplied with your machine |
| Vacuum Pump |
40m3/h |
| Compressed Air |
0.03m³/min,0.7MPa |
| Overall Dimensions |
Length: 1140mm
Width: 700mm
Height: 1630mm
Weight: 380Kg |
| Package Size |
Length: 1650mm
Width: 800mm
Height: 1750mm
Weight: 500Kg |
Remarks
- Only one operator is required, and operating training can be done in 10 minutes.
- A special design allows for changing parts for different size capsules within 30 minutes easily, simply, and precisely.
- It has an infinite variable speed of filling table with independent power and fixed point filling that results in accurate dosage.
- Can be applied to fill various character powder, such as non-freeflow powder, static flour, sticky fibroid material.
