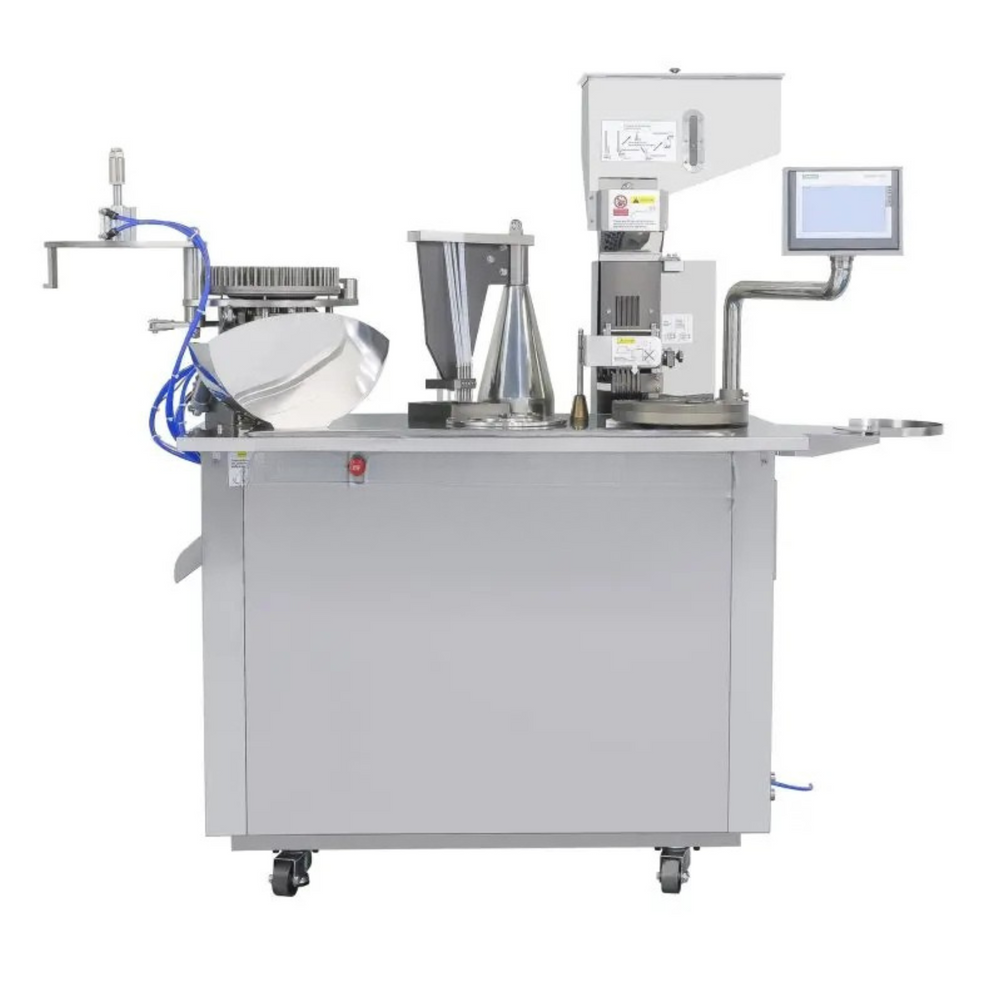

Semi-Automatic Liquid Capsule Filling Machine Lead-L—it’s a powerful solution for liquid capsule production. This semi-automatic unit can deliver up to 10,800 capsules per hour, with output varying based on operator proficiency and capsule specifications. Engineered for versatility, it supports a wide range of capsule sizes from 00# to 4#.
Key Features
-
Enhanced Accuracy & Efficiency: Say goodbye to inconsistencies of manual filling. The JTJ-L uses mechanical precision to significantly improve filling accuracy and speed.
-
Precision Dosing: A smart suction pump combined with a precise control valve ensures each capsule is filled with the exact dosage.
-
Smooth Liquid Flow: A high-quality drive motor and turntable design enable a seamless, continuous flow of liquid into capsules without interruptions.
-
High Output with Adjustable Speed: The machine can be adjusted to produce up to 10,800 capsules per hour, matching your production needs.
-
Wide Compatibility: Suitable for all common capsule sizes—00#, 0#, 1#, 2#, 3#, and 4#—eliminating the need for multiple machines.
-
Easy Maintenance: Comes with detailed cleaning and maintenance instructions, ensuring stable and long-term performance.
-
Safety-Oriented Design: Operates on a 380V 50Hz three-phase, four-wire power supply with proper grounding protection for maximum safety.
-
User-Friendly Operation: From capsule loading to product collection, every step is designed for simplicity and efficiency.
-
Modular Build: Key components—capsule feeding, turning, separation, and filling mechanisms—are designed as independent units, making repairs and upgrades straightforward.
Specifications
-
Model: Lead-L
-
Output: 1–10,800 capsules/hour (depending on operator skill and capsule type)
-
Capsule Sizes: 00#, 0#, 1#, 2#, 3#, 4#
-
Filler Material: Liquid substances
-
Total Power: 3.2 kW
-
Compressed Air: 0.03 m³/min, 0.7 MPa
-
Vacuum Pump: 40 m³/h
-
Dimensions: L 1,130 mm × W 700 mm × H 1,600 mm
-
Weight: 400 kg
-
Packaging Size: L 1,650 mm × W 720 mm × H 1,800 mm
-
Package Weight: 500 kg
