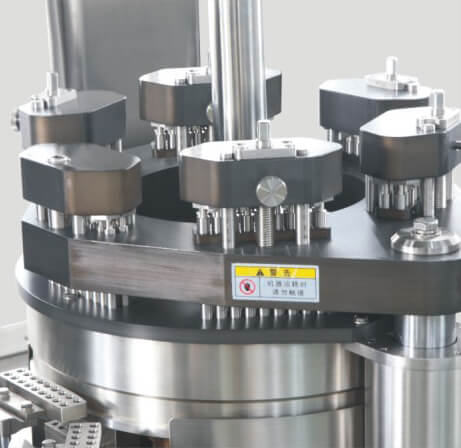

Built for high-throughput pharma and nutraceutical production, the NJP-2500C fully automatic capsule filling machine completes orientation, separation, dosing, tamping, locking, rejection, and discharge in one continuous cycle. Ideal for powders, granules, or pellets with GMP-compliant design and easy changeovers across capsule sizes 000–5.
Key benefits
-
High output: up to 150,000 capsules/hour (≈2,500 caps/min) with stable dosing
-
Consistency: multi-tamping station for uniform fill and low weight RSD
-
Downtime minimized: tool-less change parts, fast size swaps (000–5)
-
Compliance-ready: GMP design; documentation pack available (IQ/OQ on request)
-
Operator friendly: HMI with recipe control, alarms, and real-time counters
-
Clean operation: dust extraction and vacuum interface reduce cross-contamination
Specs at a glance
NJP-2500C Specifications
| Item |
Value |
| Model |
NJP-2500C (Fully Automatic) |
| Output |
Up to 150,000 capsules/hour (≈2,500 caps/min) |
| Supported Sizes |
000, 00, 0, 1, 2, 3, 4, 5 (change parts) |
| Applicable Materials |
Powers / granules / pellets (gelatin or HPMC capsules) |
| Dosing System |
Multi-tamping powder station with adjustable dosing disc |
| Fill Accuracy |
Typical ±2–3% (material & process dependent) |
| Stations |
Auto orient → separate → fill → tamp → lock → reject → discharge |
| Controls |
Touchscreen HMI, recipe management, fault alarm, counters |
| Air Requirement |
0.6–0.8 MPa clean compressed air |
| Vacuum |
Central vacuum or dedicated pump interface |
| Power |
3-phase, 50/60 Hz (regional voltage options) |
| Compliance |
GMP design; FDA/UL component documentation available |
| Changeover |
Tool-less change parts; quick size conversion |
| Options |
Pellet/granule kit, dust collection, metal check, inline polishing |
| Service & Parts |
US-based support; stocked spares; remote diagnostics |
| Warranty |
1 year standard (extended plans available) |
What’s included
- Base machine with HMI and safety guarding
- One initial capsule size change part set (specify 000–5)
- Installation guidance & operator training (remote/onsite)
- SOPs, maintenance checklist, and spare parts kit
Typical applications
Commercial-scale solid-dose production for pharmaceuticals, nutraceuticals, contract manufacturing (CMO/CDMO), and pilot-to-full-scale tech transfer lines.
