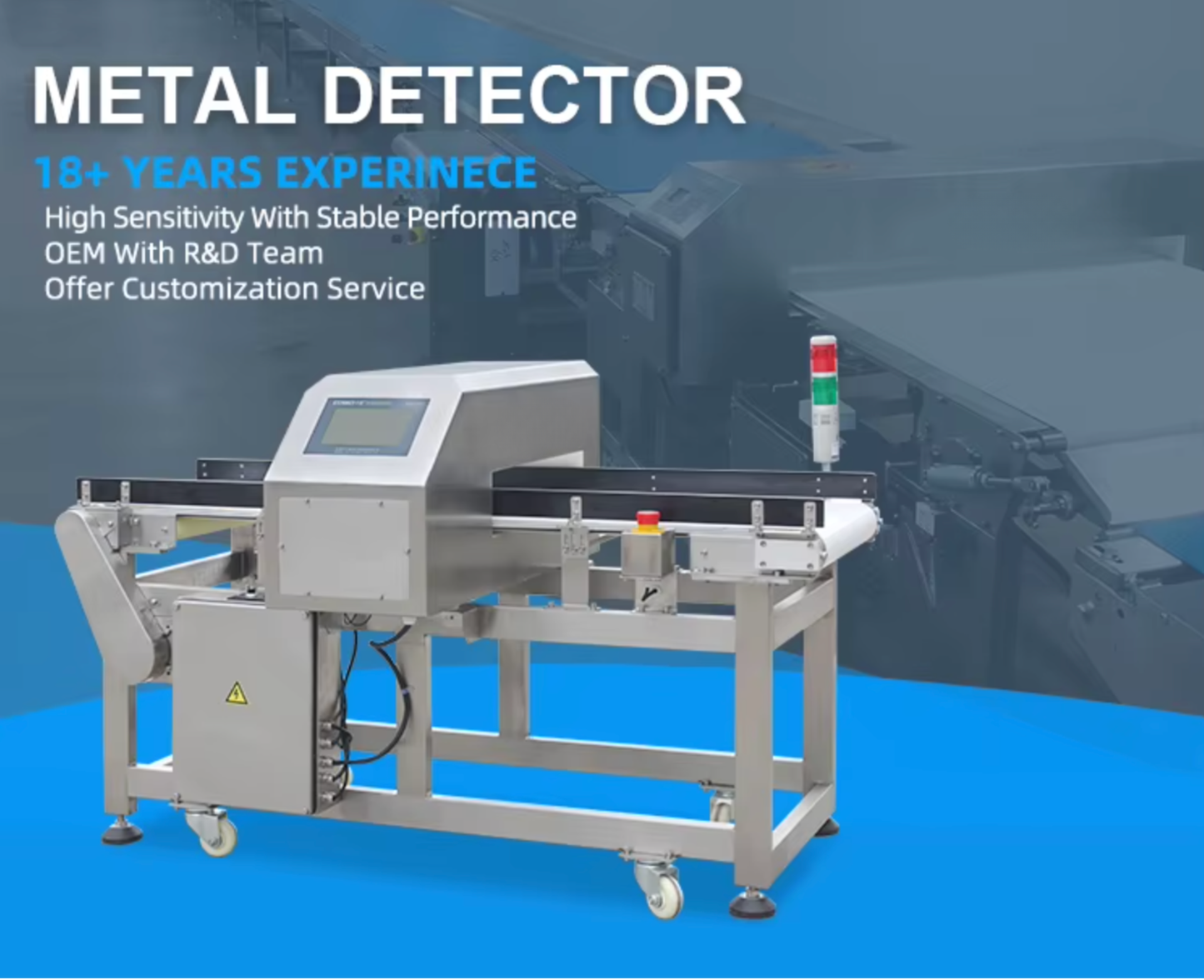

Conveyor Metal Detector for Supplements (2015JJ-A) — Scale Quality Control as You Grow
As your supplement brand scales from small batches to real production volume, metal contamination risk grows with it—tool wear, raw material handling, and line changeovers. The Leadlife 2015JJ-A conveyor metal detector for supplements helps you add an in-line inspection step that protects your customers, reduces rework, and strengthens your QA process for long-term growth.
Why Supplement Manufacturers Choose In-Line Metal Detection
-
Protect brand trust: catch metal foreign matter before it reaches finished goods.
-
Reduce costly rework: remove contaminated product fast with a clear reject action.
-
Improve repeatability: store settings for multiple SKUs to speed up changeovers.
Note: Metal detection supports a stronger quality program but does not guarantee regulatory compliance by itself.

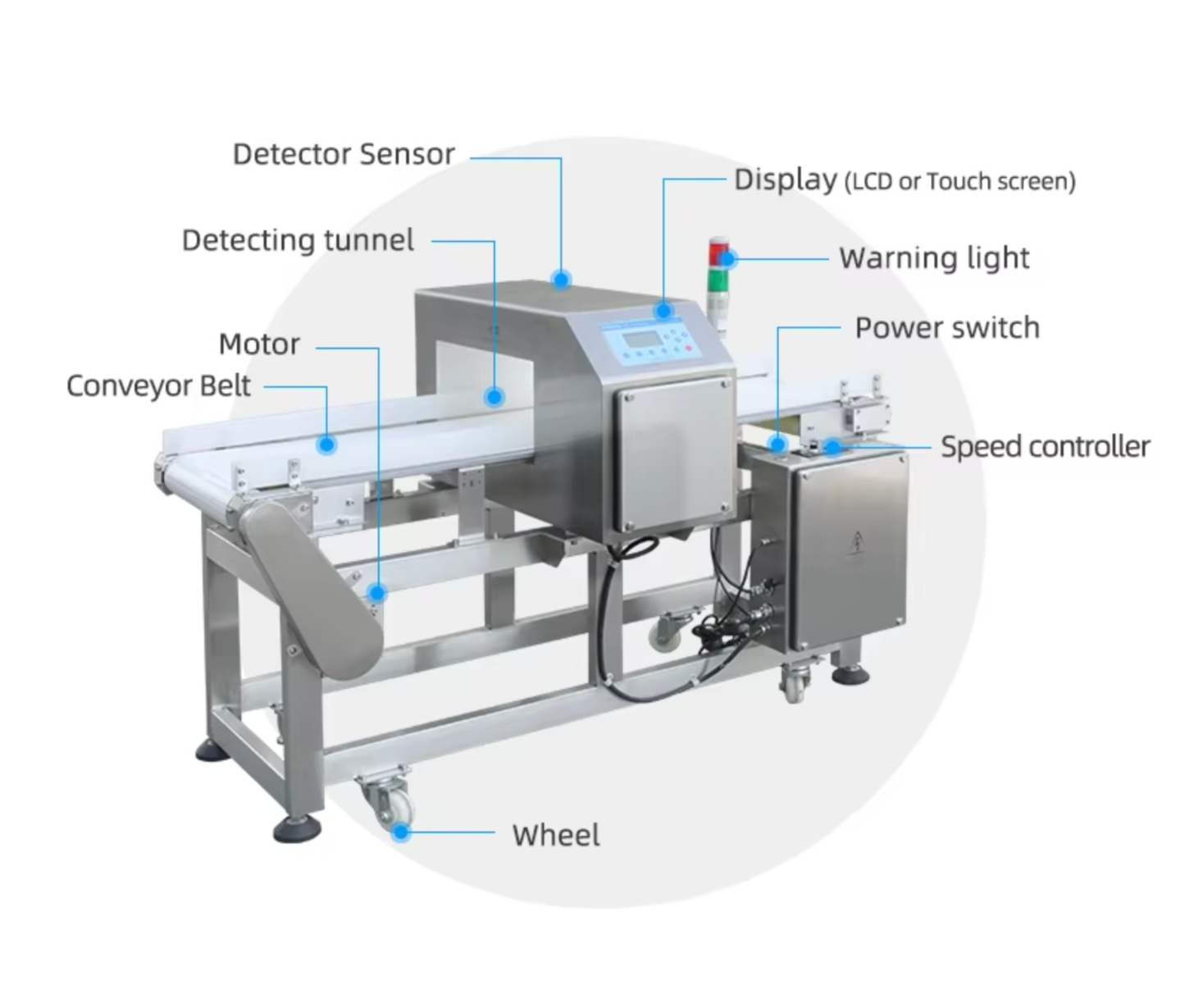

Key Features
-
High sensitivity detection (empty machine): Fe ≥ 0.7 mm, Non-Fe ≥ 1.0 mm, SUS304 ≥ 1.5 mm
-
304 stainless steel construction for supplement & pharma environments
-
Push-rod reject after detecting metal foreign matter (alarm light required)
-
Stores & records up to 52 product settings (great for multiple supplement SKUs)
-
Password power-on protection to reduce unauthorized parameter changes
-
Conveyor stability baffles installed on both sides of the belt
Technical Specifications (2015JJ-A)
| Model |
2015JJ-A |
| Detection opening (W × H) |
200 mm × 150 mm |
| Main material |
304 Stainless Steel |
| Sensitivity (empty machine) |
Fe ≥ 0.7 mm / Non-Fe ≥ 1.0 mm / SUS304 ≥ 1.5 mm |
| Device length |
1500 mm |
| Conveyor belt width |
160 mm |
| Conveyor belt height |
750 mm (Adjustable upward 100 mm) |
| Conveying capacity |
5 kg/time |
| Conveyor speed |
25 m/min |
| Power |
220V / 60Hz / Three-phase |
| Reject method |
Push-rod removal after detecting metal foreign matter (alarm light required) |
| Running direction |
Facing the operating surface: left → right |
| Recipe storage |
Stores & records up to 52 products |
| Security |
Power-on password |
Best-Fit Supplement Applications
- Capsules, tablets, softgels (depending on your product flow and packaging)
- Powders or granules (with controlled conveying)
- Lines upgrading from manual checks to in-line inspection
FAQ
Q: Is this made for supplement manufacturing environments?
A: Yes. The unit uses 304 stainless steel and is designed for production line integration.
Q: We have many SKUs. Can we save settings?
A: Yes—2015JJ-A can store and record up to 52 product settings to support faster changeovers.
Q: What info do you need to confirm fit?
A: Product type (capsule/tablet/powder), throughput target, line photos/layout, and height constraints.
Get a Recommendation for Your Line
Send your product type + target output + line photos, and we’ll help you confirm the best conveyor metal detector configuration for your supplement production stage.
