An automatic capsule filling machine runs the full fill cycle — capsule feeding, separation, powder filling, joining, and ejection — continuously, so its output is set by the machine's rated speed rather than by hand labor. Choosing one comes down to matching its output class, capsule-size range, and tooling to your production. This guide covers the practical selection criteria — output, capsule size, powder fit, tooling and changeover, power, and footprint — and shows where each model in our range lands by nominal, model-rated output.
If you're still deciding between machine classes overall, start with our broader automatic capsule filling machine buyer guide and the manual vs automatic comparison. This piece focuses on selecting an automatic by output and tooling.
What an Automatic Capsule Filler Does
On an automatic machine, capsule handling and powder filling run as one continuous, powered cycle — there's no per-cycle hand operation as there is on a manual filler, and no operator-assisted step as on a semi-automatic. That continuous operation is what makes higher, steadier output possible and reduces the hand labor per capsule. Output is rated in capsules per hour, by model.
If your volume doesn't yet justify a full automatic, a larger manual plate or a semi-automatic may be the better step — see manual capsule filling machines by hole count, or browse semi-automatic and manual machines.
Output Classes by Model
The quickest way to shortlist an automatic filler is by its nominal, model-rated output — the capsules-per-hour figure assigned to each model. Actual throughput depends on capsule size, fill material, machine configuration, setup, and operator workflow, so treat these as nominal capacities for comparison, not guaranteed production rates.
| Model | Nominal output (capsules/hour)* | Typical production scale |
|---|---|---|
| NJP-400C | 24,000 | Entry automatic / small-to-mid production |
| LF-80 (dosator) | up to 40,000 | Dosator-style filling; small-to-mid production |
| NJP-800C | 48,000 | Small-to-mid production |
| NJP-1200C | 72,000 | Mid production |
| NJP-2500C | 150,000 | Mid-to-high production |
| NJP-3800C | 228,000 | High-volume production |
| SFK-3800 | 228,000 | High-volume, fully automatic |

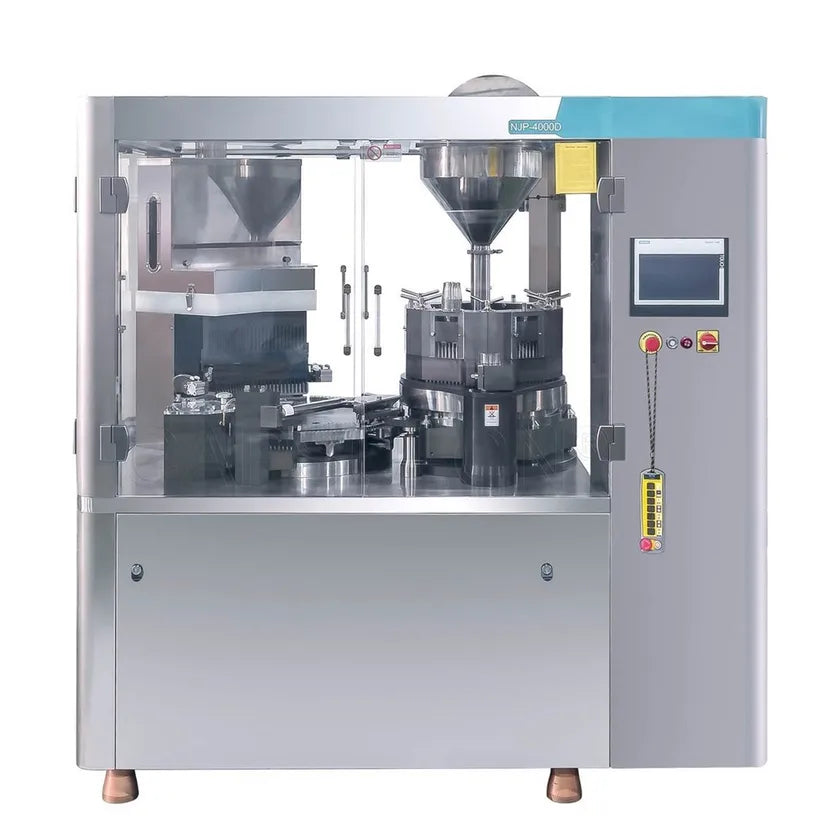

| NJP-4000C | 240,000 | High-volume production |
| NJP-7500C | 450,000 | Highest-volume continuous production |
*Nominal, model-rated capacities from each machine's specification. Actual throughput depends on capsule size, fill material, machine configuration, setup, and operator workflow.
Browse all models on the automatic capsule filling machines collection.
Choosing Your Output Target
Size the machine to your sustained demand, not a one-off peak. A useful approach: estimate the capsules you need per production day, divide by the hours you'll actually run, and leave headroom for changeovers, cleaning, and downtime — effective output is always lower than the nominal rate. Buying well above your real demand ties up capital and floor space; buying below it turns the filler into a bottleneck. If you're between classes, the lower model with room to add shifts is often more practical than the largest machine you can afford.
Capsule Size Range, Tooling & Changeover
Automatic fillers run a specific capsule size via size-specific change parts (the tooling that handles and fills a given size). Running a different size means swapping to the tooling set for that size, which takes setup time. Two practical points:
- Confirm the capsule sizes a model supports and which size it ships configured for.
- If you'll run multiple sizes, budget for additional change-part sets and factor changeover time into your effective output.
Capsule size itself is driven by your fill — see the capsule size chart (000–5) for dimensions and capacity, and the guide to buying empty capsules for materials.
Powder Fit & Filling Method
How well a machine fills your product depends on the powder as much as the machine. Flowability, bulk density, and fines all affect fill consistency, and different machines meter powder differently (for example, tamping-pin versus dosator filling). The practical step is the same regardless of model: run test fills of your actual blend to confirm fill weight and consistency before committing to a production size. A free-flowing, consistent blend gives more predictable results on automatic equipment.
Power, Footprint & Utilities
Automatic fillers are powered production equipment, so check the practical site requirements before you buy:
- Power supply. Models are commonly offered in 110V/60Hz or 220V/50Hz configurations — confirm the option that matches your facility.
- Footprint. Automatic machines take meaningfully more floor space than manual or semi-automatic units, plus clearance for loading and service.
- Ancillaries. Many setups pair the filler with dust collection or vacuum, and some equipment uses compressed air — confirm the requirements for your chosen model.
Where the Filler Fits in Your Line
An automatic filler usually sits in the middle of a production flow: blended powder is prepared upstream, and filled capsules move downstream for polishing, counting, and bottling. Matching the filler's output to the equipment around it keeps the line balanced — a fast filler feeding slow downstream steps just moves the bottleneck. See how the stages connect in the capsule production workflow guide. Browse complementary equipment on the production machines collection, and source your shells from empty capsules.
When to Move From Manual or Semi-Auto to Automatic
Automatic equipment earns its place when hand or assisted filling can't keep up with demand. Common signals: you're running long manual sessions just to fill orders, filling has become your production bottleneck, or you need more consistent, repeatable output across larger runs.
| Type | Operation | Output scale | Best when |
|---|---|---|---|
| Manual | Hand-operated, per cycle | Smallest | R&D, sampling, small batches |
| Semi-automatic | Operator-assisted | Mid | Growing small production; less hand effort per cycle |
| Automatic | Continuous, full-cycle | Highest | Steady higher-volume production |
For the smaller end of that path, see manual capsule filling machines by hole count or browse semi-automatic machines.
Buying & Support Considerations
Beyond the machine itself, factor in what keeps it running: availability of change parts and spares, installation and operator training, and lead time to delivery. Buying capsules and equipment from one supplier also keeps your shells and tooling aligned. Because Leadlife supplies both capsules and capsule filling machines and ships from the USA, you can source the filler, the change parts, and matched capsules together.
Automatic Capsule Fillers at Leadlife
Leadlife's automatic range spans entry models around 24,000 capsules/hour up to high-volume machines rated to 450,000 — so you can match the machine to your real output target and capsule size. Browse the full lineup on the automatic capsule filling machines collection, or tell us your target output, capsule size, and powder and we'll help you shortlist the right model.
Frequently Asked Questions
How many capsules per hour can an automatic filler produce?
It depends on the model. Nominal, model-rated outputs in our range run from about 24,000 capsules/hour on an entry NJP-400C up to 450,000 on the NJP-7500C. Actual throughput depends on capsule size, fill material, machine configuration, setup, and operator workflow, so treat the rated figure as a nominal capacity, not a guaranteed rate.
How do I choose the right output class?
Size to sustained demand, not a peak. Estimate capsules per production day, divide by realistic run hours, and leave headroom for changeover, cleaning, and downtime. The lower model with room to add shifts is often more practical than the largest machine available.
Can one automatic machine run different capsule sizes?
Yes, with the size-specific change parts for each size. Switching sizes means swapping tooling and some setup time, so budget for extra change-part sets if you'll run multiple sizes.
What power supply do automatic fillers use?
Models are commonly available in 110V/60Hz or 220V/50Hz configurations. Confirm the option that matches your facility before ordering.
When should I move from manual or semi-automatic to automatic?
When filling has become your bottleneck — long manual sessions to meet orders, or a need for more consistent output across larger runs. That's the point an automatic's continuous cycle pays off.
Choose the Right Automatic Capsule Filler
Start from your sustained output target and capsule size, then shortlist by nominal model output and confirm tooling, power, and footprint. Browse automatic capsule filling machines, or request a quote with your output target, capsule size, and powder, and we'll help you match the right model — shipped from the USA.
