The cylindrical structure is the distinguishing feature and the mixing ability is well-proportioned and efficient with no blind spots in the cylinders and no accumulation of materials.
Production Description

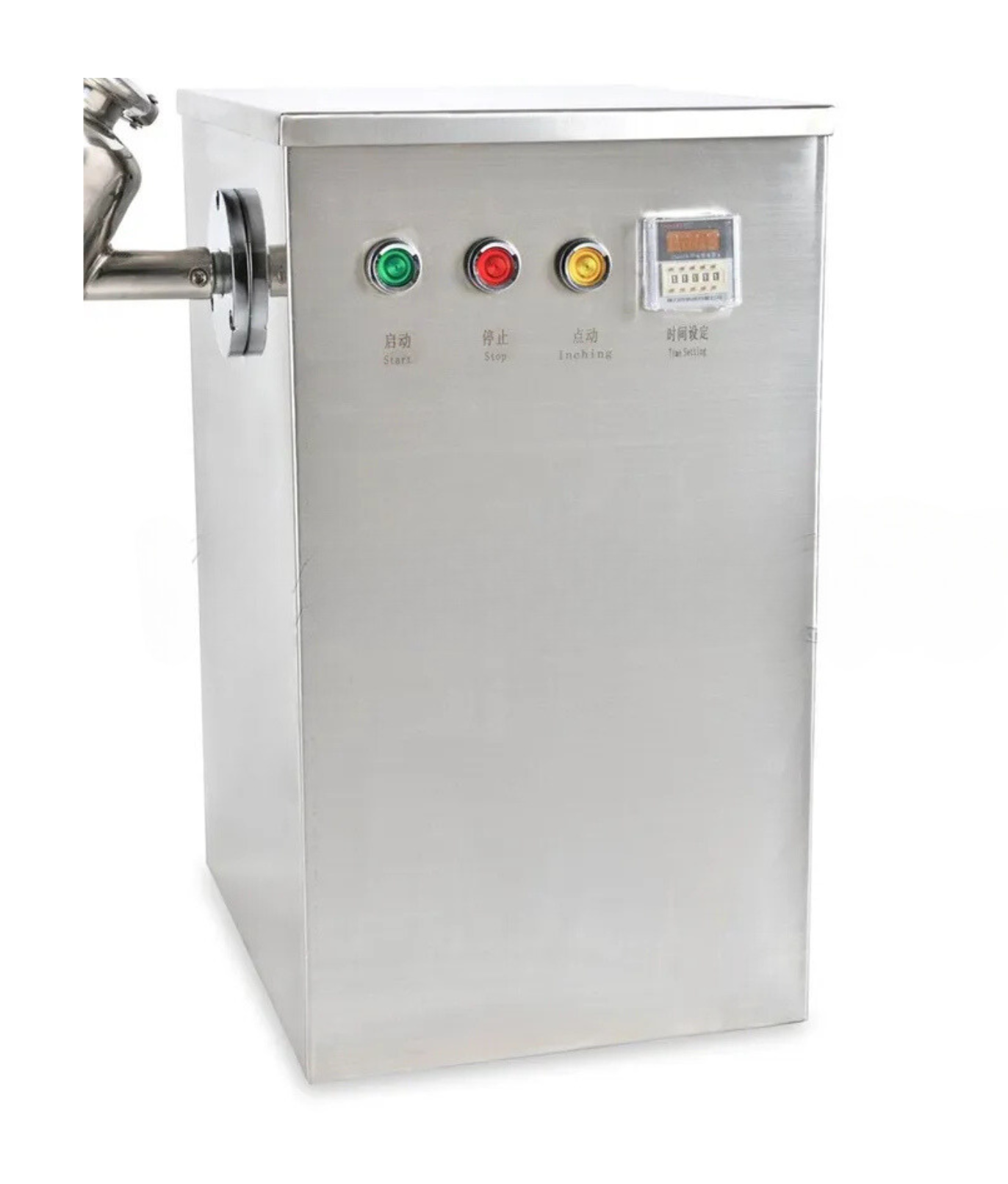

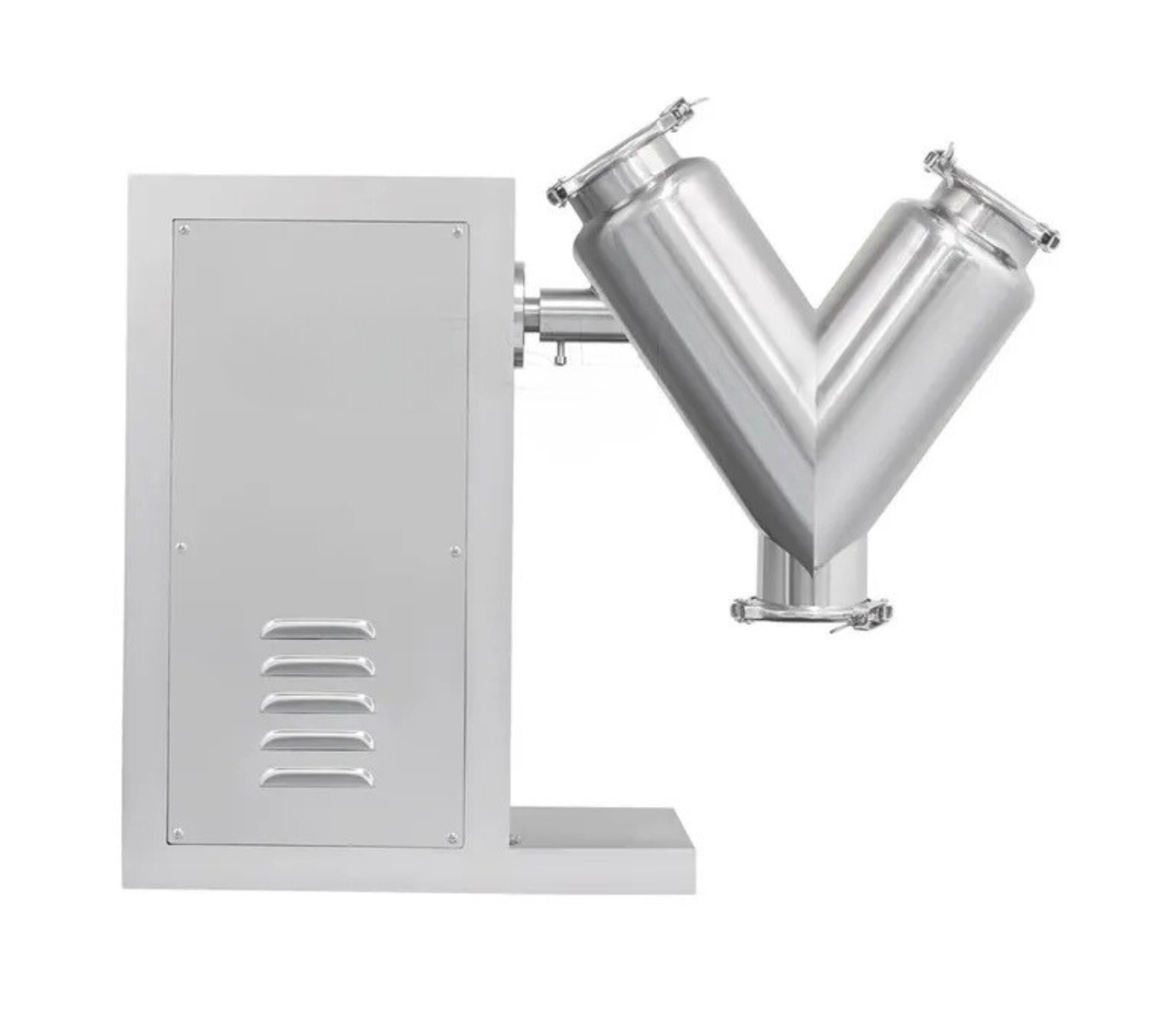

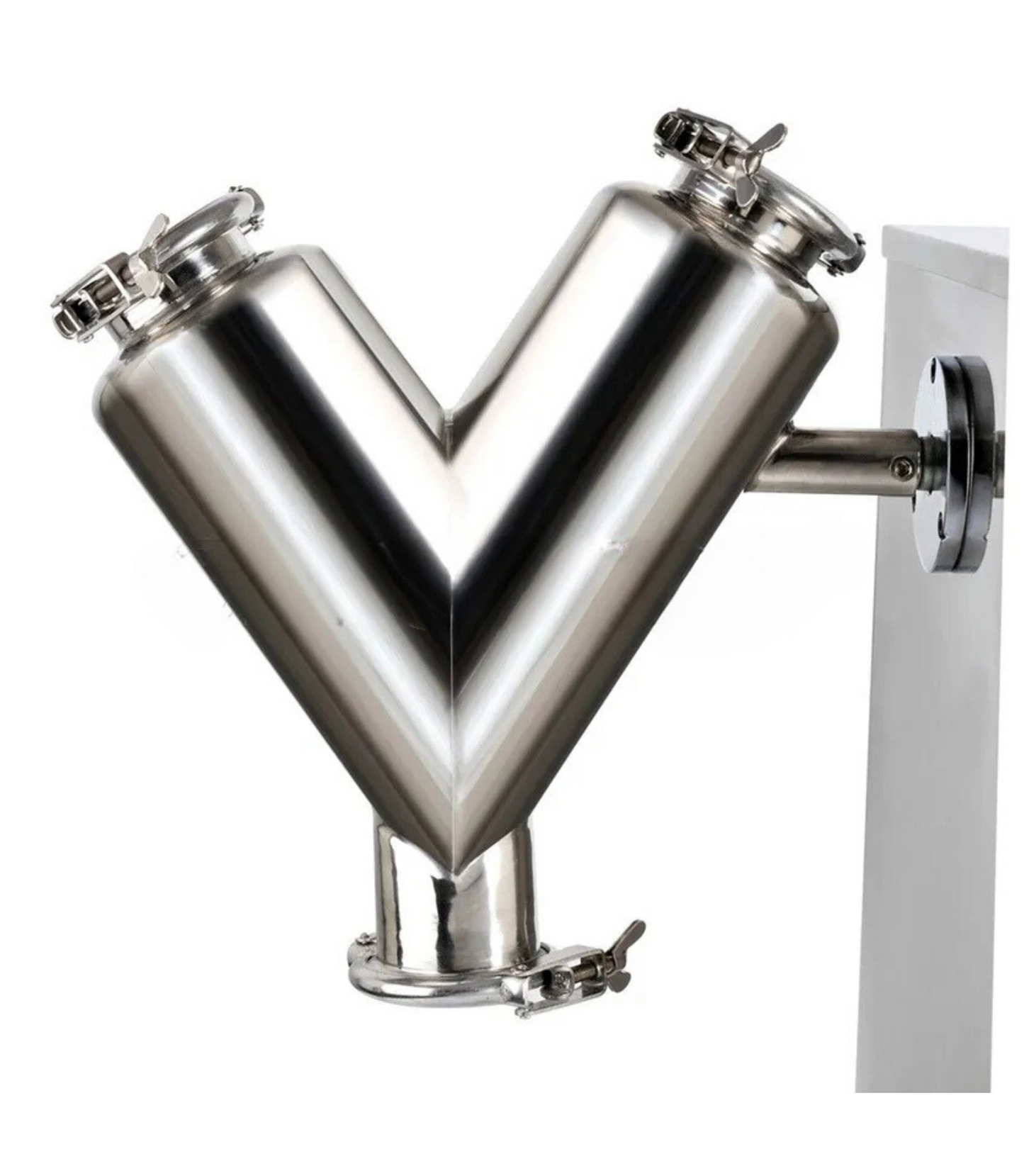

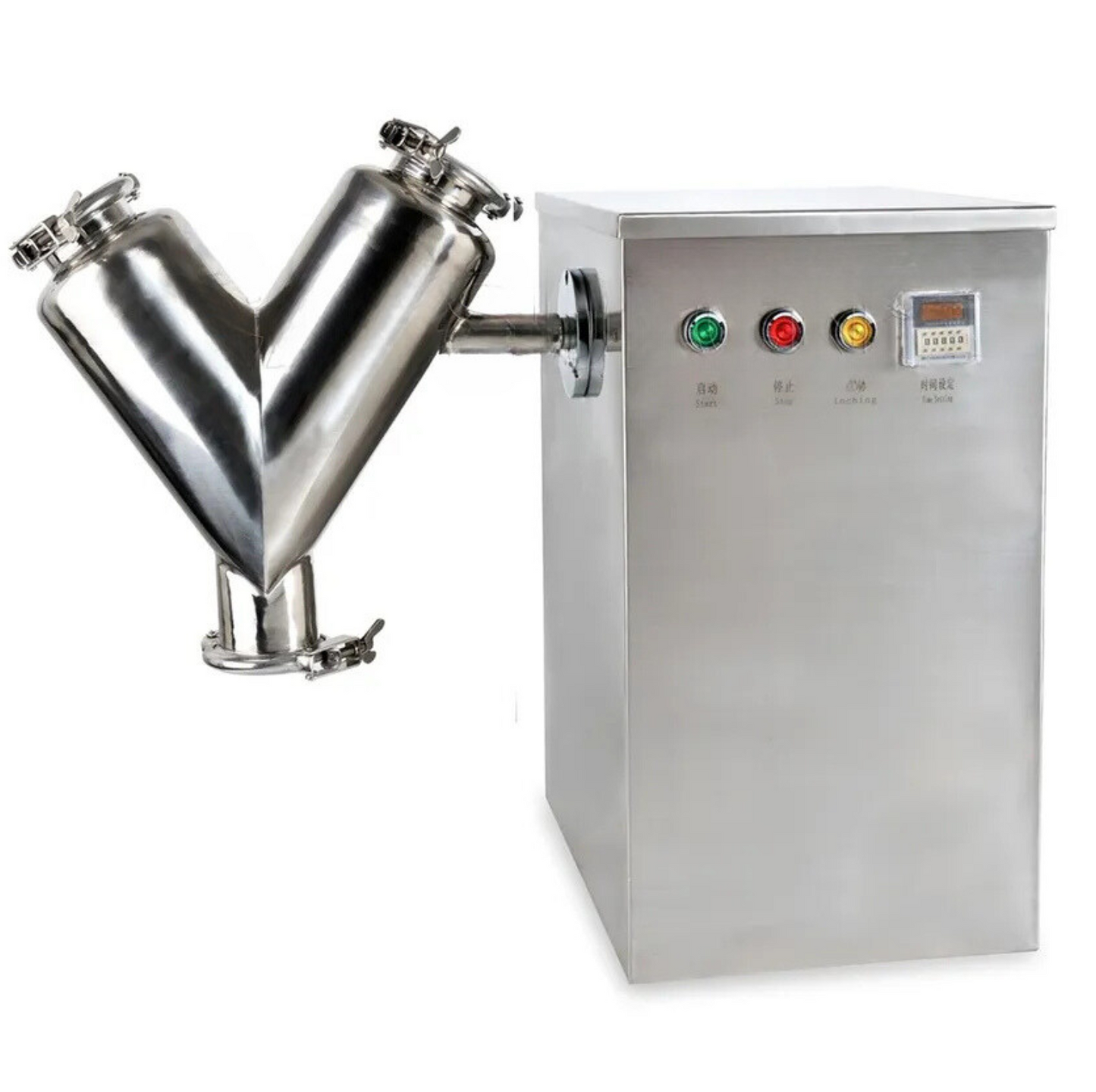

V Powder Mixing Machine
The cylindrical structure is the distinguishing feature and the mixing ability is well-proportioned and efficient with no blind spots in the cylinders and no accumulation of materials.
This machine is straightforward and it is easy to operate on a surface that is easy to clean in a highly finished stainless steel.
Main Application
Wide range of applications
The machine is fully sealed and dust- free operation be in line with the dust- free processing requirements.Used in the pharmaceutical, chemical, foodstuffs industries and scientific research units.
.jpg)
Main uses of Mixer
This machine is mainly used for the uniform mixing of powder, granular and other materials in various industries.
Specifications
| Model |
V-5 |
V-10 |
V-20 |
| Volume |
5L |
10L |
20L |
| Max. Filling Capacity |
2L |
4L |
8L |
| Best Filling Capacity |
1.4L |
2.8 L |
5.6L |
| Power |
0.55KW |
0.55KW |
0.55KW |
| Rotational Speed |
20r/min |
20r/min |
20r/min |
| Dia. Of barrel |
Φ133mm |
Φ159mm |
Φ220mm |
| Dia. Of Inlet |
Φ76mm |
Φ76mm |
Φ133mm |
| Dia. Of Outlet |
Φ76mm |
Φ76mm |
Φ76mm |
| Dimensions |
720x360x615mm |
850x360x785mm |
950x340x830mm |
| Weight |
47kg |
69kg |
83.5kg |
( Don't Worry! We have several Models. We can recommend you according to your requirement. )
