Automatic Liquid Filling • Bottle & Container Packaging • Configurable Dosing

Automatic Liquid Filling Machine for Bottles and Nutraceutical Products

The Leadlife Liquid Filling Machine is an automatic bottle and container liquid filler built for supplement, nutraceutical, wellness, food-grade, and cosmetic brands moving off hand-filling.

Configurable with volumetric piston, peristaltic, or flow-meter dosing, it fills free-flowing to moderately viscous liquids into bottles, jars, vials, and dropper bottles — this is a container liquid filler, not a capsule filler.

🏦

Accurate Volumetric Dosing

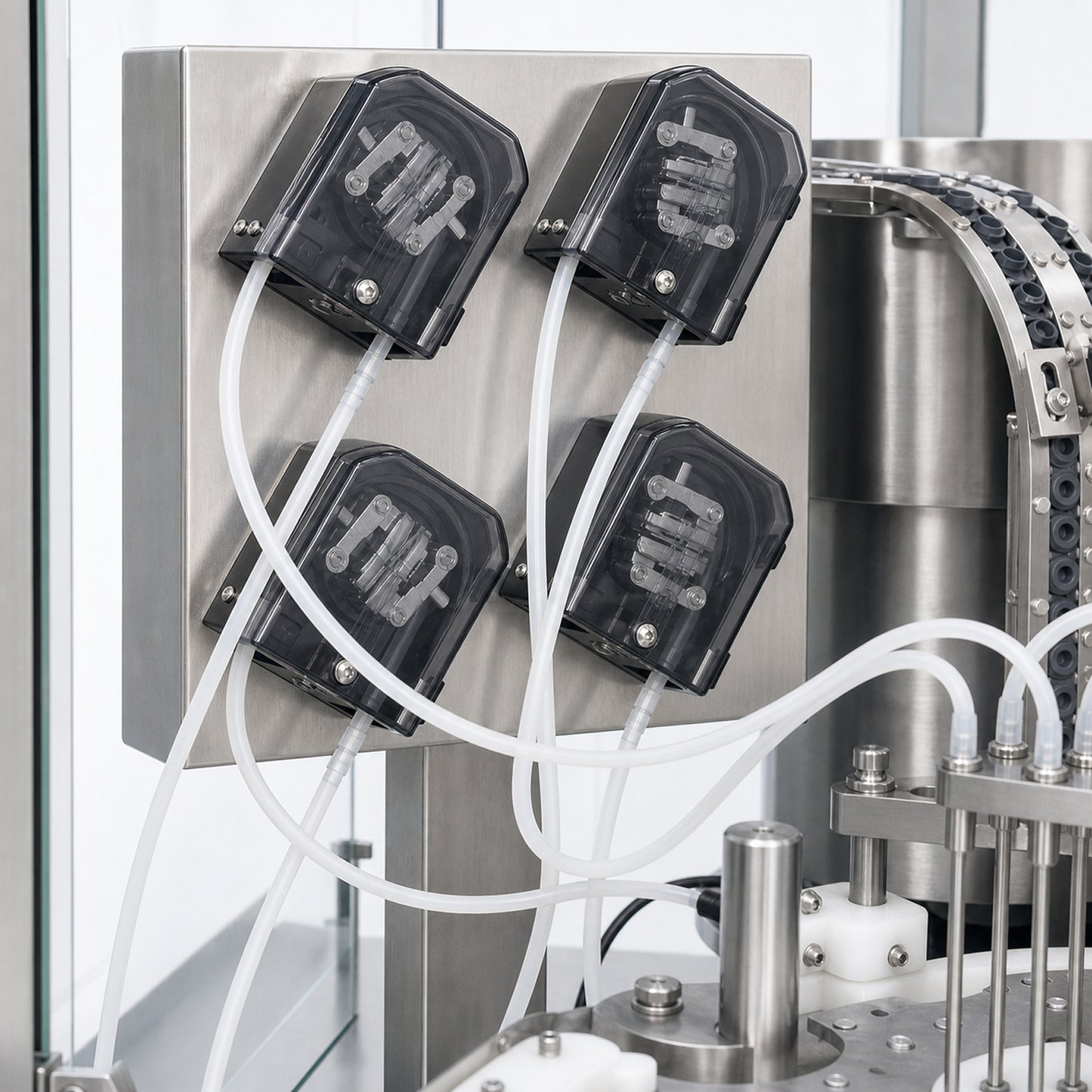

Piston, peristaltic, or flow-meter dosing for consistent fill volumes.

⚡

2–8 Fill Heads

Configurable head count to match your target throughput.

💧

Multi-Container Compatible

Bottles, jars, vials, and dropper bottles on one platform.

🏭

Food-Grade Contact Parts

Stainless steel and food-grade seals throughout the fluid path.

A Practical Upgrade from Hand-Filling

If your team is still hand-filling bottles, jars, or vials, this machine gives you a faster, cleaner, and more repeatable way to move liquid into containers at production volume.

It fits growing supplement, wellness, and cosmetic brands, as well as contract packers and co-manufacturers running multiple fill volumes and container formats who need quick, repeatable changeovers.

Where This Machine Fits in Your Line

Bottle Unscrambler
→
Liquid Filling
→
Capping
→
Induction Sealing
→
Labeling

Line sequence shown is typical; actual configuration depends on your product and packaging goals.

Product Specifications

Machine Type
Automatic inline volumetric liquid filler (piston / peristaltic / flow-meter, configurable)
Filling Heads
2 / 4 / 6 / 8 (configurable)
Filling Speed
Up to 60–120 bottles/min (fill volume and viscosity dependent)
Fill Volume Range
3–100 mL (configurable)
Filling Accuracy
Typically ±0.5–1%, product dependent
Viscosity Range
Thin to medium-high (pump and nozzle dependent)
Container Types
Bottles, jars, vials, dropper bottles
Nozzle Type
Anti-drip / diving nozzles (option)
Control System
PLC with touchscreen HMI, recipe storage
Contact Parts
SS316L / food-grade seals
Frame Material
SS304
Power Supply
220V/380V, 3-phase (configurable)
Compressed Air
0.5–0.7 MPa
Machine Weight
980 kg
Dimensions (L×W×H)
3000 × 1950 × 2300 mm

Specifications are representative configuration ranges and are confirmed per order. Output depends on fill volume, viscosity, container, and head count.

Build Your Bottling & Packaging Workflow

Pair this filler with the rest of the Leadlife bottling and packaging range to build a complete line.

Leadlife Advantage

✓ U.S. support team
✓ Machine + full line planning support
✓ Practical guidance for scaling
✓ Stainless steel, food-grade contact parts
✓ GMP/FDA documentation available if requested
✓ From single machine to full line

Need Help Configuring Your Filling Line?

Contact Leadlife for machine specs, bottling workflow guidance, and demo scheduling.

Frequently Asked Questions

What liquids and viscosities can it fill?

It fills free-flowing to moderately viscous liquids using the pump and nozzle matched to your product. The right dosing type is confirmed from your samples.

What affects fill volume consistency?

Fill volume consistency depends on factors such as liquid viscosity, container stability, nozzle setup, pump configuration, and operator setup. We recommend running test fills with your specific product and containers to confirm results for your application.

What container types and fill sizes does it handle?

Bottles, jars, vials, and dropper bottles across a 3–100 mL configurable fill range. Container and fill size are set up from your specifications.

Can it connect to my capping and labeling line?

Yes. It's designed to feed directly into capping, induction sealing, and labeling for a continuous bottling and packaging line.

Do you provide GMP or FDA documentation?

GMP/FDA documentation may be available if requested, depending on the machine configuration and supplier documentation package. This does not represent certification or regulatory approval of the customer’s facility, process, or finished product.
