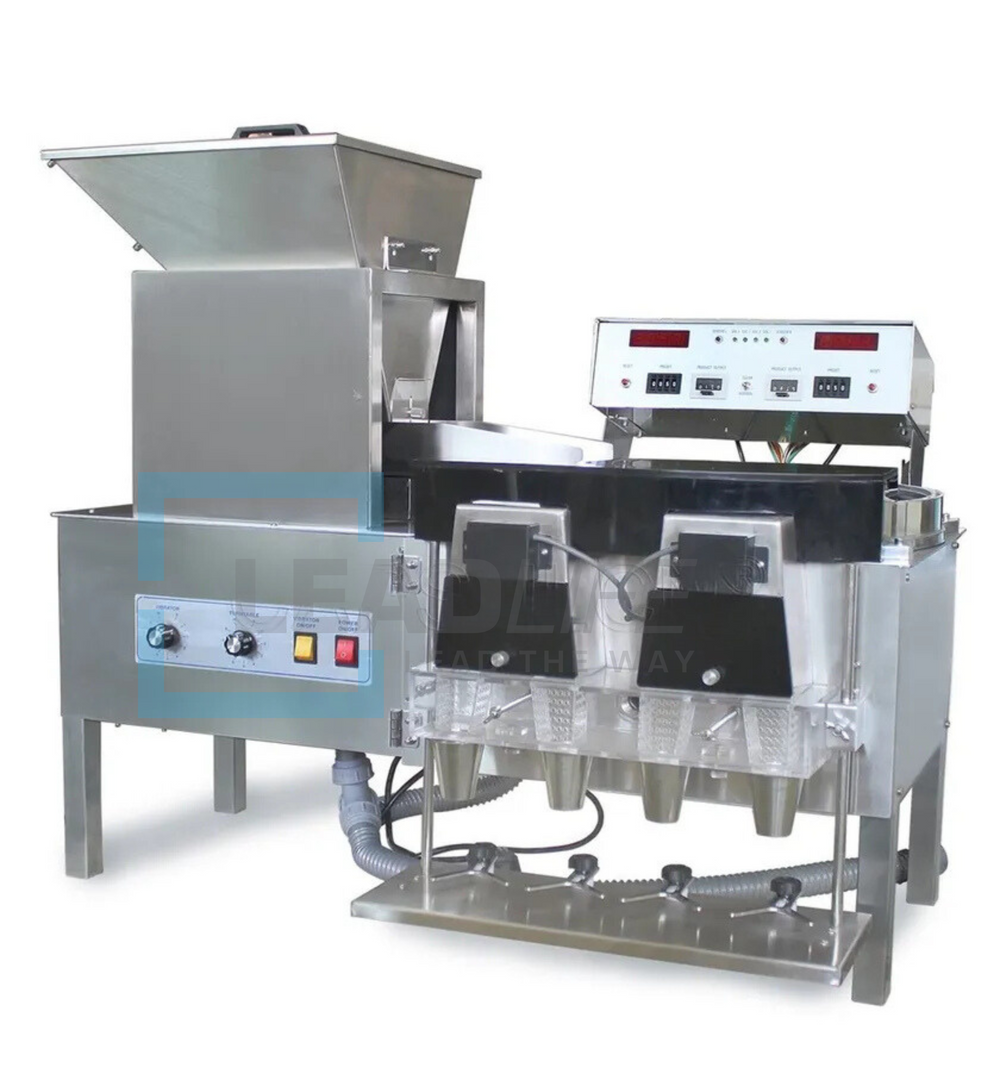

Pill Counter Machine BS Series
LL-H Pill Counter Machine has been designed and developed to count & fill different shapes or size of products accurately like soft gel capsules, hard pill capsules, pill tablets, sugar coating, and film coating tablets, pills, herb medicine or similar products into containers or vials.
Introduction of Pill Counter Machine BS Series
This machine has been designed and developed to count & fill different shapes or size of products accurately like soft gel capsules, hard capsules, tablets, sugar coating, and film coating tablets, pills, herb medicine or similar products into containers or vials.
The machine can be adjusted to count capsules or tablets between 1-9999 pcs per bottle without changing spare parts.
Pill Counter Machine BS Series Specifications
| Model |
1BS |
2BS |
4BS |
| Size of tablet |
Max. Dia.12mm |
Max. Dia.20mm |
Max. Dia.23mm |
| Size of bottle |
15-500ML |
15-500ML |
15-500ML |
| Output |
200-800pcs/min |
1000-1800pcs/min |
2000-3500pcs/min |
| Power |
100W |
150W |
200W |
| Voltage |
110V 60Hz / 220V 50Hz |
110V 60Hz / 220V 50Hz |
110V 60Hz / 220V 50Hz |
| Weight |
22kg |
65kg |
75kg |
| Dimensions |
400x360x550mm |
820x830x350mm |
980x790x930mm |
Remarks
- Well design structure, easy to maintain and clean.
- All parts are easy to exchange, including PC boards of control system.
- All product contact parts are made of SUS 316.

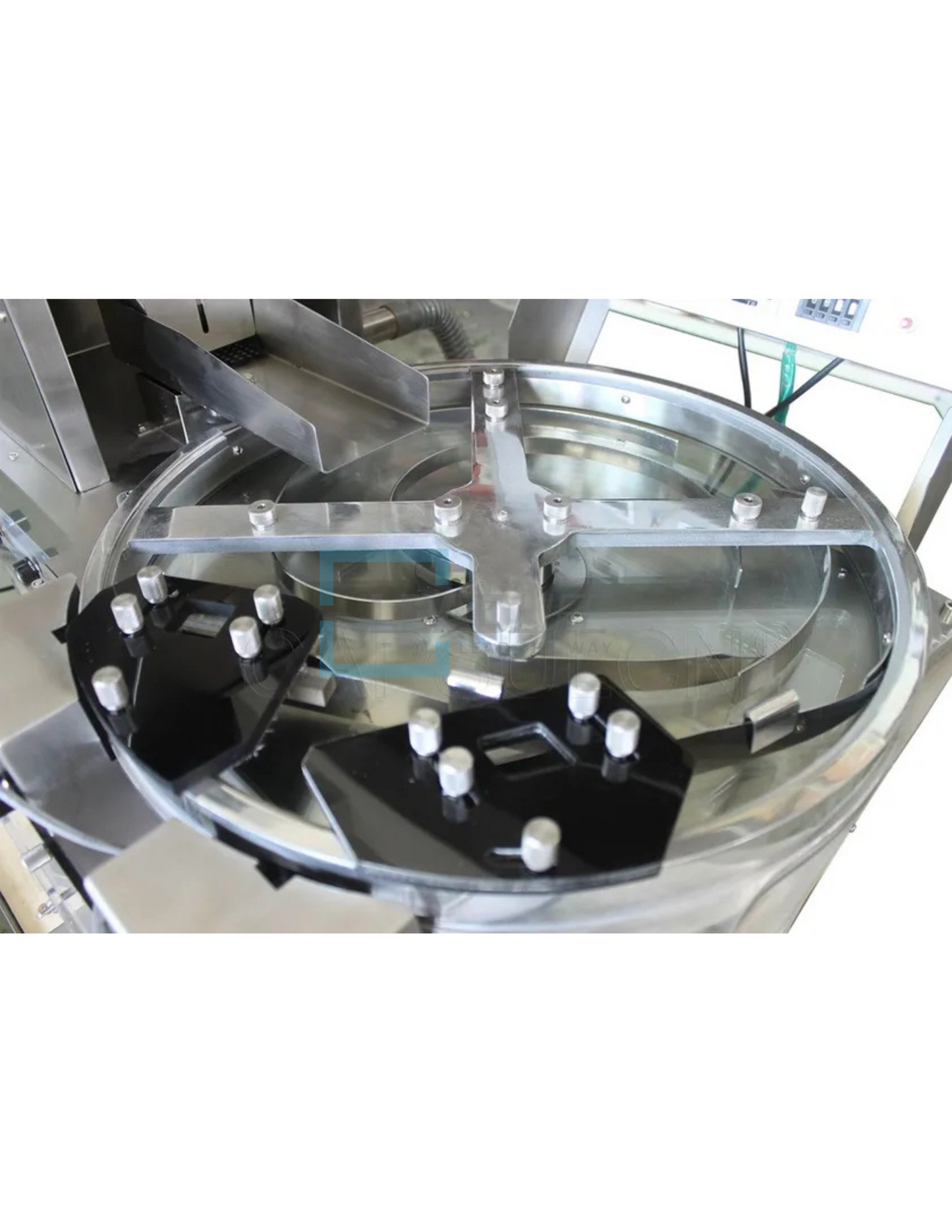

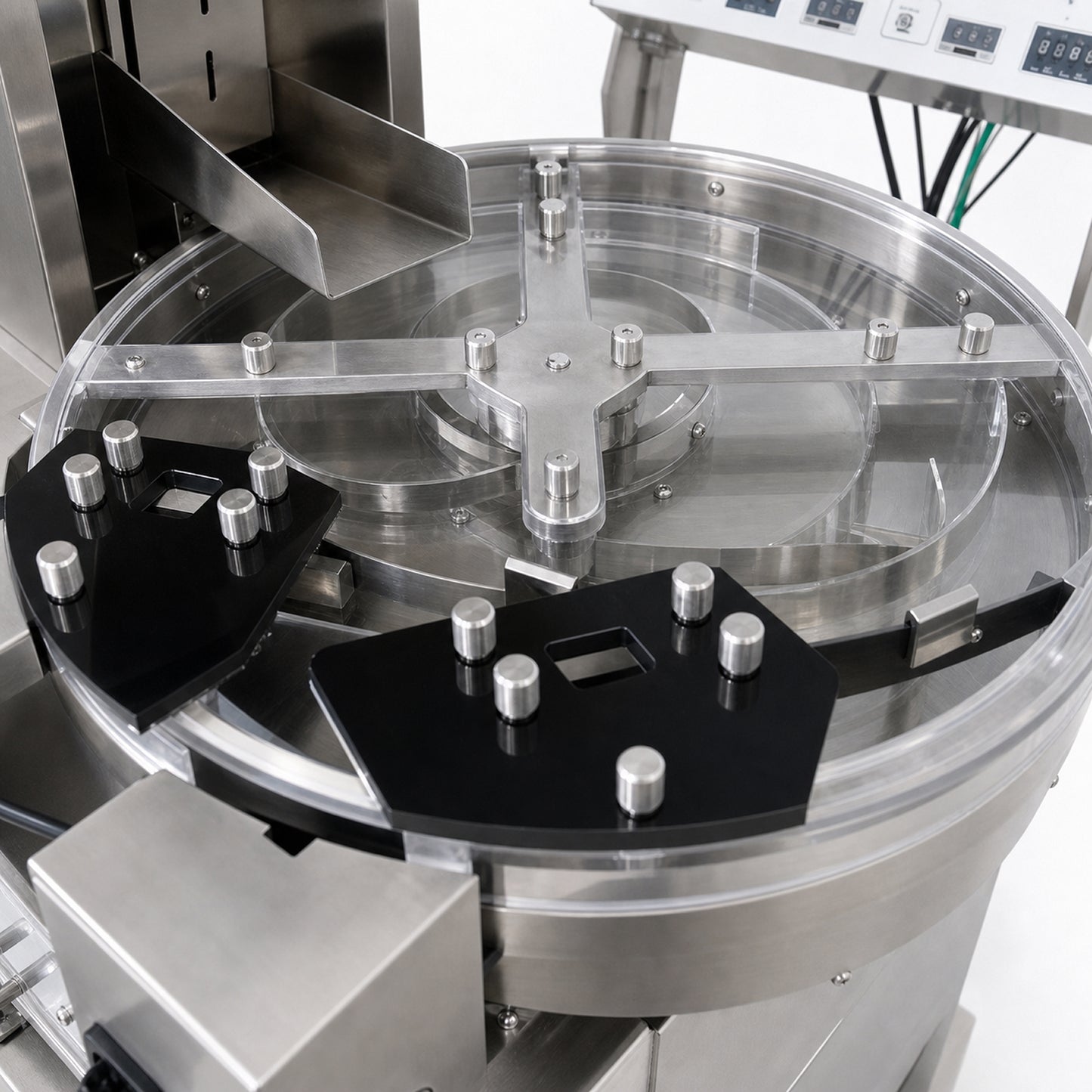

- Smooth rotary system with computerized counter make high accuracy.
- Infrared recognize system can recognize the transparent soft gel capsule. Even though after the long time running, It still can penetrates the dust built by the naked tablet.
- One conveyor for bottles transmission with speed variation.
