600-HOLE MANUAL FILLER • ACRYLIC PRO • U.S. STOCK

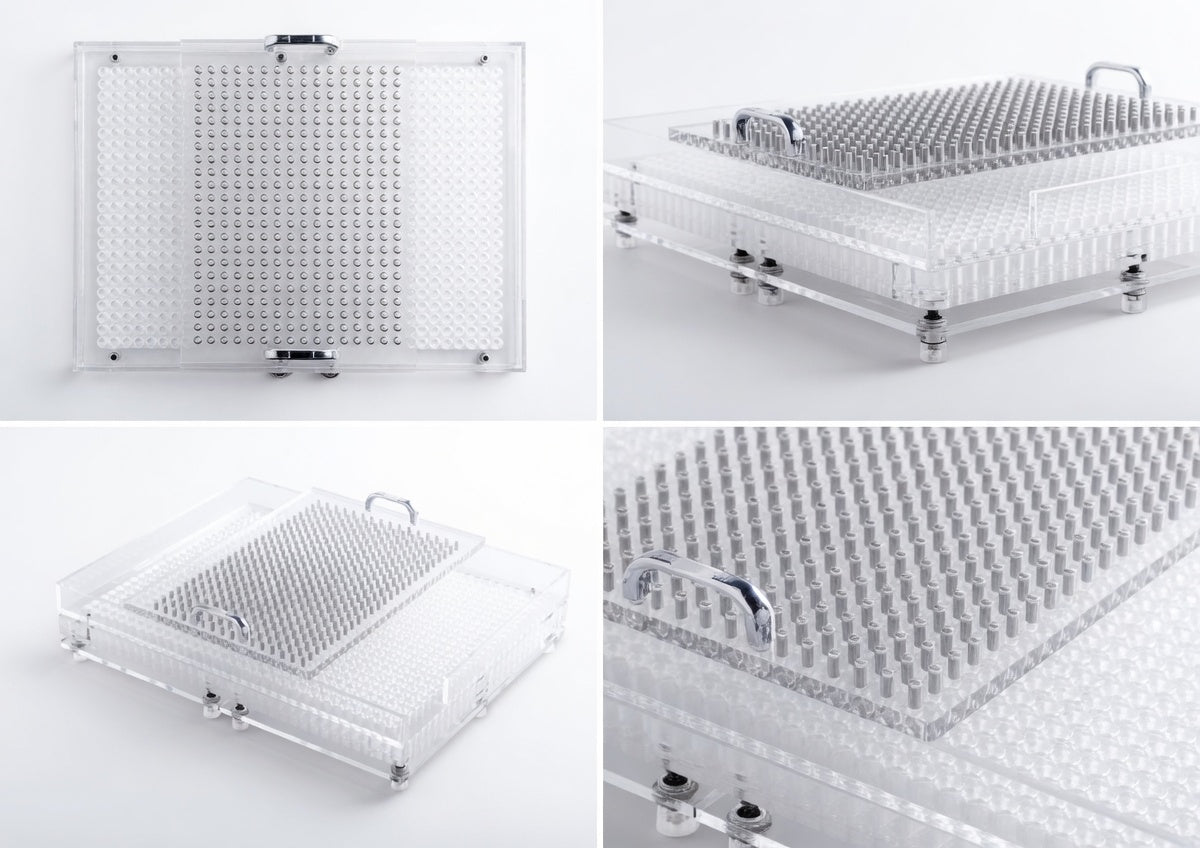

600-Hole Manual Capsule Filling Machine — Acrylic Pro
A higher-throughput 600-hole manual capsule filling machine designed for small-batch capsule filling. Suitable for R&D, pilot batches, clinics, serious home formulators, and supplement production. Available for capsule sizes 000, 00, 0, 1, 2, 3, 4, and 5 — each plate is size-specific.
Important: Each capsule filler is configured for the capsule size selected at checkout. One machine does not include all capsule sizes from 000–5.
⚡
600 Capsules Per Cycle
Typical output around 6,000–12,000 capsules per hour, depending on operator workflow and powder flow.
📏
Sizes 000–5
Choose the correct size-specific plate for your capsule size before ordering.
🧪
Pilot Batch Ready
Ideal for formula testing, sample runs, and small-to-medium supplement production.
🫧
Easy to Clean
Food-grade acrylic plates with stainless hardware. Hand wash with mild soap; dry before storage.
Premium Manual Filling for Serious Small-Batch Production
The Acrylic Pro 600-hole manual capsule filler is designed for users who need higher output than a standard small manual board, but are not yet ready for a powered semi-automatic capsule filling machine such as the JTJ-V. Durable food-grade acrylic plates, stainless hardware, stable alignment, and included filling tools help improve workflow, reduce batch time, and keep the manual encapsulation process clean.
- Designed for small-batch capsule filling
- Suitable for R&D, pilot batches, clinics, and supplement production
- Supports gelatin and vegetarian HPMC capsules
- Simple operation with no power required
- Food-grade acrylic plates with stainless hardware
- Easy to clean by hand
Browse the full range in our Manual Capsule Fillers collection, or read our step-by-step manual capsule filling tutorial.
Product Specifications
| Model |
Acrylic Pro 600-Hole Manual Capsule Filler |
| Capacity |
600 capsules per cycle |
| Supported Sizes |
000, 00, 0, 1, 2, 3, 4, 5 (size-specific plates) |
| Typical Output |
Approx. 6,000–12,000 capsules/hour, depending on operator workflow and powder flow |
| Material |
Food-grade acrylic plates with stainless hardware |
| Cleaning |
Hand wash only; mild soap; non-dishwasher |
| Warranty |
12 months |
| Best For |
Labs, R&D, pilot runs, serious home formulators, small-to-medium batches |
What’s Included
600-hole filler base & alignment plates
Size-specific capsule tray
Tamper
Powder spreader card
Quick-start support
Manual vs Semi-Automatic: When Should You Upgrade?
| Model |
Typical Output |
Best For |
| Manual 100-Hole |
Approx. 1,000–2,000 caps/hour |
Small batches, trials, home use |
| Manual 600-Hole Acrylic Pro |
Approx. 6,000–12,000 caps/hour |
R&D, pilot runs, small production |
| Semi-Automatic JTJ-V |
10,000–23,000 caps/hour |
Commercial production |
For higher output, see the
JTJ-V Semi-Automatic Capsule Filling Machine,
browse all
Semi-Automatic Capsule Filling Machines,
or explore
Automatic Capsule Filling Machines.
Complete Your Capsule Filling Setup
Leadlife Advantage
- U.S. stock for faster dispatch
- Manual, semi-automatic, and automatic machine options
- Empty capsules and equipment available in one place
- Support from small-batch testing to full production line setup
Need Help Choosing the Right Size?
Tell us your capsule size, formula type, and target batch volume. We’ll help you choose the right filler and capsule supply for your production.
Frequently Asked Questions
Which capsule sizes does this 600-hole filler support?
This product is available for capsule sizes 000, 00, 0, 1, 2, 3, 4, and 5. Each plate is size-specific, so choose the correct size before ordering.
How many capsules can I fill per cycle?
This Acrylic Pro manual capsule filler fills 600 capsules per cycle.
How many capsules per hour can I make?
Typical output is approximately 6,000–12,000 capsules per hour depending on operator workflow, powder flowability, and fill weight.
Can one plate fill multiple capsule sizes?
No. Manual capsule filling plates are size-specific. If you want to fill multiple capsule sizes, you need separate plates or separate fillers for each size.
What powders work best?
Free-flowing powders generally work best. Sticky, fluffy, or poorly flowing powders may require testing, proper excipients, or modified filling technique.
How should I clean this capsule filler?
Hand wash with mild soap and water. Do not place acrylic plates in a dishwasher, and do not use harsh solvents. Dry completely before storage.
When should I upgrade to a semi-automatic capsule filling machine?
If you need higher daily output or more consistent production than a manual workflow provides, consider upgrading to a semi-automatic capsule filling machine such as the JTJ-V.
