800-Hole Manual Capsule Filler, Acrylic Pro

Name: 800-Hole Manual Capsule Filling Machine – Select One Capsule Size, Acrylic Pro
Brand: Leadlife
SKU: MCH-800ACR-S000
Availability: InStock

800-HOLE MANUAL FILLER • ACRYLIC PRO • U.S. STOCK

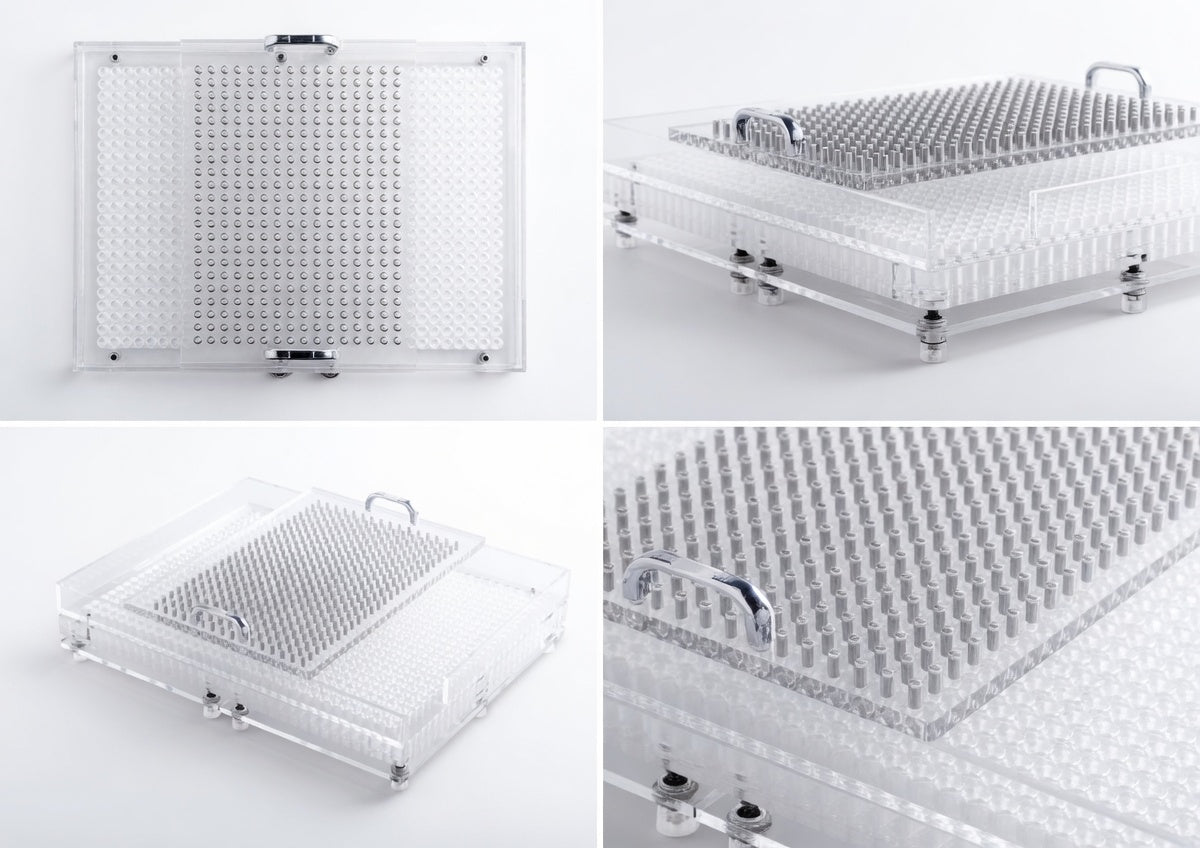

800-Hole Manual Capsule Filling Machine — Acrylic Pro

A high-throughput 800-hole manual capsule filling machine designed for small-batch capsule filling without stepping into powered equipment. Suitable for R&D, pilot batches, clinics, and supplement production. Available for capsule sizes 000, 00, 0, 1, 2, 3, 4, and 5 — each plate is size-specific.

Important: Each capsule filler is configured for the capsule size selected at checkout. One machine does not include all capsule sizes from 000–5.

View Specs FAQs Contact Us

⚡

800 Capsules Per Cycle

Reduce batching time versus 100, 187, and 400-hole manual plates. Output depends on operator speed, powder flow, capsule size, and workflow setup.

📏

Sizes 000–5

Choose the correct size-specific plate for your capsule size before ordering.

🧪

Pilot Batch Ready

Ideal for formulation testing, pilot runs, and early-stage supplement production.

🫧

Durable & Easy to Clean

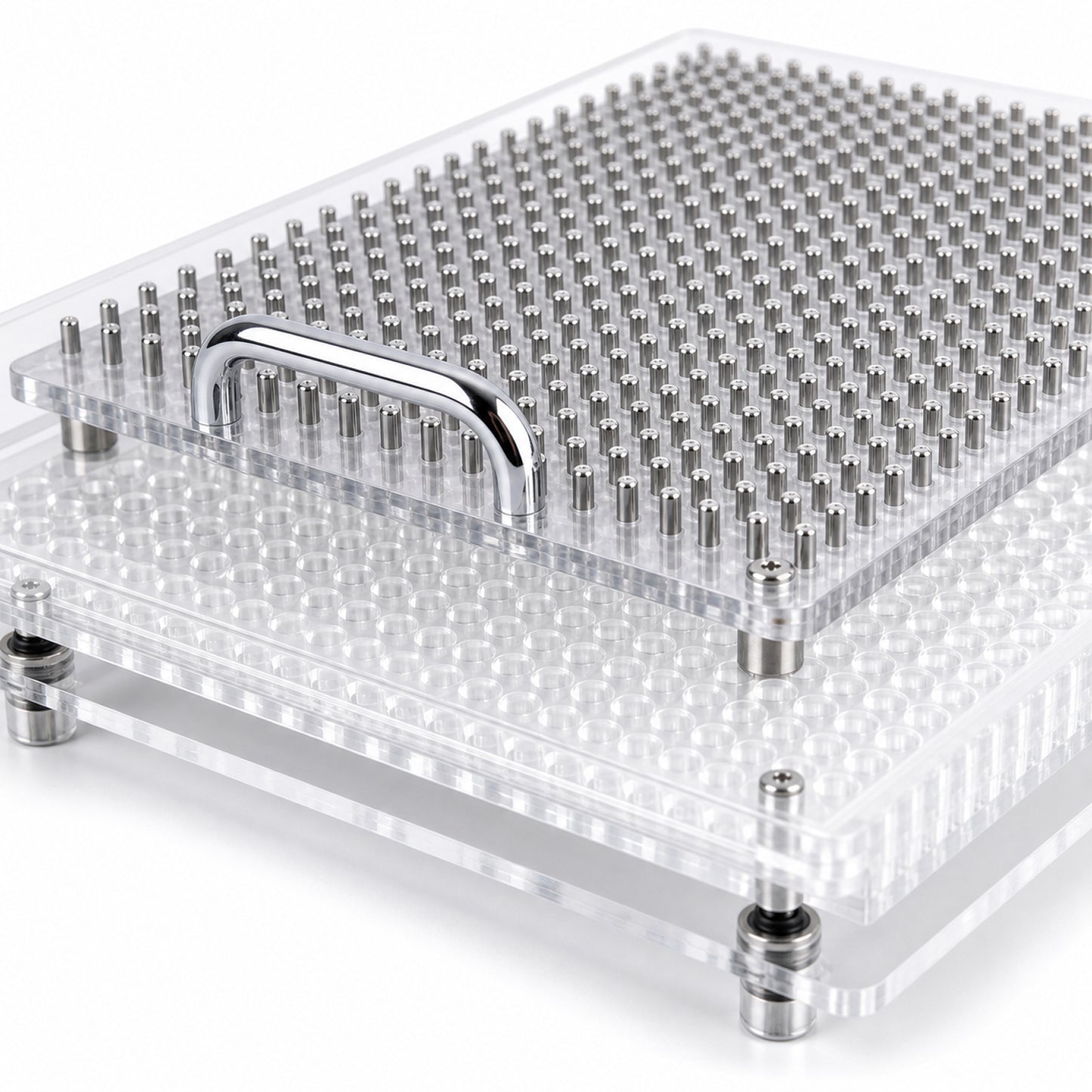

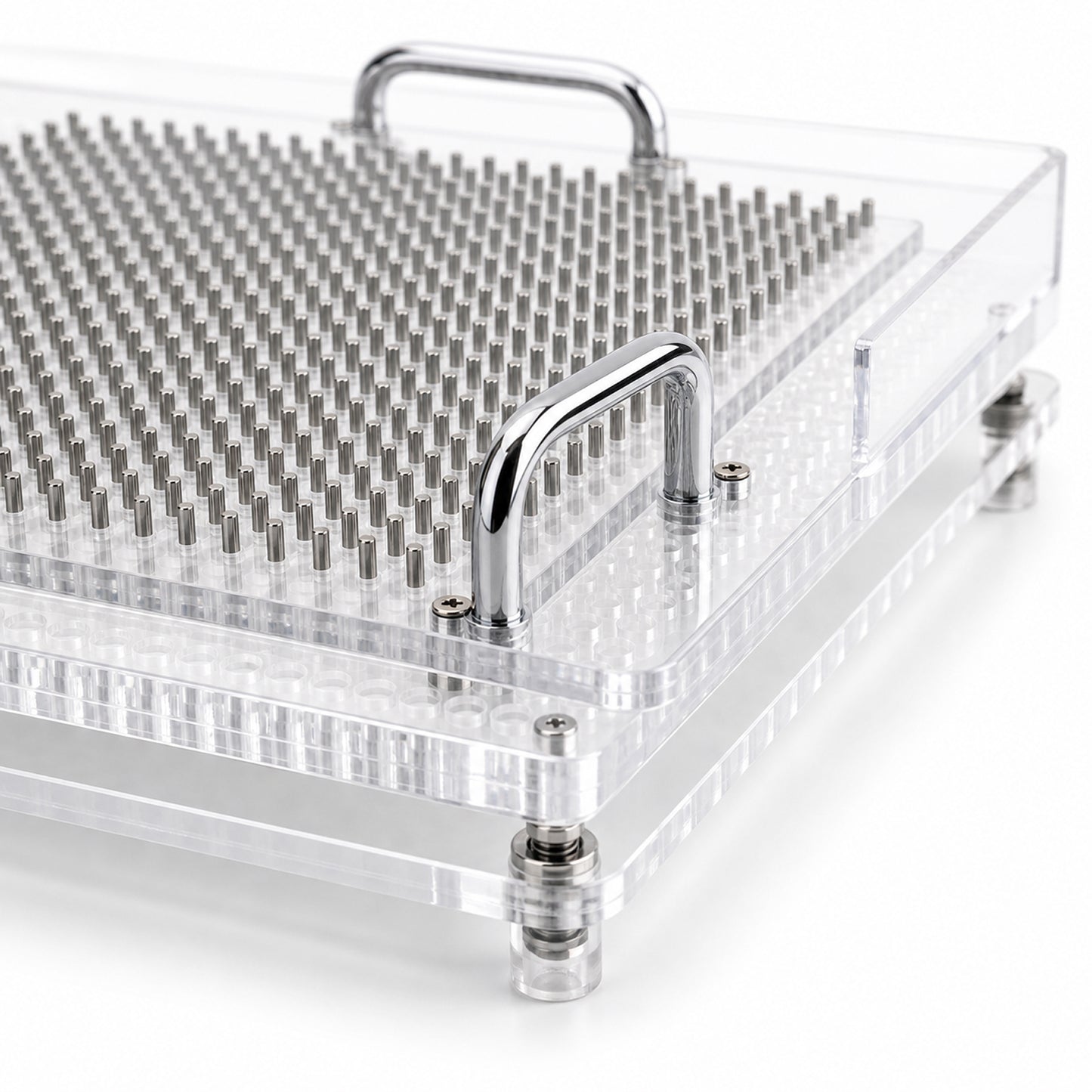

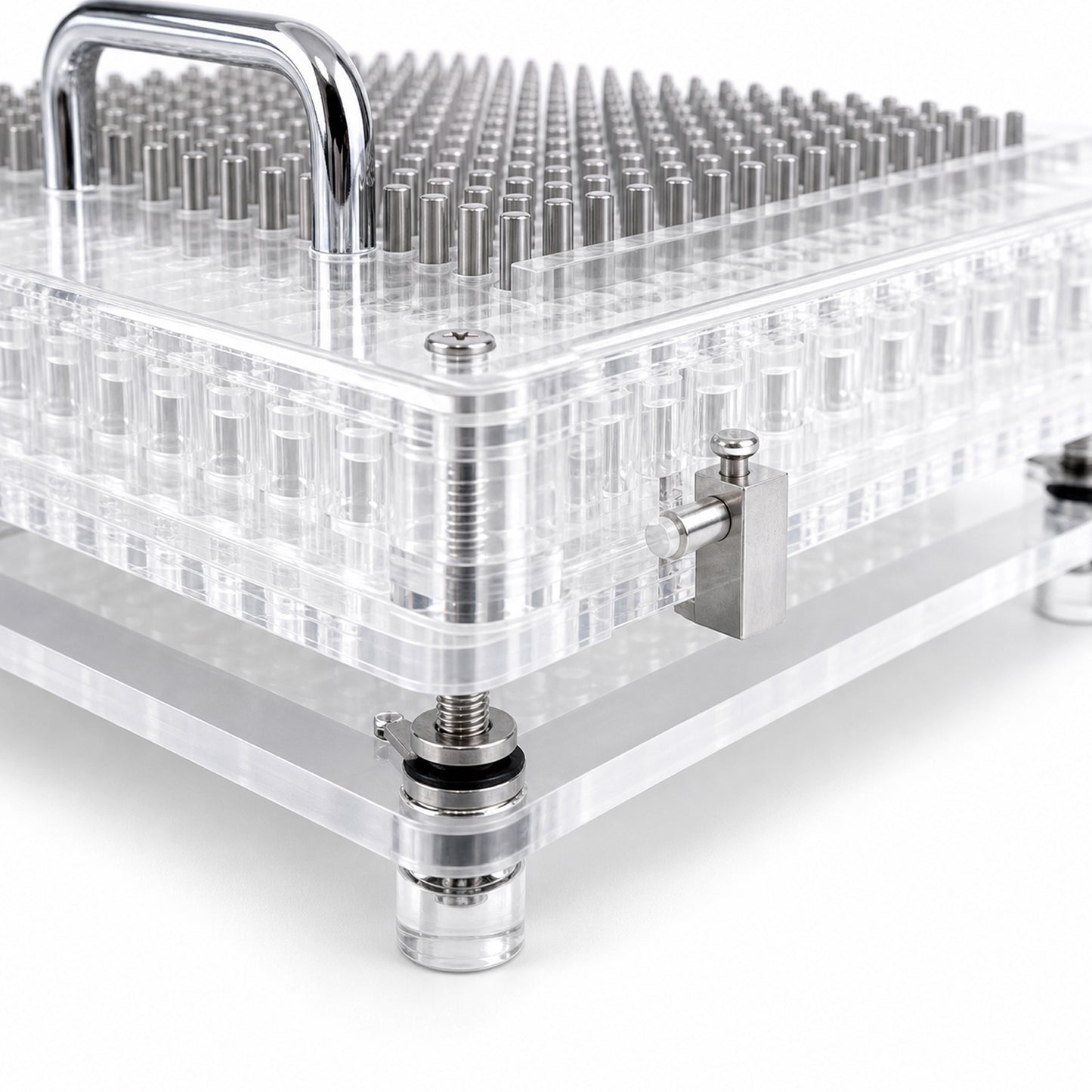

Durable acrylic plates with stainless hardware. Hand wash with mild soap; dry before storage.

High-Output Manual Capsule Filling Without Automation Cost

The 800-hole Acrylic Pro manual capsule filling machine is built for teams that need more production capacity than small manual boards, but are not yet ready for a semi-automatic capsule filling machine such as the JTJ-V. Size-specific plates help align, fill, and lock capsules consistently, and the compact tabletop design fits labs and small production rooms.

Designed for small-batch capsule filling
Suitable for R&D, pilot batches, clinics, and supplement production
Supports gelatin and vegetarian HPMC capsules
Simple operation with no power required
Durable acrylic plates with stainless hardware
Easy to clean by hand

Browse the full range in our Manual Capsule Fillers collection, or read our step-by-step manual capsule filling tutorial.

Product Specifications

Model	Acrylic Pro 800-Hole Manual Capsule Filler
Capacity	800 capsules per cycle
Supported Sizes	000, 00, 0, 1, 2, 3, 4, 5 (size-specific plates)
Typical Output	Operator-dependent; depends on operator speed, powder flow, capsule size, and workflow setup
Material	Acrylic plates with stainless hardware
Compatible Capsules	Gelatin capsules and vegetarian HPMC capsules
Cleaning	Hand wash only; mild soap; non-dishwasher
Warranty	12 months
Best For	R&D, pilot runs, startups, small-batch supplement production

What’s Included

800-hole filler base

Size-specific plate set

Alignment / guide plates

Tamper & powder spreader card

Quick-start support

Manual vs Semi-Automatic: When Should You Upgrade?

Option	Best For	Typical Output
800-Hole Manual Acrylic Pro	R&D, pilot runs, small batches	Operator-dependent; 800 capsules/cycle
Semi-Automatic JTJ-V	Commercial production	10,000–23,000 caps/hour

For higher output, see the JTJ-V Semi-Automatic Capsule Filling Machine, browse all Semi-Automatic Capsule Filling Machines, or explore Automatic Capsule Filling Machines.

Complete Your Capsule Filling Setup

Leadlife Advantage

U.S. stock for faster dispatch
Manual, semi-automatic, and automatic machine options
Empty capsules and equipment available in one place
Support from small-batch testing to full production line setup

Need Help Choosing the Right Capsule Size or Machine?

Tell us your capsule size, formula type, and production goal. We’ll help you select the right manual filler, capsules, and upgrade path.

Shop Empty Capsules Contact Leadlife Call 323-215-9729

Frequently Asked Questions

Which capsule sizes does this 800-hole filler support?

This product is available for capsule sizes 000, 00, 0, 1, 2, 3, 4, and 5. Each plate is size-specific, so choose the correct size before ordering.

How many capsules can I fill per cycle?

This Acrylic Pro manual capsule filler fills up to 800 capsules per cycle.

How fast can I run?

Throughput is operator-dependent and varies with powder flow, capsule size, and workflow setup. The 800-hole layout significantly reduces cycles versus smaller trays.

Can one plate fill multiple capsule sizes?

No. Manual capsule filling plates are size-specific. If you want to fill multiple capsule sizes, you need separate plates or separate fillers for each size.

Can I use gelatin and vegetarian HPMC capsules?

Yes. This filler works with properly matched gelatin and vegetarian HPMC capsules as long as the capsule size matches your selected plate.

How should I clean this capsule filler?

Hand wash with mild soap and water. Do not place acrylic plates in a dishwasher, and do not use harsh solvents. Dry completely before storage.

When should I upgrade to a semi-automatic capsule filling machine?

If you need higher daily output or more consistent production than a manual workflow provides, consider upgrading to a semi-automatic capsule filling machine such as the JTJ-V.
