400 Holes Capsule Filling Machine, The PE Series.

Name: 400 Holes Capsule Filling Machine, The PE Series.
Brand: Leadlife
SKU: MCH-400PE-S0
Availability: InStock

400-HOLE MANUAL FILLER • PE SERIES • U.S. STOCK

400-Hole Manual Capsule Filling Machine — PE Series

A durable 400-hole manual capsule filling machine built for labs, pilot runs, and small brands that need higher throughput than a 100-hole tray. Designed for small-batch capsule filling and suitable for R&D, pilot batches, clinics, and supplement production. Available for capsule sizes 00, 0, or 1 — each plate is size-specific.

View Specs FAQs Contact Us

⚡

400 Capsules Per Cycle

Typical output around 4,000–8,000 capsules per hour, depending on powder flow and operator pace.

📏

Sizes 00, 0, 1

Choose the correct size-specific plate for your capsule size before ordering.

🧪

Pilot Batch Ready

Ideal for testing formulas, samples, and pilot runs before scaling to semi-automatic production.

🫧

Durable & Easy to Clean

Food-grade plates with stainless hardware, flat stable base, and smooth edges. Hand wash with mild soap.

Consistent Small-Batch Filling With Precise Hole Tolerances

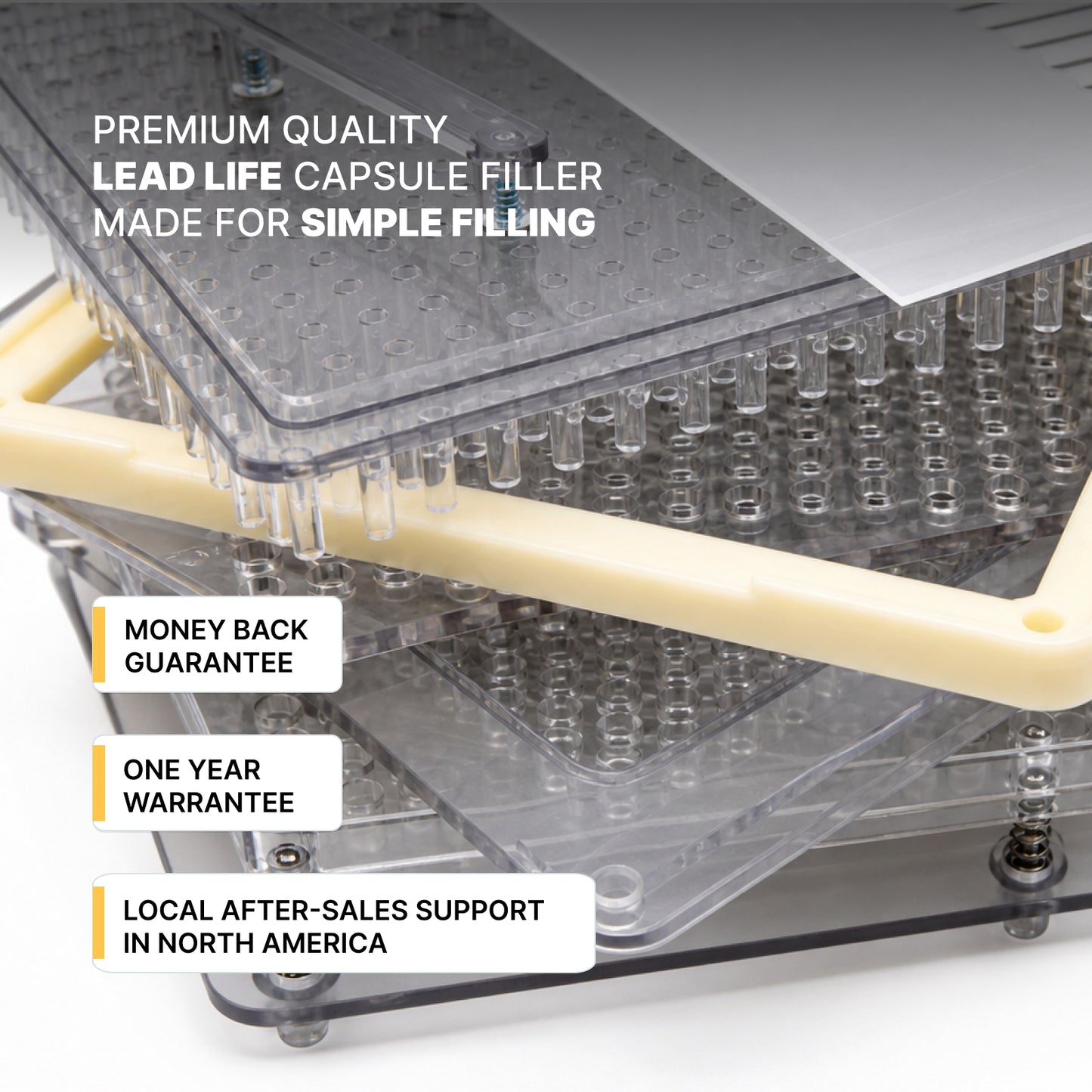

The PE Series 400-hole manual capsule filler aligns, fills, and joins capsules quickly with durable food-grade plates and precise hole tolerances. The included tamper helps achieve consistent packing density, and clear size markings speed up setup for new operators.

Designed for small-batch capsule filling
Suitable for R&D, pilot batches, clinics, and supplement production
Supports gelatin and vegetarian HPMC capsules
Simple operation with no power required
Flat base with anti-slip pads for stable filling
Easy to clean by hand

Browse the full range in our Manual Capsule Fillers collection, or read our step-by-step manual capsule filling tutorial.

Product Specifications

Model	PE Series 400-Hole Manual Capsule Filler
Capacity	400 capsules per cycle
Supported Sizes	00, 0, or 1 (size-specific plates; select model)
Typical Output	Approx. 4,000–8,000 capsules/hour, depending on powder flow and operator pace
Material	Food-grade plates with stainless hardware
Dimensions	Approx. 10 × 12 × 4 in
Net Weight	Approx. 4–6 lb
Cleaning	Hand wash only; mild soap; non-dishwasher
Warranty	12 months
Best For	Small batches, R&D, pilot runs, home formulators

What’s Included

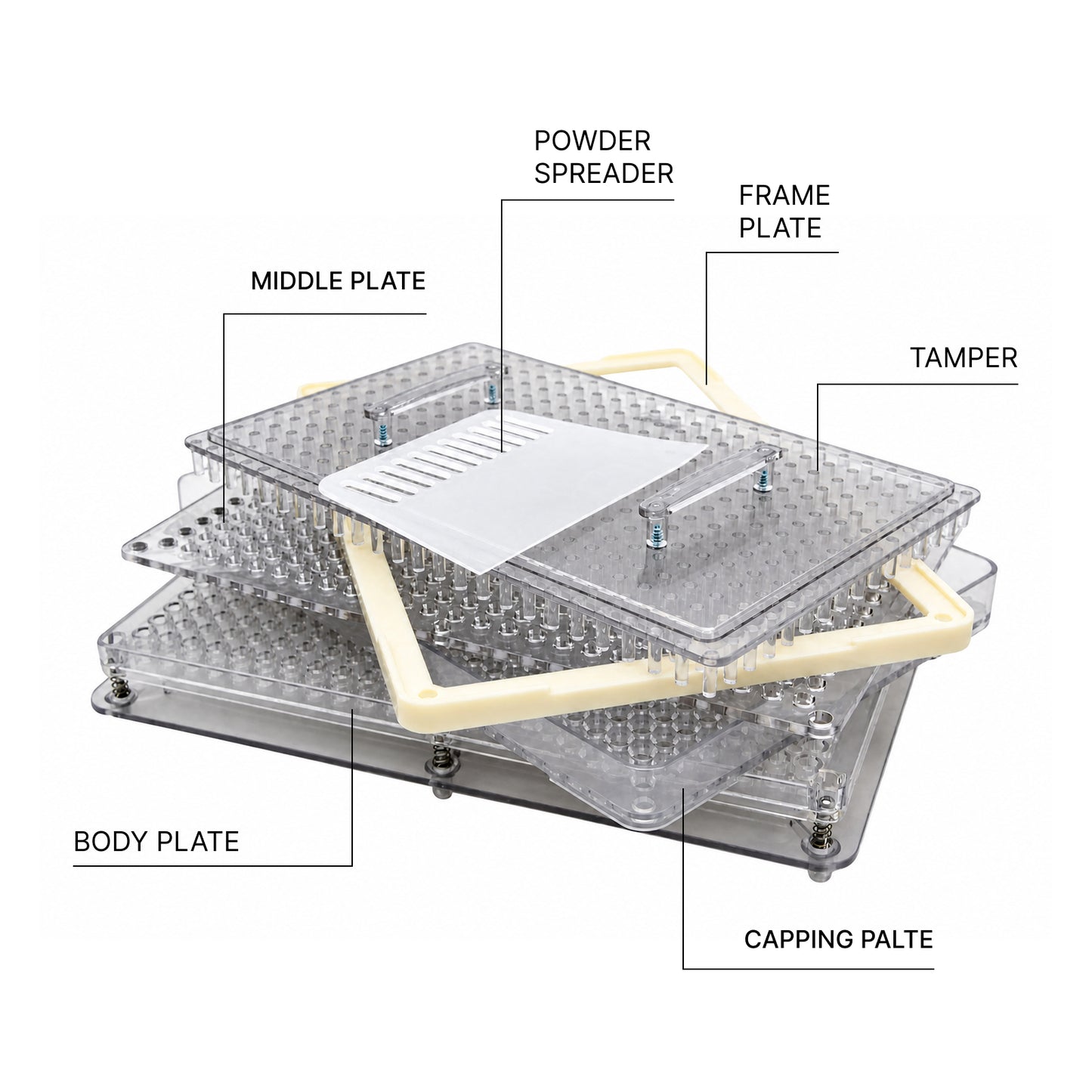

400-hole filler base & size-specific alignment plate

Capsule tray

Tamper & powder spreader

Quick-start PDF & setup video

Email support from the Leadlife team

Setup Video

Manual vs Semi-Automatic: When Should You Upgrade?

Model	Typical Output	Best For
Manual 100-Hole	Approx. 1,000–2,000 caps/hour	Home use, very small runs
Manual 400-Hole PE Series	Approx. 4,000–8,000 caps/hour	R&D, small batches
Semi-Automatic JTJ-V	10,000–23,000 caps/hour	Commercial production

For higher output, see the JTJ-V Semi-Automatic Capsule Filling Machine, browse all Semi-Automatic Capsule Filling Machines, or explore Automatic Capsule Filling Machines.

Complete Your Capsule Filling Setup

Leadlife Advantage

U.S. stock for faster dispatch
Manual, semi-automatic, and automatic machine options
Empty capsules and equipment available in one place
Support from small-batch testing to full production line setup

Need Help Choosing Capsule Size or Series?

Tell us your formula, capsule size, and production goal. We’ll help you choose the right capsule and machine setup for your small-batch production.

Shop Empty Capsules Contact Leadlife Call 323-215-9729

Frequently Asked Questions

Which capsule sizes does this 400-hole filler support?

This model is available for capsule sizes 00, 0, or 1. Each PE Series plate is size-specific, so choose the correct size before ordering.

How many capsules can I fill per cycle?

This PE Series manual capsule filler fills 400 capsules per cycle.

How many capsules per hour can I make?

Typical output is approximately 4,000–8,000 capsules per hour depending on powder flow and operator pace.

Can one plate fill multiple capsule sizes?

No. Manual capsule filling plates are size-specific. If you want to fill multiple capsule sizes, you need separate plates or separate fillers for each size.

Can I use gelatin and vegetarian HPMC capsules?

Yes. This filler works with properly matched gelatin and vegetarian HPMC capsules as long as the capsule size matches your selected plate.

How should I clean this capsule filler?

Hand wash with mild soap and water. Do not place it in a dishwasher, and do not use harsh solvents. Dry completely before storage.

When should I upgrade to a semi-automatic capsule filling machine?

If you need higher daily output or more consistent production than a manual workflow provides, consider upgrading to a semi-automatic capsule filling machine such as the JTJ-V.
