400-HOLE MANUAL FILLER • i SERIES • U.S. STOCK
400-Hole Manual Capsule Filling Machine — i Series
A precision-focused 400-hole manual capsule filling machine for labs, nutraceutical brands, and R&D teams that need fast, repeatable small-batch capsule filling. Suitable for R&D, pilot batches, clinics, and supplement production. Available for capsule sizes 00, 0, or 1 — each plate is size-specific.
⚡
400 Capsules Per Cycle
Typical output around 3,000–8,000 capsules per hour, depending on operator pace, powder flow, and workflow setup.
📏
Sizes 00, 0, 1
Choose the correct size-specific plate for your capsule size before ordering.
🧪
Pilot Batch Ready
Ideal for testing formulas, samples, and pilot runs before scaling to semi-automatic production.
🫧
Easy to Clean
Smooth food-grade surfaces with stainless hardware and no sharp edges. Hand wash with mild soap; dry before storage.
The i Series: Refined Precision for Small-Batch Filling
The i Series manual capsule fillers are designed with improved alignment, tighter tolerances, and refined production processes for better precision and repeatability. A stiffer frame and improved alignment plates support cleaner joins and fewer rejects — ideal when you’ve outgrown basic trays but don’t need a semi-automatic capsule filling machine such as the JTJ-V yet.
Designed for small-batch capsule filling
Suitable for R&D, pilot batches, clinics, and supplement production
Clear markings and anti-slip feet speed up setup and reduce spills
Included tamper helps support even packing
Supports gelatin and vegetarian HPMC capsules
Easy to clean by hand
Browse the full range in our Manual Capsule Fillers collection , or read our step-by-step manual capsule filling tutorial .
Product Specifications
Model i Series 400-Hole Manual Capsule Filler
Capacity 400 capsules per cycle
Supported Sizes 00, 0, or 1 (size-specific plates; select model)
Typical Output Approx. 3,000–8,000 capsules/hour, depending on operator pace, powder flow, and workflow setup
Material Food-grade plastic with stainless hardware
Cleaning Hand wash only; mild soap; non-dishwasher
Warranty 12 months
Best For Labs, pilots, formulation R&D, small-batch brands

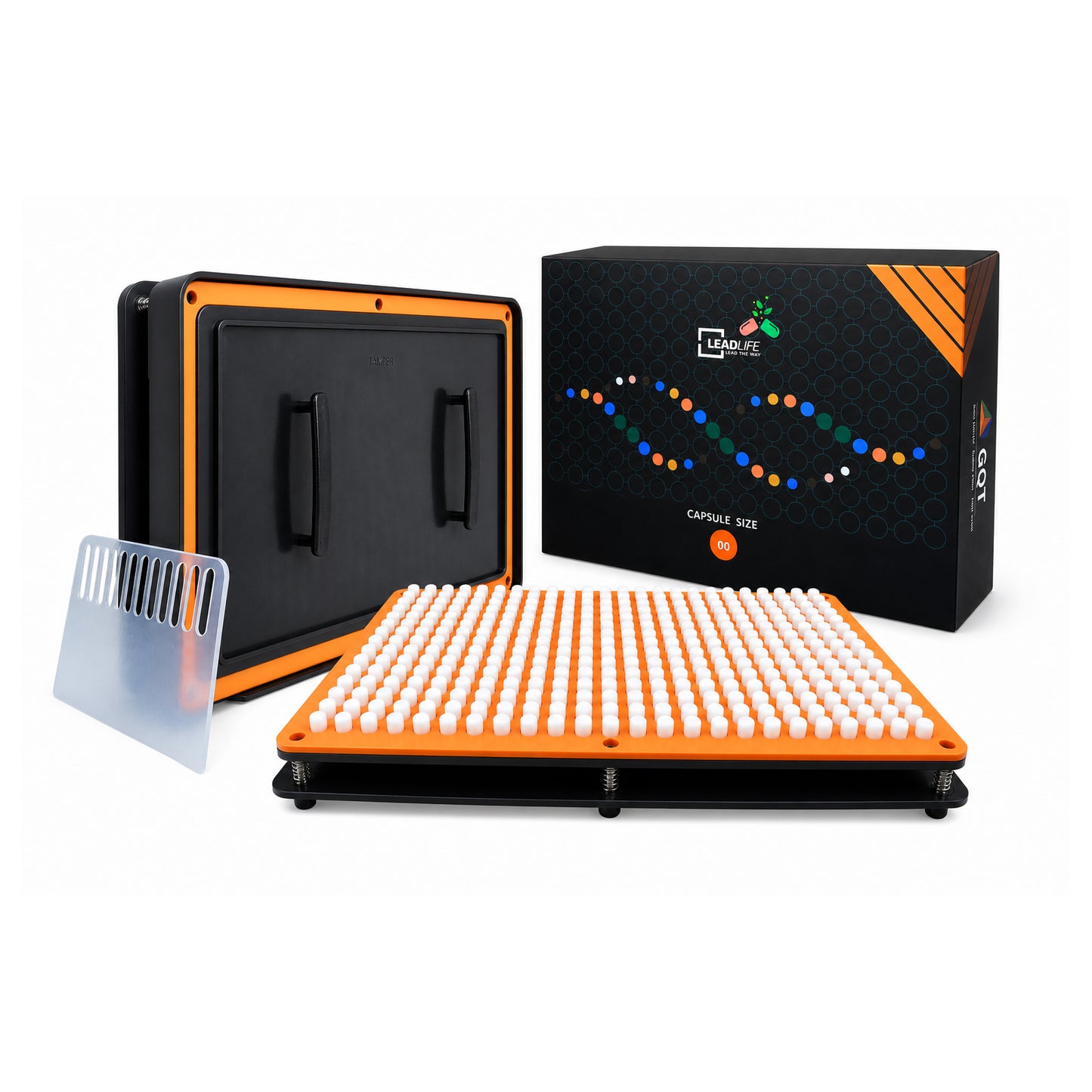

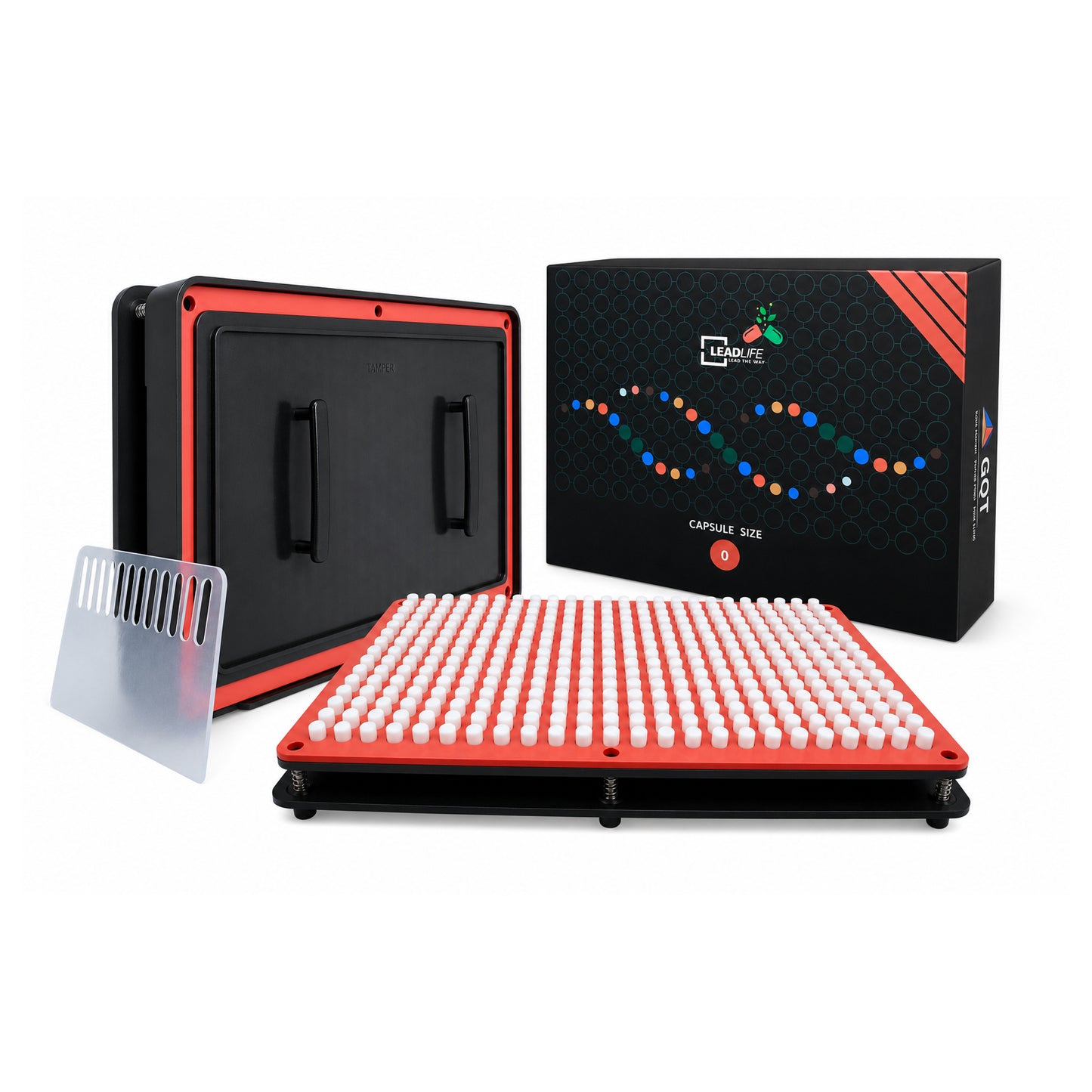

What’s Included

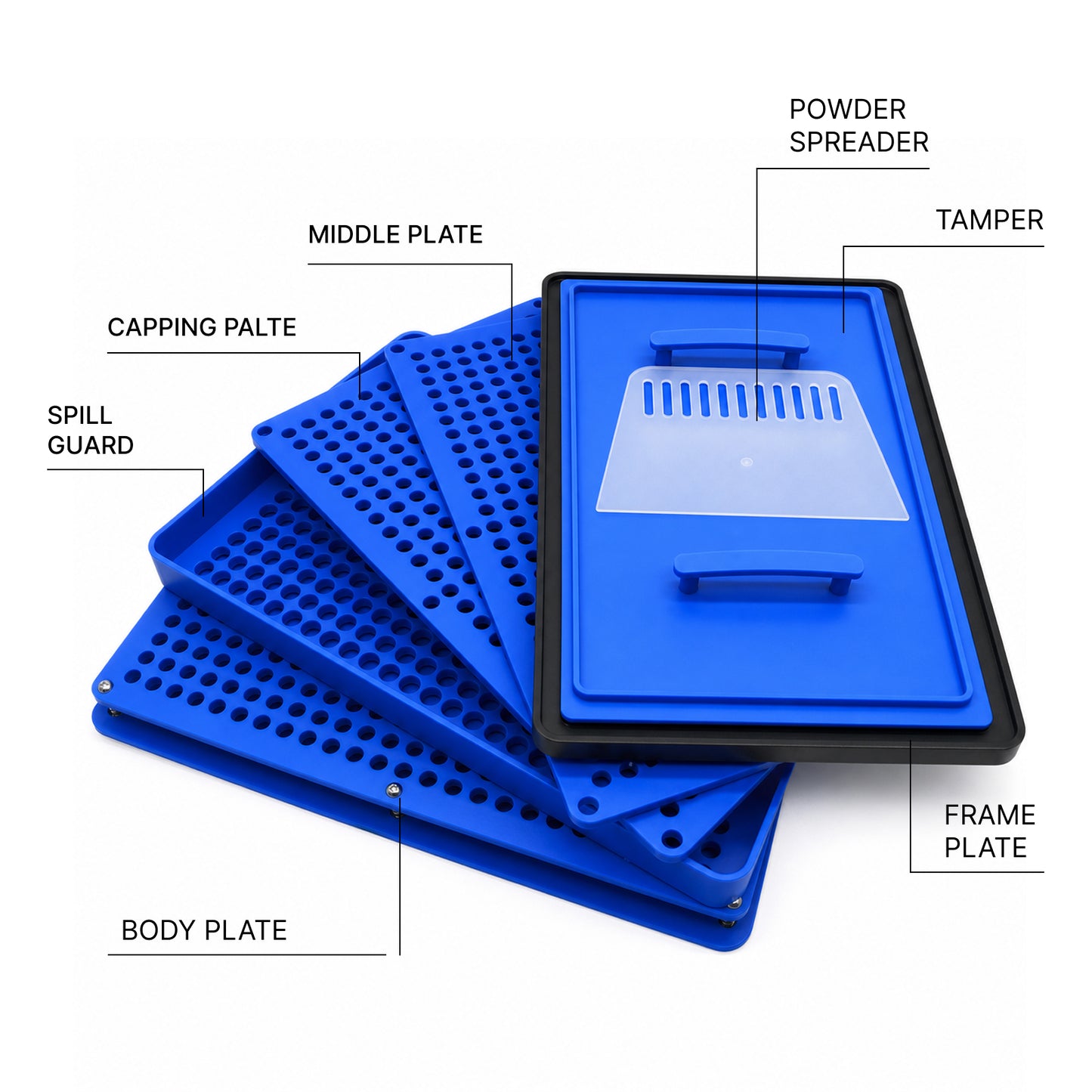

400-hole filler base & precision alignment plate
Capsule tray
Tamper & spreader card
Quick-start PDF & setup video
Email support from the Leadlife team
Setup Video
VIDEO
Manual vs Semi-Automatic: When Should You Upgrade?
Model
Typical Output
Best For
Manual 100-Hole
Approx. 1,000–2,000 caps/hour
Home use, very small runs
Manual 400-Hole i Series
Approx. 3,000–8,000 caps/hour
Labs, pilots, small-batch brands
Semi-Automatic JTJ-V
10,000–23,000 caps/hour
Commercial production
For higher output, see the
JTJ-V Semi-Automatic Capsule Filling Machine ,
browse all
Semi-Automatic Capsule Filling Machines ,
or explore
Automatic Capsule Filling Machines .
Complete Your Capsule Filling Setup
Leadlife Advantage
U.S. stock for faster dispatch
Manual, semi-automatic, and automatic machine options
Empty capsules and equipment available in one place
Support from small-batch testing to full production line setup
Need Help Choosing Capsule Size or Series?
Tell us your formula, capsule size, and production goal. We’ll help you choose the right capsule and machine setup for your small-batch production.
Frequently Asked Questions
Which capsule sizes does this 400-hole filler support?
This model is available for capsule sizes 00, 0, or 1. Each plate is size-specific, so choose the correct size before ordering.
How many capsules can I fill per cycle?
This i Series manual capsule filler fills 400 capsules per cycle.
How many capsules per hour can I make?
Typical output is approximately 3,000–8,000 capsules per hour depending on operator pace, powder flow, and workflow setup.
Can one plate fill multiple capsule sizes?
No. Manual capsule filling plates are size-specific. If you want to fill multiple capsule sizes, you need separate plates or separate fillers for each size.
What is the difference between the i Series and P Series manual capsule filling machines?
The i Series manual capsule fillers are designed with improved alignment, tighter tolerances, and refined production processes for better precision and repeatability. They offer stronger value for users who need more consistent small-batch capsule filling. The P Series is the baseline option for occasional or entry-level use. Both series are size-specific and should be selected based on the capsule size you plan to fill.
How should I clean this capsule filler?
Hand wash with mild soap and water. Do not place it in a dishwasher, and do not use harsh solvents. Dry completely before storage.
When should I upgrade to a semi-automatic capsule filling machine?
If you need higher daily output or more consistent production than a manual workflow provides, consider upgrading to a semi-automatic capsule filling machine such as the JTJ-V.
