HIGH-VOLUME POWDER BLENDER
Horizontal Ribbon Blender Powder Mixing Machine
Fast, uniform dry-powder blending from pilot batches to full production — twin-ribbon U-trough mixing for nutraceutical, pharmaceutical, and food powders.
View Specs
FAQs
Request Quote
🌀
1–300 Cu.Ft
Working capacities from pilot to full production scale.
🎯
Uniform Blending
Twin helical ribbon agitator for fast, even mixing.
🛡️
Stainless · GMP-Ready
304/316 stainless contact parts with #4 finish.
🇺🇸
U.S. Support
Local engineers, spare parts, and fast response.
High-volume powder blending

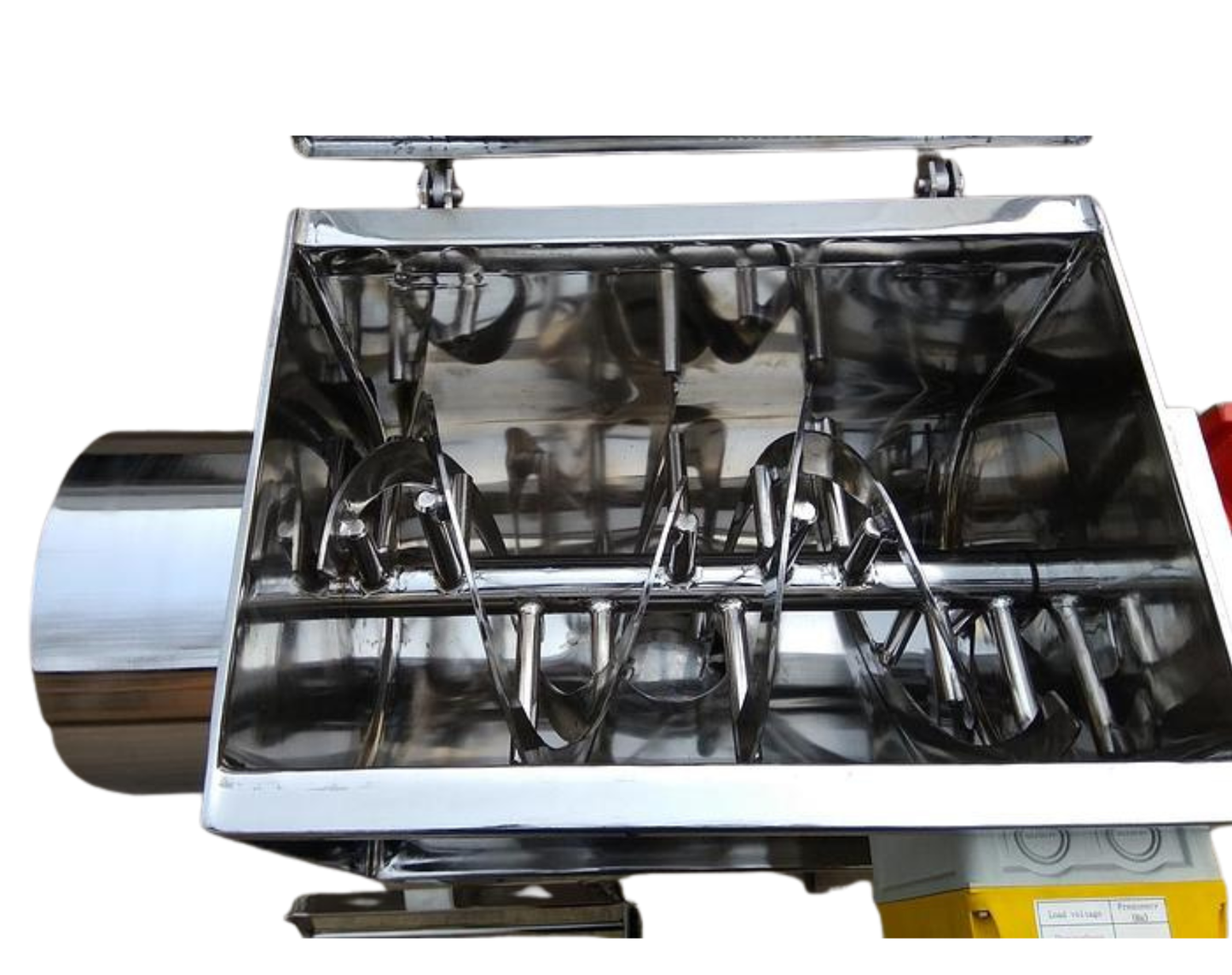

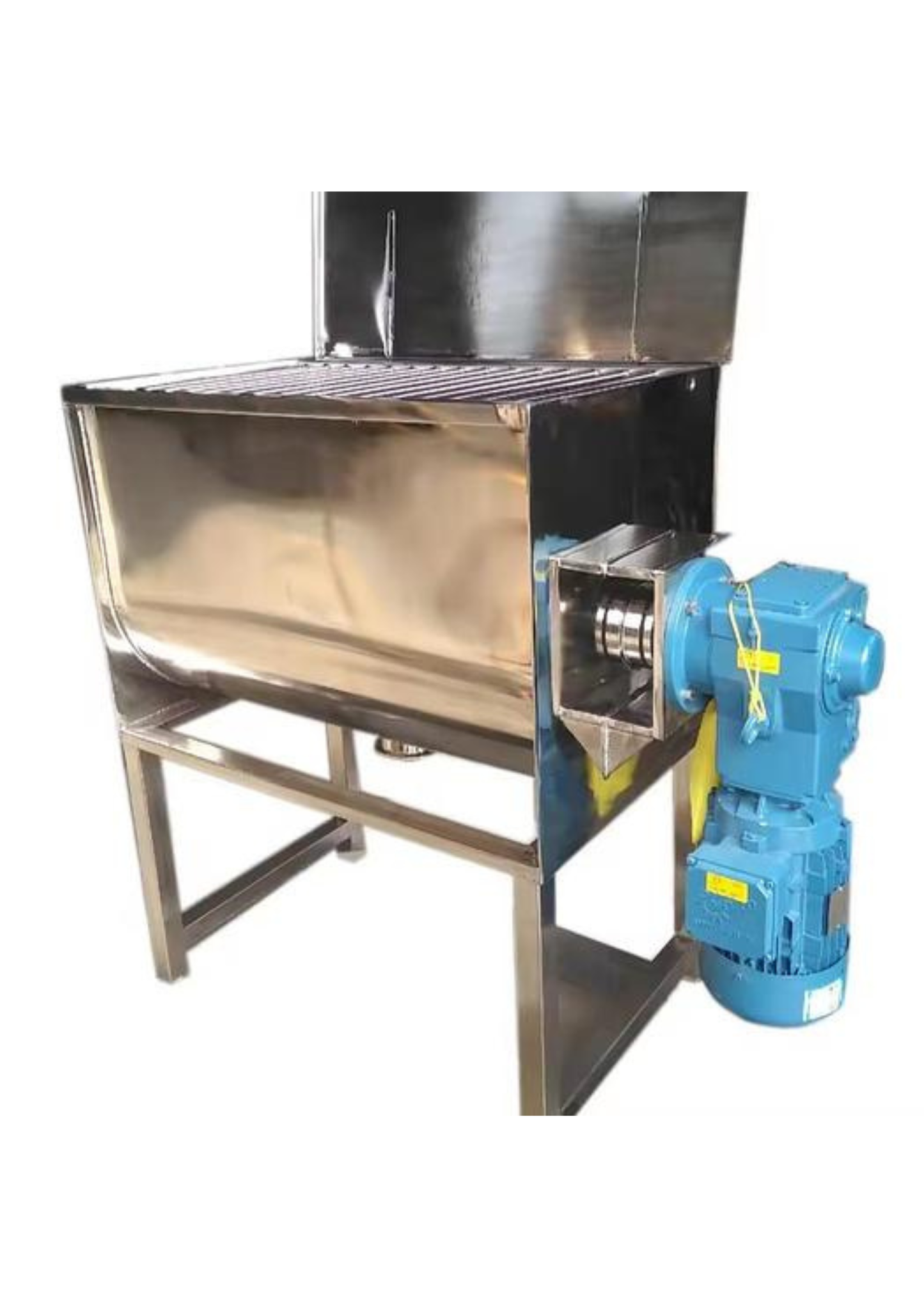

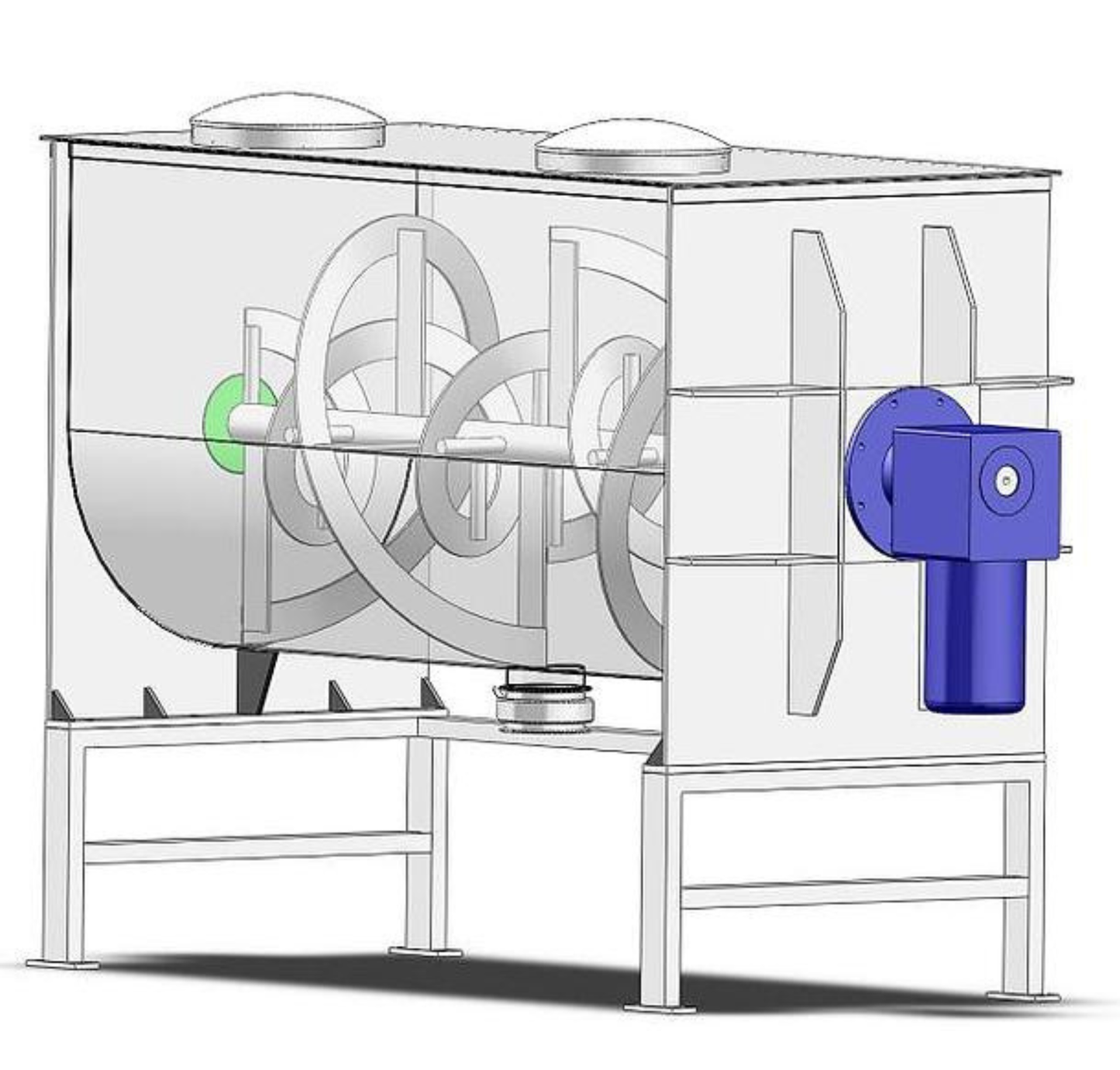

The Horizontal Ribbon Blender is a U-trough powder mixer built for nutraceutical, pharmaceutical, and food production. A twin helical ribbon agitator blends dry powders and granules quickly and uniformly, with a GMP-ready stainless build for repeatable, batch-to-batch results.
- Working capacities from 1 to 300 Cu.Ft (14–4,250 kg)
- Twin helical ribbon agitator for fast, uniform powder and granule blending
- 304/316 stainless steel contact parts, GMP-ready construction
- Center discharge with clamp butterfly valve
| Power option |
Best for |
| 110V · 60Hz |
Facilities on 110V / 60Hz supply |
| 220V · 50Hz |
Facilities on 220V / 50Hz supply |
Technical specifications
| Type |
Horizontal ribbon blender (powder mixer) |
| Mixing action |
Twin helical ribbon agitator, U-trough |
| Fill material |
Dry powders and granules |
| Working capacity |
1–300 Cu.Ft (14–4,250 kg) |
| Volume |
28.3–8,490 L |
| Motor |
1–50 H.P. (by model) |
| Ribbon speed |
30–54 rpm (by model) |
| Contact surfaces |
304 / 316 stainless steel, #4 finish |
| Drive |
Direct-type reducer drive, solid stainless shafts |
| Seals |
Split gland seals with air purge |
| Discharge |
Center discharge, clamp butterfly valve |
| Safety |
Safety grates with limit switches |
| Power |
110V/60Hz or 220V/50Hz (by variant) |
| Compliance |
GMP-ready |
| Warranty |
1-year warranty |
| Build |
Build-to-order; sizing recommendation on request |
Capacity range & dimensions
| Working Capacity (Cu.Ft) |
1 |
2.5 |
5 |
15 |
35 |
50 |
75 |
100 |
150 |
200 |
300 |
| Working Capacity (Kg) |
14 |
35 |
70 |
200 |
440 |
700 |
1000 |
1400 |
2000 |
2800 |
4250 |
| Volume (Liters) |
28.3 |
71 |
142 |
425 |
991 |
1416 |
2124 |
2770 |
4248 |
5663 |
8490 |
| Motor (H.P.) |
1 |
1.5 |
3 |
5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
| Ribbon Speed (RPM) |
54 |
54 |
46 |
36 |
36 |
32 |
30 |
30 |
32 |
30 |
30 |
| Overall Length (in) |
33 |
46* |
50 |
70 |
90 |
104 |
114 |
137 |
143 |
152 |
205 |
| Overall Width (in) |
16 |
19 |
23 |
32 |
38 |
41 |
48 |
51 |
59 |
65 |
77 |
| Overall Height (in) |
34 |
39 |
43 |
69 |
72 |
77 |
81 |
91 |
138 |
141 |
145 |
* Overall length for the 2.5 Cu.Ft size is pending confirmation. Gallon capacities omitted pending confirmation. All measurements are approximate.
Build a complete production line
The LeadLife advantage
- ✔ U.S. support — local engineers, spare parts, and fast response
- ✔ Installation & training available (paid service)
- ✔ Financing options available
- ✔ Stainless steel contact parts, GMP-ready build
- ✔ 1-year warranty
- ✔ Live demo available
Frequently asked questions
What batch sizes does the ribbon blender handle?
Working capacities range from 1 to 300 Cu.Ft (about 14–4,250 kg), selected to match your batch size.
What can it mix?
Dry powders and granules for nutraceutical, pharmaceutical, food, and chemical production.
What power options are available?
Two: 110V/60Hz and 220V/50Hz. Select the variant that matches your facility.
Is it GMP compliant?
It features GMP-ready stainless construction with 304/316 contact surfaces.
How is it discharged and cleaned?
Material discharges from the center through a clamp butterfly valve, and stainless contact surfaces with a #4 finish support straightforward cleaning.
Do you offer installation and training?
Yes — installation and operator training are available as a paid service, along with financing options.
Is the machine covered by a warranty?
Yes — it includes a 1-year warranty.
Do you provide U.S. support?
Yes — local engineers, spare parts, and fast response.
