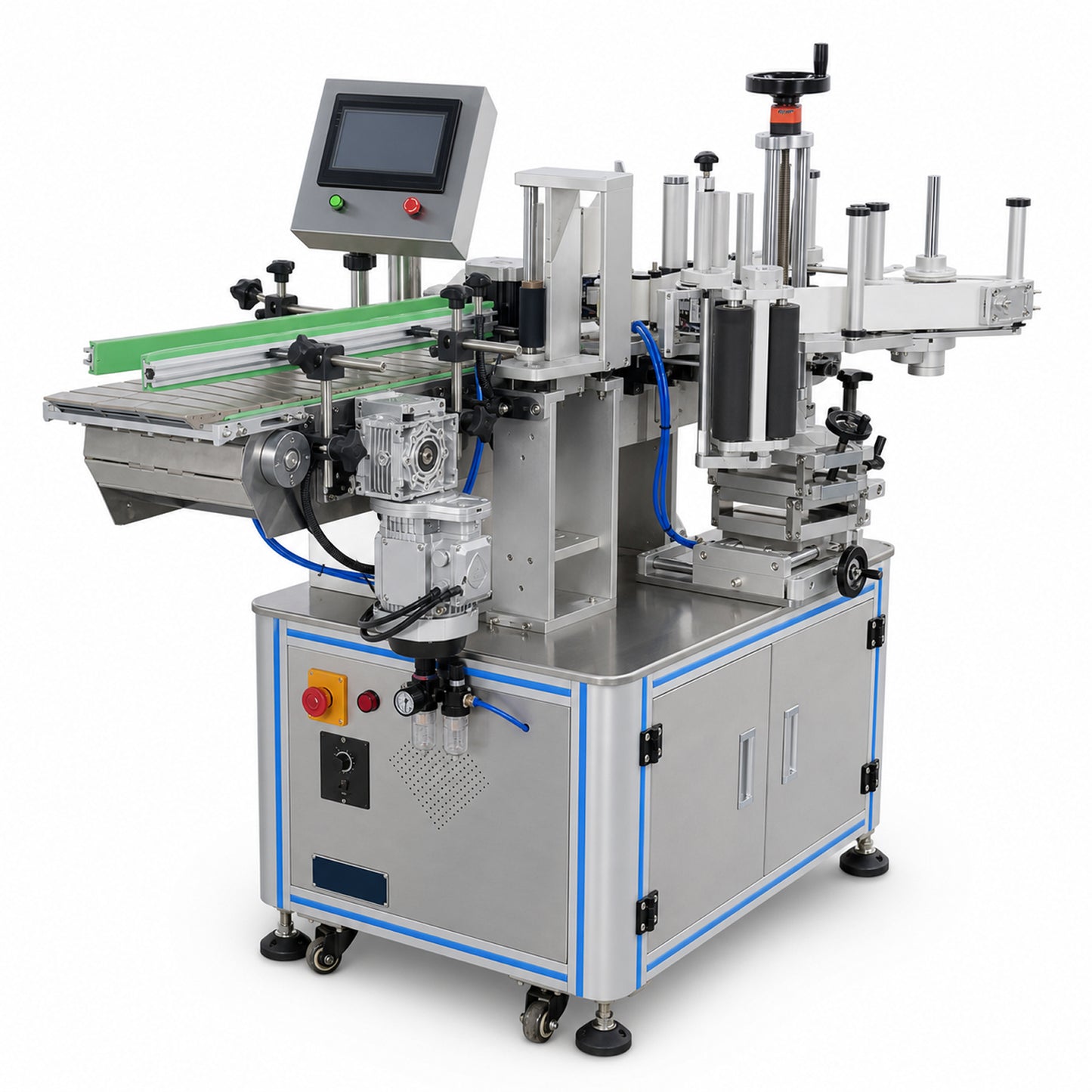

Leadlife LLA-A2 automatic front and back round bottle labeling machine front view

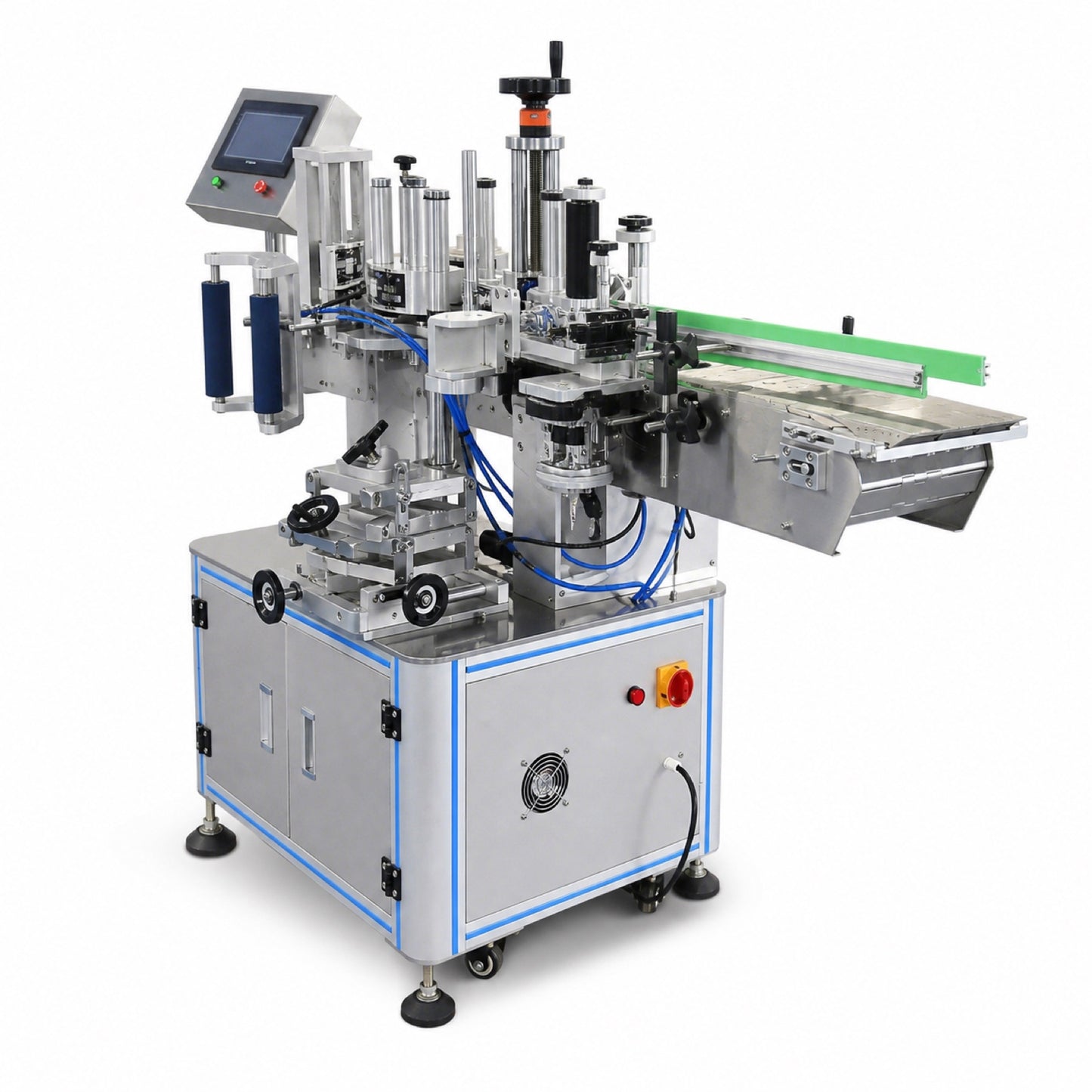

Leadlife LLA-A2 automatic front and back round bottle labeling machine opposite side view

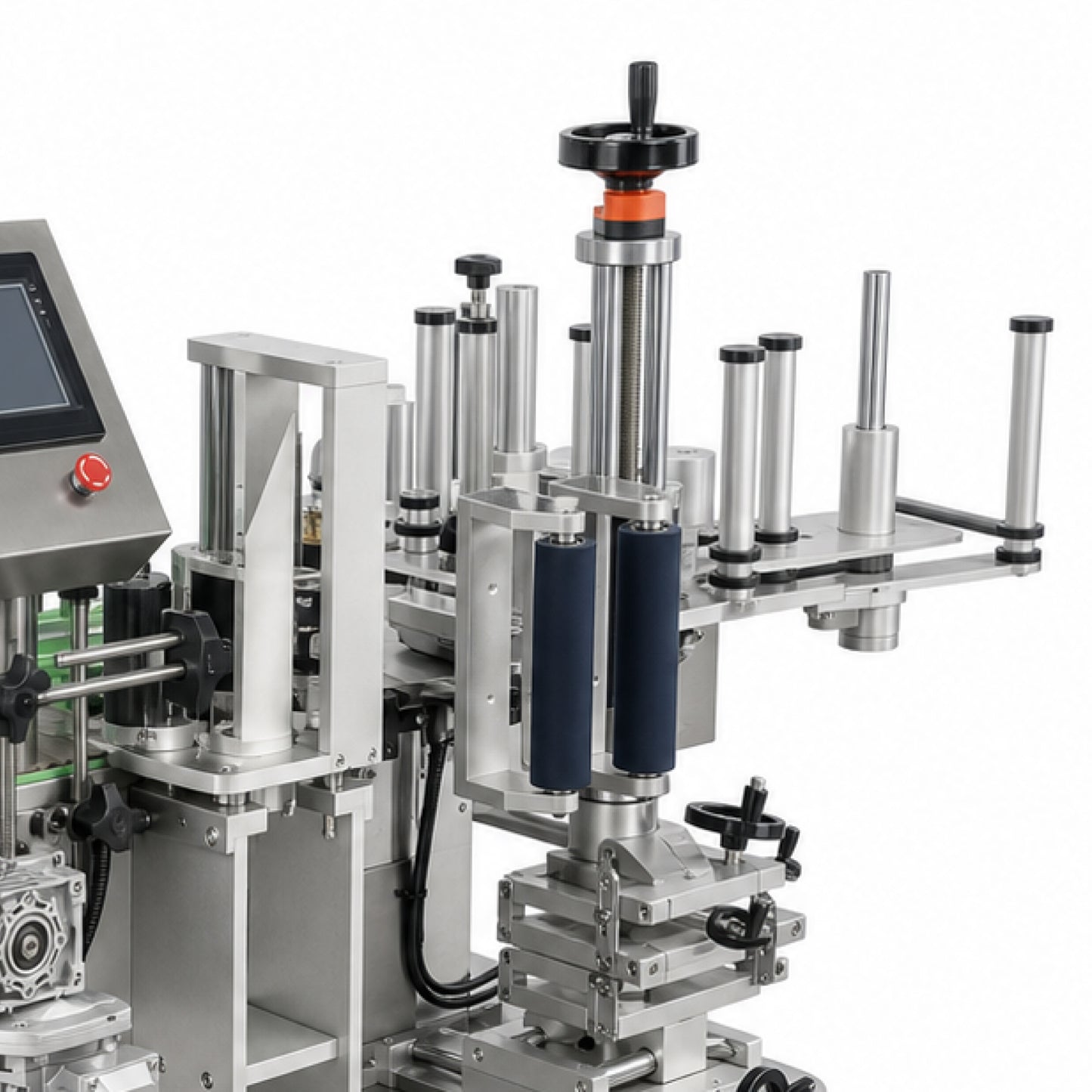

Leadlife LLA-A2 labeling machine bottle positioning fixture and pressing rollers

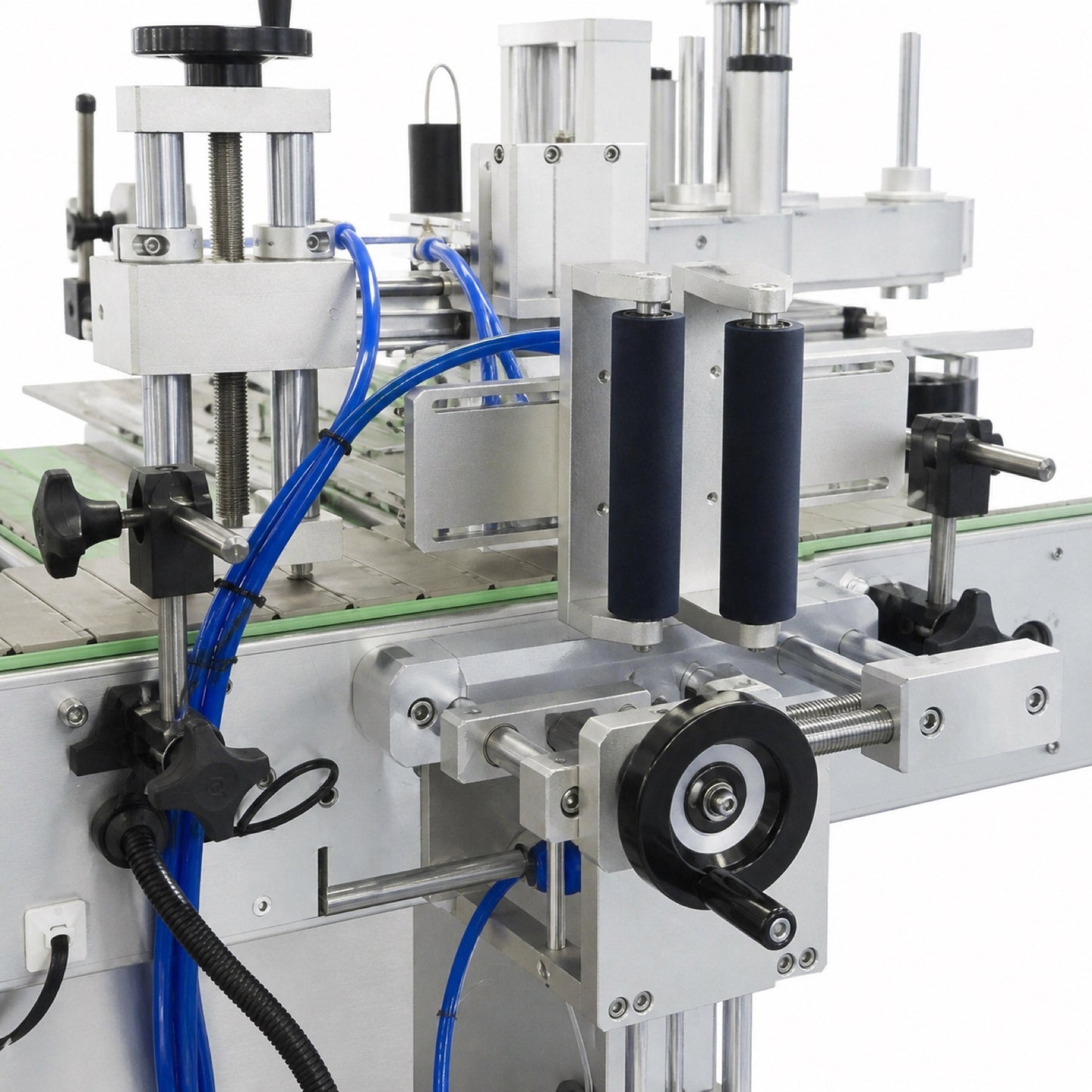

Leadlife LLA-A2 labeling machine labeling station above the bottle conveyor

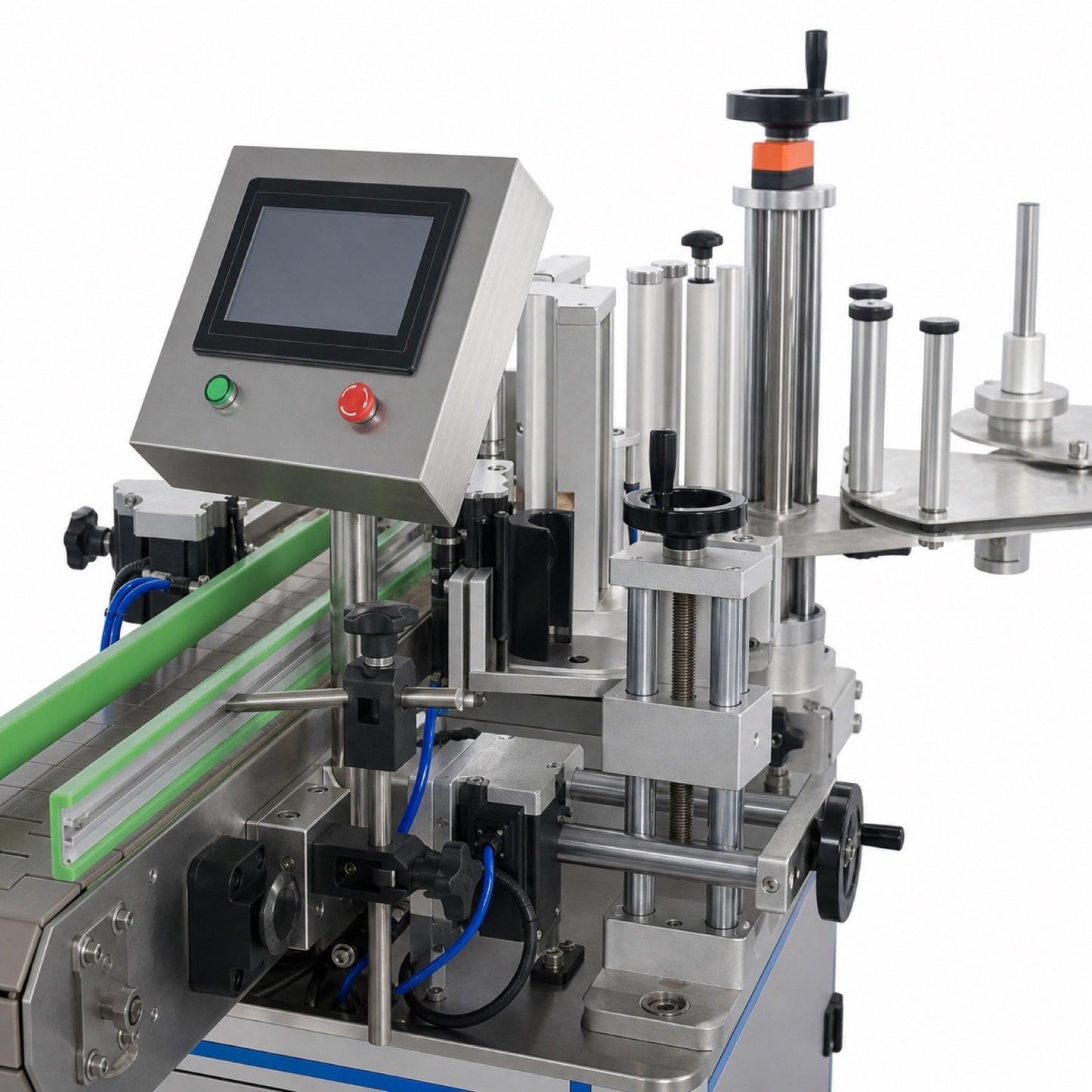

Leadlife LLA-A2 labeling machine touchscreen control panel and label reel

LLA-A2 Automatic Front & Back Round Bottle Labeling Machine

Name: LLA-A2 Automatic Front & Back Round Bottle Labeling Machine
Brand: LEADLIFE
SKU: LLA-A2

Book Live Demo

Request a Quote

We typically respond within one business day. Final pricing, lead time, availability, and shipping terms will be confirmed in the written quotation.

Call for quote +1 (323) 215-9729

After-Sales Support

California-based technical support
Free remote installation and operational training
Parts and troubleshooting support
On-site service available by appointment

On-site technical service is available by appointment, subject to technician availability, preliminary remote diagnosis, travel scheduling, and applicable service charges. Customers must provide complete photos and diagnostic videos before an on-site visit is scheduled.

View full after-sales terms →

Machine configuration support • Installation & technical support • Parts and service support • U.S.-based support • Quote-based equipment planning

Automatic Labeling • Front & Back • Inline Bottling Line

LLA-A2 Automatic Front & Back Round Bottle Labeling Machine

The LLA-A2 applies two self-adhesive labels to a round bottle — front and back — in the same pass, using a positioning function that sets where each label lands on the container.

It is a conveyor-fed inline machine with PLC control and a touchscreen operating system, built for supplement and nutraceutical lines whose bottles carry a separate front panel and back panel.

View Specifications Read FAQs Request a Quote

🔄

Front & Back in One Pass

Both labels applied at the same time as the bottle passes through.

🎯

Positioning Function

Sets where each label lands, so front and back stay registered.

📏

±1 mm Accuracy

Stated accuracy of ±1 mm, depending on product and label size.

🇺🇸

U.S. Support

Setup guidance and spare-parts support from the Leadlife team.

Best-Fit Applications

Round supplement and vitamin bottles

Bottles carrying separate front and back artwork

Cylindrical containers φ25–90 mm diameter

Containers 25–300 mm tall

Continuous production rather than small batches

Lines where label registration must stay consistent

How the LLA-A2 Runs

Filled and closed bottles are fed onto the machine’s conveyor.
The conveyor carries each bottle into the labeling station at a set spacing.
The positioning function sets the label position on the container.
Front and back labels are applied to the bottle at the same time.
Labeled bottles discharge to the next stage of the line.

Where Labeling Fits in Your Line

Capping

→

Induction Sealing

→

Labeling — LLA-A2

Line sequence shown is typical; actual configuration depends on your product and packaging goals.

Technical Specifications

Specifications are confirmed per order in your written quotation.

Leadlife Model

LLA-A2

Machine Type

Automatic vertical circular self-adhesive labeling machine, conveyor-fed

Labeling Method

Front and back labeling applied at the same time, with positioning

Container Type

Round bottles and cylindrical containers

Container Diameter

φ25–90 mm

Container Height

25–300 mm

Label Width

20–180 mm

Label Length

20–285 mm

Label Reel Inner Diameter

76 mm

Label Reel Outer Diameter

280 mm

Labeling Speed

Max 120 pcs/min (depends on product and label size)

Labeling Accuracy

±1 mm (depends on product and label size)

Control System

PLC control system with touchscreen operating system

Coding

Optional coding system or bar code printer

Construction

Stainless steel and aluminum alloy

Power Supply

220V 50Hz / 110V 60Hz

Dimensions (L×W×H)

1950 × 1200 × 1530 mm

Container and Label Compatibility

Confirm your bottle and both label panels against the ranges below, and send samples so we can verify the combination for your SKUs.

Container
Round bottles and cylindrical containers
Diameter φ25–90 mm
Height 25–300 mm

Label
Roll-fed self-adhesive labels
Width 20–180 mm
Length 20–285 mm

Label Reel
Inner diameter 76 mm
Outer diameter 280 mm

Non-cylindrical containers, or bottles outside these ranges, need a different machine configuration — tell us your format and we will point you to the right one.

Standard Configuration

Conveyor and bottle spacing

Positioning function

Front and back labeling stations

PLC control with touchscreen

Stainless steel and aluminum alloy construction

Optional coding system or bar code printer

Related Equipment

Pair the LLA-A2 with the rest of the Leadlife bottling range to build a complete line.

All Leadlife Labeling Machines — compare desktop and automatic labeling
Bottle Packaging Line — every stage from unscrambling to labeling
Capsule & Tablet Counting Machines
Capping Machine
Induction Sealing Machine
Bottle Unscrambler & Feeding Turntable

Leadlife Advantage

✔ U.S. support team

✔ Installation and operator training support

✔ Parts and troubleshooting support

✔ Machine and full-line configuration support

✔ Video demo available

✔ Quote-based equipment planning

Need Front and Back Labeling on Your Line?

Tell us your bottle diameter and height, both label sizes, and target output — we’ll confirm whether the LLA-A2 is the right fit.

Call 323-215-9729 Request a Quote Book Video Demo

Frequently Asked Questions

What makes the LLA-A2 different from a single-label machine?

It applies a front label and a back label to the same bottle in one pass, and includes a positioning function that sets where each label lands. A single-label machine wraps one label around the container instead.

What containers does the LLA-A2 label?

Round bottles and cylindrical containers from φ25–90 mm in diameter and 25–300 mm in height.

What label sizes and reels does it accept?

Roll-fed self-adhesive labels from 20–180 mm wide and 20–285 mm long, on reels with a 76 mm inner diameter and up to 280 mm outer diameter.

How fast is the LLA-A2?

Rated at a maximum of 120 pieces per minute, depending on product and label size. Because throughput varies with bottle diameter, label length and line setup, we recommend confirming a realistic rate for your SKUs during scoping.

Can it print batch and expiry codes?

A coding system or bar code printer is available as an option. Tell us during scoping whether you need coding applied during labeling.
