Capsule Filling Machines for Labs & R&D: How to Choose

Written by Ronnie Yu, Leadlife Equipment Team

Choosing a capsule filling machine for a lab is a different problem than choosing one for a production floor. Laboratories, formulation teams, R&D departments, pilot-production facilities, and small-batch supplement manufacturers work in small quantities, change formulations often, and need results they can repeat and document. This guide walks through how to select capsule filling equipment for that environment — by batch size, changeover frequency, capsule size, staffing, utilities, and your scale-up plans — and shows a clear equipment path from manual fillers up to semi-automatic machines. It is a selection guide, not a validated process: always confirm fill results through testing with your own formulation, and follow the machine manual and your facility procedures.

If you want the broad machine-class comparison first, see manual vs semi-automatic vs automatic capsule filling machines. This guide focuses on the lab and R&D use case.

What Labs and R&D Teams Need From a Capsule Filling Machine

Lab and formulation work puts different demands on equipment than steady production. The priorities that tend to matter most:

• Flexibility across capsule sizes — formulation work often spans several sizes, so easy size changes matter.
• Quick changeover and cleaning — frequent formulation switches mean cleaning between runs is a routine cost, not an occasional one.
• Repeatability — consistent setups make trial-to-trial data more comparable.
• Low waste on small batches — trials use small material quantities, so equipment suited to small runs avoids wasting costly actives.
• A scale-up path — equipment choices should anticipate the move from trials toward larger pilot and production runs.

Typical Lab, Formulation, Pilot-Batch, and Small-Production Use Cases

Capsule filling equipment shows up across the research-to-production range. Common use cases include:

• Formulation trials — testing blends, ratios, and capsule sizes during development.
• Small sample batches — producing limited quantities for internal review or evaluation.
• Stability and pilot batches — preparing larger, more representative runs as a formulation matures.
• Limited production — small commercial or pre-commercial runs before scaling up.

These are common, typical applications; the right equipment for each depends on your batch sizes, how often you change formulations, and where you are headed next.

Manual vs Compact Semi-Auto vs JTJ-V: A Decision Table

Most lab and small-production setups land on one of three tiers. This table compares them at a high level — use it to find your starting point, then confirm against your own batch sizes and workflow.

For a deeper comparison of the machine classes themselves, see manual vs semi-automatic vs automatic capsule filling machines, and for the timing of the manual-to-semi step, when to upgrade from manual to semi-automatic.

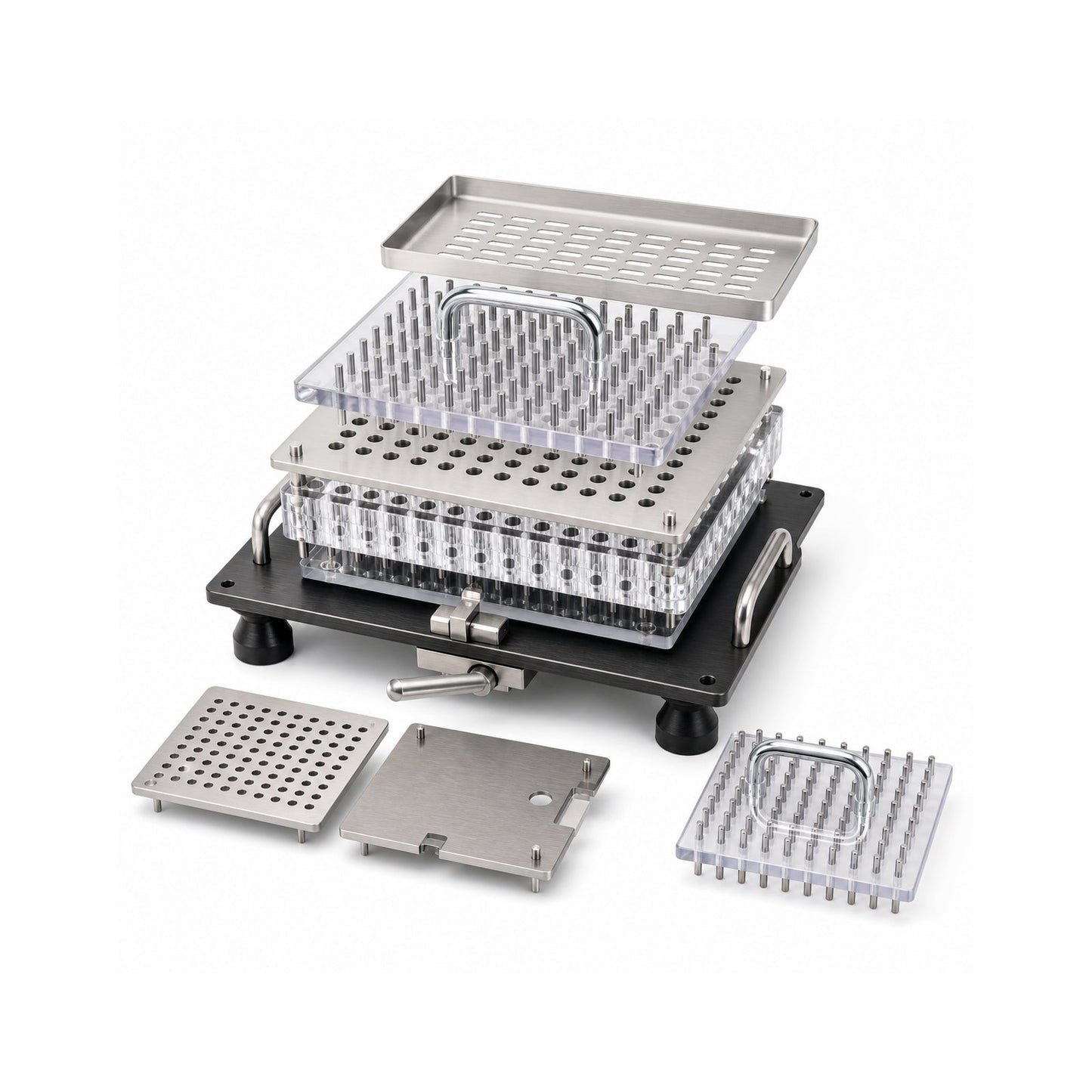

Tier 1 — Manual Capsule Fillers

Manual fillers are the natural starting point for most labs. They need no power, are simple to clean between formulations, and come in a range of plate sizes so you can match the machine to your batch size. Three representative levels cover most lab needs:

• 100-hole — suited to early formulation trials and very small sample batches, where you are filling a handful of capsules to test a blend.
• 400-hole — a balanced laboratory and pilot-batch option, giving more output per cycle while staying easy to handle.
• 800-hole — higher manual batch capacity for when trials grow, and a sensible last step before moving to semi-automatic equipment.

Between these, 187-hole and 600-hole options fill in the range (see the comparison table below). Browse the full lineup on the manual capsule fillers collection.

Tier 2 — LE Series Compact Semi-Automatic

When manual filling becomes the slow step — long sessions to fill a batch, or a need for more repeatable output — a compact semi-automatic machine is the natural next step without jumping to a full production line. The LE Series semi-automatic capsule filling machine is a small-scale, stainless-steel option designed for labs and small production environments: it adds powered assistance while keeping a compact footprint. It suits a lab that has outgrown hand filling but is not yet at pilot or commercial volume.

Tier 3 — JTJ-V Semi-Automatic Capsule Filling Machine

For growing labs, pilot facilities, and small commercial operations, the JTJ-V horizontal semi-automatic capsule filling machine steps up the output. Its nominal, model-rated output is in the range of 10,000–23,000 capsules per hour; actual throughput depends on capsule size, fill material, machine configuration, setup, and operator workflow, so treat that as a nominal capacity rather than a guaranteed rate. At this tier, a few practical points matter more than at the manual level:

• Output and operators — higher output needs a trained operator and a steadier production rhythm.
• Utilities and footprint — it is powered equipment with a larger footprint and setup than a bench filler.
• Cleaning and change parts — more components mean more to clean between formulations and size-specific change parts to swap; factor changeover time into planning.

See the cleaning SOP for the changeover cleaning side, and the maintenance guide for upkeep.

Tier 4 — Automatic Capsule Filling Machines (Scale-Up Path)

Fully automatic machines are the scale-up destination once demand is steady and higher-volume production is the goal. They are usually a later-stage decision rather than a lab starting point. When you reach that stage, the automatic capsule filling machine buyer guide covers output classes, power, tooling, and the model-by-model comparison — this lab guide points you there rather than repeating it. If your lab or pilot facility is scaling toward contract manufacturing or multi-customer production, see our contract manufacturing equipment guide for that specific context.

Batch Size and Daily Output Planning

Size the machine to your realistic batch and daily output, not a peak. Estimate how many capsules a typical trial or run needs, how often you run, and how much time changeover and cleaning add between formulations — effective output is always below the nominal figure. In a lab, frequent changeovers often matter more to real throughput than raw machine speed. For a deeper look at output figures by machine, see the capsule filler output guide.

Capsule Size and Size-Specific Tooling

Labs often run several capsule sizes across different formulations, and each size uses size-specific tooling — a plate on a manual filler, or change parts on a semi-automatic machine. If you expect to run multiple sizes, budget for the additional plates or change-part sets and factor changeover time into your planning. Capsule size itself is driven by your fill: see the capsule size chart (000–5) for dimensions and approximate capacity, and browse shells on the empty capsules collection.

Formulation Changeovers and Cleaning Considerations

Changeover is where lab work differs most from steady production. Because formulations change often, cleaning between runs is a routine, recurring task — and how easily a machine cleans and swaps parts directly affects how much you can get done in a day. Weigh cleaning and changeover ease alongside output when you choose. For the step-by-step cleaning side, see the capsule filling machine cleaning SOP.

Powder Flow, Density, and Fill-Weight Variability

Fill results depend on the powder as much as the machine, which matters especially in R&D where blends are still being developed. Actual performance depends on capsule size, powder density, particle size, flowability, tamping or dosing setup, operator technique, machine configuration, and operating environment. The practical step is the same at every tier: run test fills of your actual blend and confirm fill weight and consistency before committing to a size or a production run. Treat any capacity or output figure as approximate until you have confirmed it through testing with your own formulation.

Utilities, Footprint, Staffing, and Facility Readiness

Match the equipment to your space and team. Manual fillers need only bench space and a hands-on operator. Compact semi-automatic machines add power and a modest footprint. The JTJ-V is powered equipment needing more space, setup, and a trained operator. Confirm the power configuration for any powered machine against your facility, and leave room for loading, cleaning, and service. Being “production-ready” here means being operationally set up to run repeatable batches at your scale — it is a practical readiness point, not a regulatory or quality-system claim.

Documentation and Repeatability for Controlled Production

Repeatable setups and simple records make lab work more defensible and easier to scale. Keeping notes on machine settings, capsule sizes, cleaning, and results turns one good run into a repeatable process. Documentation and repeatability are one part of a controlled production system — facility procedures, sanitation, quality controls, and operator practices determine overall compliance, not the equipment alone. The maintenance guide and cleaning SOP both cover record-keeping that supports this.

Scale-Up Path: From Formulation Trials to Commercial Production

The clearest way to plan is to see the tiers as a path: manual fillers for trials and samples, a compact semi-automatic like the LE Series when manual throughput limits you, the JTJ-V for pilot and small commercial, and automatic machines when volume is steady and high. You do not have to buy the whole path at once — match equipment to your current stage and upgrade as volume grows. For how the production stages connect, see the capsule production workflow; for launching a small operation, see how to start capsule production and the supplement manufacturing startup checklist.

Recommended Equipment by Production Stage

Common Buying Mistakes for Lab and R&D Users

• Buying automatic too early — tying up budget in high-volume equipment that sits idle during development.
• Ignoring changeover time — choosing on raw speed while frequent formulation switches quietly eat the real throughput.
• Planning for one capsule size only — then needing extra tooling sets later; plan for the sizes you actually run.
• Skipping test fills — assuming a capacity figure instead of confirming fill weight with the actual blend.

Frequently Asked Questions

What capsule filling machine is best for a lab or R&D team?

It depends on batch size and how often you change formulations. Most labs start with a manual filler for trials and samples, move to a compact semi-automatic like the LE Series when manual throughput limits them, and step up to the JTJ-V for pilot and small commercial runs. For the machine-class comparison, see the manual vs semi-automatic vs automatic guide.

Should R&D use a manual or semi-automatic filler?

Early formulation work is usually well served by a manual filler — simple, flexible, and easy to clean between blends. Semi-automatic makes sense once manual filling becomes the bottleneck or you need more repeatable output.

How many capsule sizes should a lab machine handle?

As many as your formulations require, using size-specific tooling for each. If you run several sizes, budget for the extra plates or change-part sets and factor changeover time in. See the capsule size chart for size selection.

How much does changeover matter in a lab setting?

A lot — because formulations change often, cleaning and part swaps between runs are a routine cost. Ease of changeover and cleaning often affects real daily output more than raw machine speed.

How do I plan for scale-up?

Treat the tiers as a path: manual for trials, compact semi-auto when manual limits you, JTJ-V for pilot and small commercial, and automatic for steady high volume. Match equipment to your current stage and upgrade as volume grows — see the automatic buyer guide for the scale-up destination.
