400-Hole Capsule Filling Machine (P Series)
Overview
Built for small-batch production and R&D teams that need more throughput than a 100-hole tray, the P Series 400-hole manual capsule filler aligns, fills, and joins capsules efficiently with food-grade plates and a removable spill guard. Choose models for size 00 or 0 vitamin and nutraceutical capsules.
Specs at a glance
400-Hole Capsule Filler P Series Specifications
| Item |
Value |
| Capacity |
400 capsules per cycle |
| Supported Sizes |
00, 0 or 1 (select model) |
| Series |
P Series (baseline model; standard tolerances) |
| Materials |
Food-grade plastic with stainless fasteners |
| Spill Control |
Removable spill guard for cleaner loading |
| Typical Use |
Small batches / pilots / lab & R&D / home formulators |
| Cleaning |
Hand wash; do not use dishwasher or solvents |
| Warranty |
12 months |
| Capsules |
Works with standard gelatin or HPMC capsules — buy empty capsules
|
What’s included

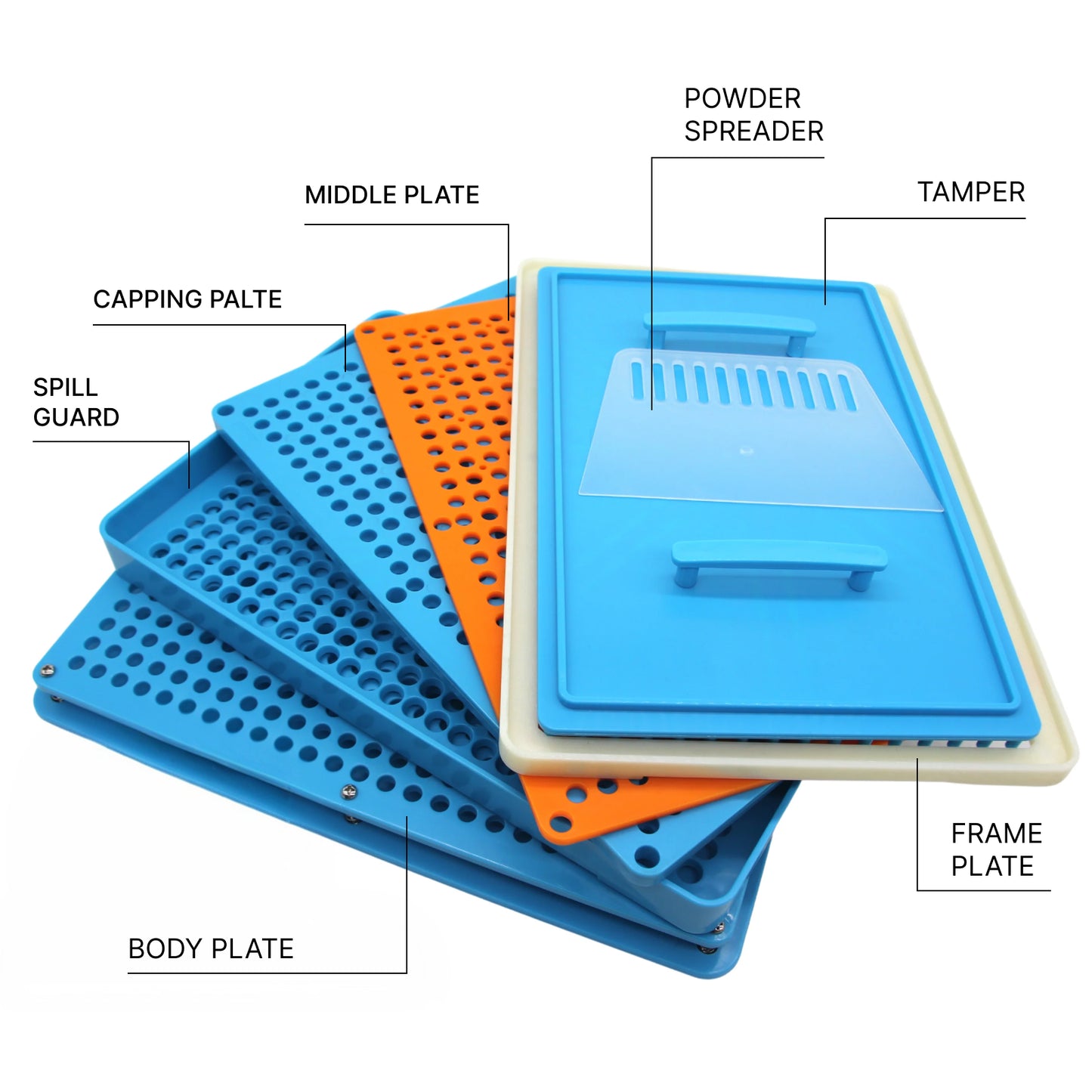

- 400-hole filler base & alignment plates (size-specific: 00, 0 or 1)
- Removable spill guard
- Tamper & spreader card
- Quick-start PDF & short setup video
- Email support from the Leadlife team
Key features
-
Higher throughput: 400 capsules per cycle to speed up small-batch runs
-
Cleaner fills: spill guard helps reduce loss and dust
-

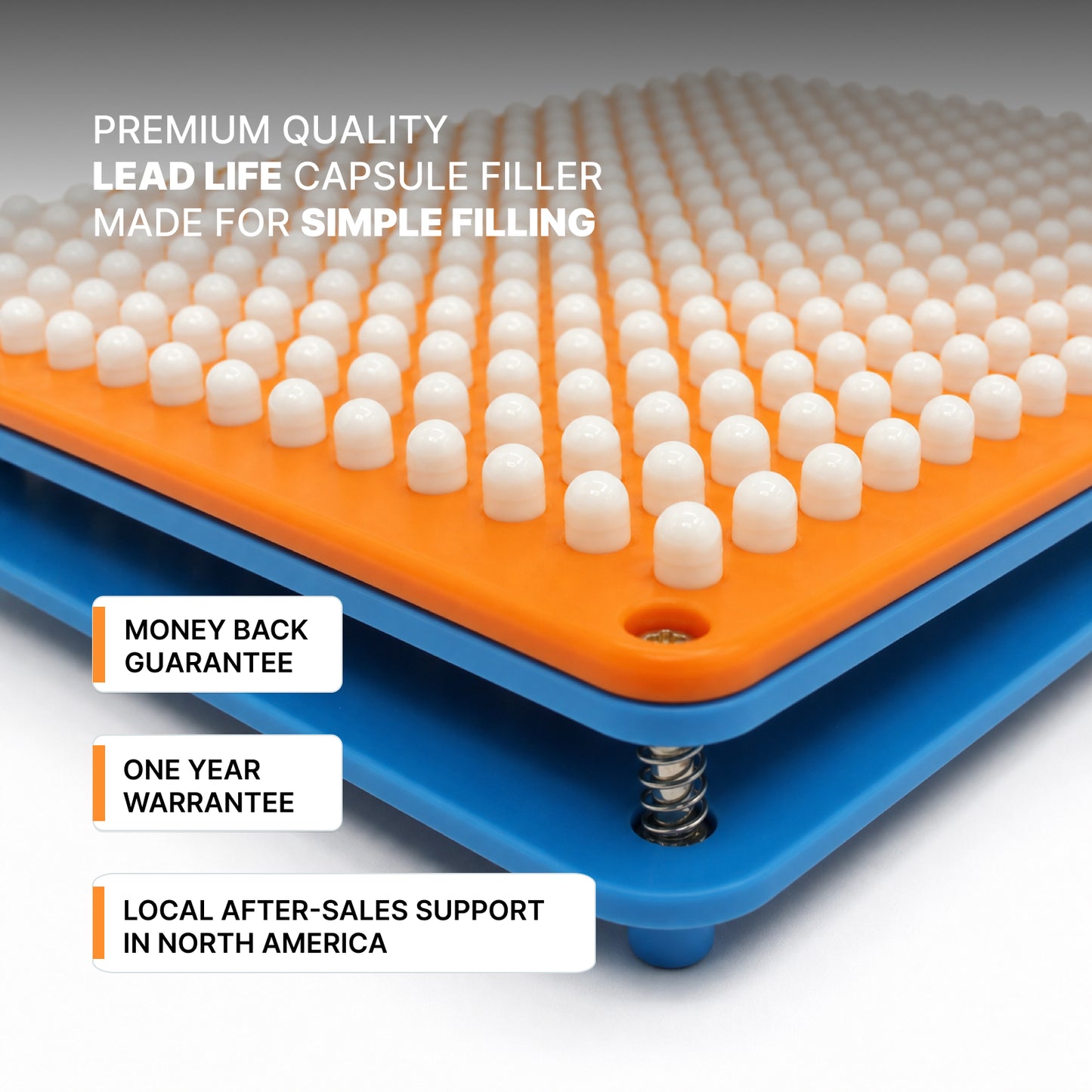

Simple workflow: clear markings and smooth surfaces for easy alignment
-
Durable build: food-grade plates and stainless hardware
-
Low learning curve: train operators in minutes
Helpful comparison
P Series vs i Series
| Feature |
P Series (this model) |
i Series |
| Tolerances |
Standard tolerances for everyday use |
Tighter tolerances for higher precision & repeatability |
| Throughput |
Operator-dependent; suitable for small-batch runs |
Operator-dependent; optimized plate alignment |
| Best for |
Entry-level / occasional production / value |
Labs & frequent small-batch work needing higher accuracy |
| Cost |
Lower investment |
Higher, with performance advantages |
Need semi-automatic output for 10k–25k caps/hr? See JTJ-V Semi-Automatic Capsule Filler.
FAQ
Which sizes does this model support?
Choose a size-specific plate for 00,0 or 1. Each plate fits one size.
How fast can I run?
Throughput is operator-dependent. The 400-hole layout significantly reduces cycles versus 100-hole trays.
What capsules work best?
Standard gelatin or HPMC capsules matched to your selected size. You can shop compatible empty capsules here.
What’s the difference between P Series and i Series?
P Series is the baseline value model with standard tolerances. The i Series uses tighter tolerances, improved alignment plates, and a stiffer frame for higher precision and repeatability.
Cleaning & care?
Hand wash with mild soap and water. Do not use dishwasher or harsh solvents.
Is the spill guard removable?
Yes. The guard helps reduce powder loss and can be removed for cleaning.
