Capsule & Tablet Counting Machine Buyer Guide: How to Choose the Right Counter

By Ronnie Yu, CEO, Leadlife Technology Company LLC

Choosing a counting machine is usually the moment a supplement brand stops finishing bottles by hand. The decision is rarely about whether to automate counting — hand counting stops keeping up on its own — but about which class of counter matches your bottles per minute, your products, and the line you're building around it. This guide walks through that selection: how electronic counters work, semi-automatic versus automatic, how to size one, what changes between capsules, tablets, and softgels, and what actually drives the quote.

How Electronic Counting Machines Work

An electronic counting machine places a set number of capsules or tablets into each bottle. Product feeds from a bulk hopper — typically across vibrating channels or a rotary system — past photoelectric sensors that register each piece as it drops toward the container. When the preset count is reached, the machine indexes to the next bottle. It replaces hand counting with a repeatable, sensor-verified count, and on well-designed machines the sensing is built to cope with real production conditions: infrared recognition that registers transparent softgels and reads through the dust that uncoated tablets shed over a long run.

Not every counter in this class works the same way. Alongside sensor-based counting, there are simpler semi-automatic plate (mold) counters, where a slide plate with a fixed hole pattern is designed to portion a preset count per cycle — the mold is swapped to match product size and target count. Both approaches are legitimate; which one fits you depends on volume and flexibility, which is the next section.

Two things a counter is not: it doesn't fill capsules, and it doesn't inspect them. Counting is a finishing step that sits between production and packaging.

Semi-Automatic vs Automatic Counting Machines

The practical decision framework has three tiers.

Semi-automatic plate counting portions a preset count per cycle using a changeable counting mold, with the operator handling bottles. The MK-800 works this way: it counts capsules, tablets, softgels, and granules into bottles or bags at a nominal 12–26 bottles per minute, with count plates configured for the product — for example, 100 size-00 capsules per cycle — across a 5–100 count-per-bottle range. It's the natural first machine for a team leaving hand counting: compact (48 kg, benchtop-scale footprint), single-phase power, stainless product-contact parts.

Semi-automatic electronic counting uses sensor-based counting with an operator or simple gating handling bottles. The BS Series spans three models with nominal outputs from 200–800 pieces per minute up to 2,000–3,500 pieces per minute, adjustable from 1 to 9,999 pieces per bottle without changing spare parts — the count is a setting, not a mold. The BS-C adds tool-less changeovers, parameter presets, and a touch panel with batch counts and error alarms, and most models run on standard power with no compressed air. This tier fits growing brands that need count flexibility across SKUs — different bottle counts, mixed capsule and tablet products — without committing to a full line.

Automatic multi-channel counting feeds product continuously from hopper to bottle across multiple vibratory channels under PLC control, and is built to be the first machine in an inline bottling system rather than a standalone station. Channel count is configured to your output target, and the counter pairs directly with capping, induction sealing, and labeling downstream. As a rule of thumb from the BS-C comparison: semi-automatic means lower capital cost at moderate throughput; fully automatic means higher capital cost but the lowest cost per bottle at sustained volume.

The honest dividing lines: if your team still touches every bottle and volumes are small-batch, plate counting is cheap and dependable. If SKU variety and count flexibility matter more than raw speed, electronic semi-automatic is the workhorse tier. If counting has become the bottleneck for a line that runs most days, you're sizing an automatic counter — and probably a line around it.

How to Size a Counting Machine for Your Production

Sizing starts from bottles per minute, not pieces per minute — and the two diverge quickly. A counter rated in pieces per minute finishes fewer bottles as the count per bottle rises: at a nominal 2,000–3,500 pieces per minute, a 100-count bottle works out to roughly 20–35 bottles per minute; a 30-count bottle, proportionally more. (Illustrative arithmetic from nominal ratings — actual output depends on product size, feeding behavior, and setup.)

Work through five inputs:

Sustained production volume. Size against the volume you actually run week after week, with headroom — not a launch-month spike.

Count per bottle across your SKUs. A machine that's comfortable at 60-count may be the bottleneck at 300-count. If counts vary widely, the 1–9,999 adjustable range of an electronic counter matters more than peak speed.

Bottles per minute at your hardest SKU. Convert: (pieces per minute) ÷ (count per bottle) for each SKU, then size for the slowest result you must sustain.

Upstream and downstream pace. The counter should match the filler feeding it and the capping and labeling behind it. On an automatic line, the counter is the first and pace-setting stage — it effectively sets line speed, which is why it's normally the first machine scoped when planning a complete line.

Room for growth. Multi-channel automatic counters scale by channel configuration; if you expect volume to double, that conversation belongs in the initial scoping, not the second purchase.

All rated figures on any counter are nominal. Treat them as planning inputs and confirm realistic bottles-per-hour for your product and count preset during scoping.

Counting Capsules, Tablets and Softgels

Product type narrows the field more than buyers expect.

Capsules. For capsules, the main checks are capsule size, target count per bottle, and compatibility with the machine's feeding and counting system. Both plate-style and electronic Leadlife counters are designed for capsule applications within their stated size and operating ranges — the MK-800's example counts run from 100 pieces per cycle for size 00 to 150 for size 1, with the counting mold changed to match capsule size.

Tablets introduce dust and diameter limits. Uncoated tablets shed powder that can blind optical sensors, which is why anti-dust sensing design matters — the BS Series' infrared system is specified to keep recognizing product through accumulated tablet dust. Check the physical envelope too: BS models cap out at 12, 20, or 23 mm tablet diameter depending on the model, and plate counters specify tablet thickness ranges.

Softgels. For softgels, confirm that the sensing system is designed for the specific product. Transparent softgel recognition is explicitly supported on the BS Series, so this is a specification to verify rather than assume.

Gummies and other soft or irregular pieces are configuration-dependent territory: the automatic multi-channel counter lists gummies and candy pieces among its applications, but suitability for a specific product is confirmed during scoping — shape, surface, and flowability decide it. If one machine must run capsules and tablets across SKUs, confirm changeover: tool-less parts and presets (BS-C) make mixed production practical.

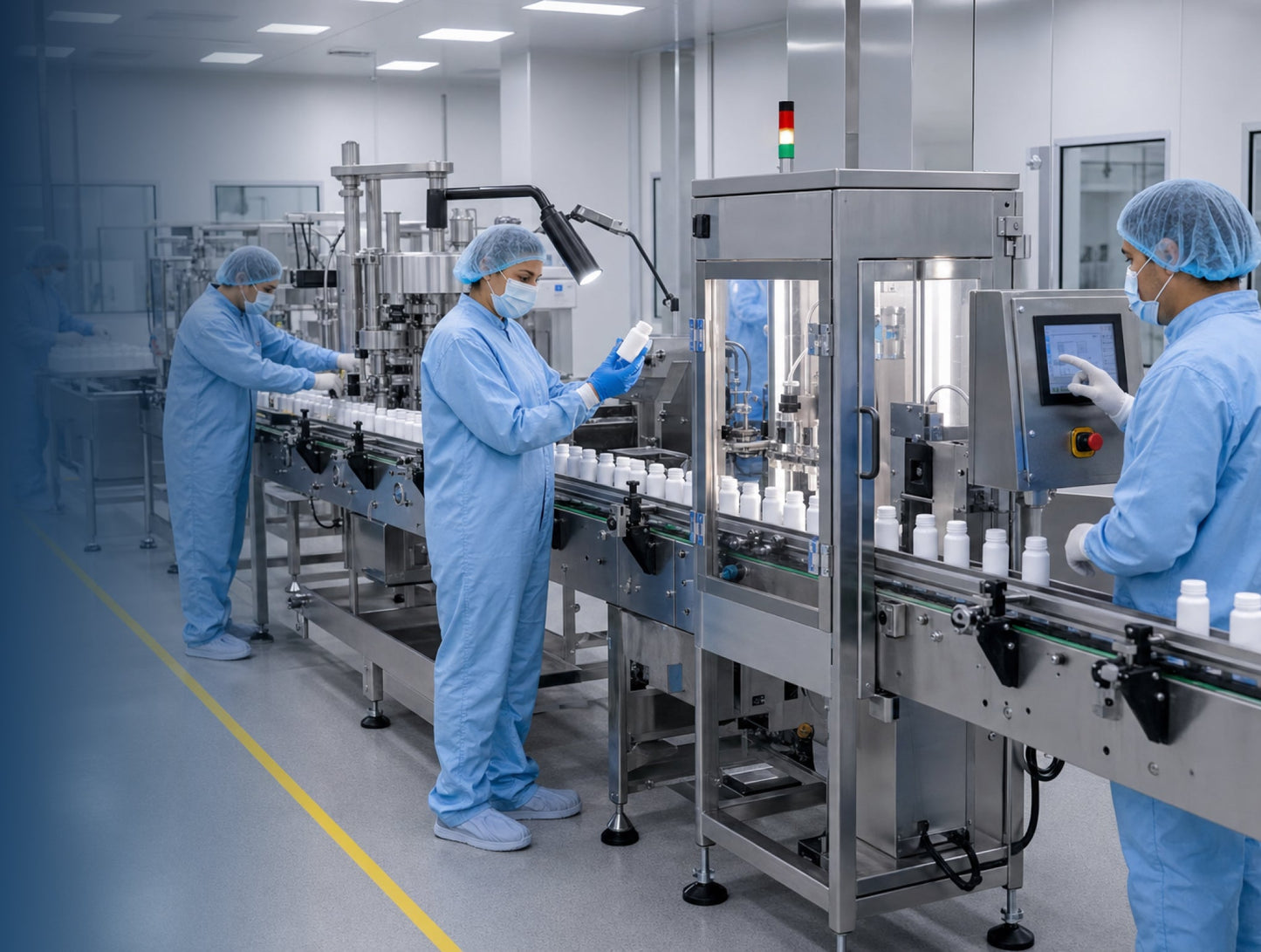

How the Counter Fits Into a Bottling Line

Briefly, because line design is its own subject: counting sits after filling and any polishing or inspection, and before capping, sealing, and labeling. On an integrated line the sequence typically runs bottle feeding → counting with rejection of miscounted bottles → optional desiccant or cotton inserting → capping → induction sealing → labeling → outfeed. A standalone semi-automatic counter drops into that flow later as stations are added; an automatic counter is scoped with the line from the start. For stage-by-stage planning — pace-matching, station selection, layout — use the capsule counting and bottling machines planning guide and the wider capsule production workflow; this guide's job is choosing the machine, not designing the line.

What Affects Counting Machine Cost

Counting machines are quoted to configuration, so the useful question is what moves the number:

• Automation class. The largest step change: semi-automatic stations carry lower capital cost; automatic inline counters cost more and repay it in cost per bottle at sustained volume.
• Channel count and rated speed. On multi-channel machines, throughput is bought in channels — the configuration is sized to your output target.
• Controls. Basic counters with preset counts sit below PLC/touchscreen-HMI machines with recipe presets, totalizers, and alarms.
• Product-contact materials. Stainless options (SS304 vs SS316L) are specified to your compliance needs.
• Integration and rejection. A standalone station is one price; adding miscount rejection, conveyors, and pace-matching with capping, sealing, and labeling stages is a line conversation.
• Documentation. The BS-C product documentation states that IQ/OQ documentation is available on request; confirm documentation requirements and availability for the specific model during quotation.
• Application requirements. Transparent softgels, dusty uncoated tablets, wide count ranges, or unusual bottle formats all shape the spec.

To get a meaningful quote, bring four numbers: product type and approximate piece size, target count per bottle, bottle sizes, and target hourly output.

Leadlife Counting Machines at a Glance

Browse the full range of capsule and tablet counting machines for bottle filling, or see counting integrated end-to-end in the automatic counting and bottling line and the broader bottling and packaging line solutions.

Frequently Asked Questions

How does an electronic capsule counter work?

Product feeds from a hopper past sensors that register each piece until a preset count is reached, then that count drops into the bottle. Plate-style semi-automatic counters portion the count mechanically with a changeable mold instead.

Semi-automatic or automatic — which should I buy first?

If an operator still handles every bottle and volumes are small-to-mid batch, a semi-automatic station (plate or electronic) is the lower-cost fit. Move to an automatic multi-channel counter when counting is the bottleneck on a line that runs at sustained volume — that's where the higher capital cost converts to the lowest cost per bottle.

How do I size a counter?

Convert rated pieces per minute into bottles per minute at your highest count-per-bottle SKU, check it against the filler ahead and the capping/labeling behind, and leave headroom for growth. Rated figures are nominal; confirm realistic output for your product during scoping.

Can one machine count both capsules and tablets?

Yes — the machines above handle capsules, tablets, and softgels, within each model's size limits. For mixed production, prioritize adjustable counts and fast changeover; for softgels, confirm transparent-product recognition; for uncoated tablets, confirm anti-dust sensing.

Does a counter replace inspection?

No. Counting fills bottles to a target quantity; it doesn't check the capsules themselves. Inspection or sorting is a separate, optional stage earlier in the line, and integrated lines add rejection of miscounted bottles.

Plan Your Counting Stage

Tell us your product type and piece size, target count per bottle, bottle sizes, and target hourly output, and we'll help you match a counting machine — or a counting-to-labeling line — to your production, with U.S.-based support, installation guidance, and operator training. Request a machine quote.

---
